BOSCH

Bosch 0986479108 Brake Disc

SKU: 0986479108

Your selected vehicle

Only 2 left

Low inventory - Hurry! — Order by 17:00 for same-day dispatch

£38.66 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

RENAULT

MEGANE Scénic (JA0/1_)

Description	Cylinder Capacity	Horse Power	Year
1.9 D (JA0J)	1870 CCM	64 HP	03/1997 - 09/1999
1.9 dTi (JA0N)	1870 CCM	98 HP	04/1997 - 09/1999
1.6 16V (JA0B, JA04, JA11, JA00)	1598 CCM	107 HP	04/1998 - 10/1999

MEGANE Scénic VAN (JA0/1_)

Description	Cylinder Capacity	Horse Power	Year
1.9 DTi (JA0N)	1870 CCM	98 HP	04/1997 - 09/1999

MEGANE I Grandtour (KA0/1_)

Description	Cylinder Capacity	Horse Power	Year
1.9 dTi (KA0N)	1870 CCM	98 HP	03/1999 - 02/2001
1.6 16V (KA0B, KA04, KA11)	1598 CCM	107 HP	03/1999 - 08/2003
1.9 dCi (KA05, KA1F)	1870 CCM	102 HP	02/2001 - 08/2003
1.9 dTi (KA1U)	1870 CCM	80 HP	02/2001 - 08/2003
1.8 16V (KA0S, KA12, KA1A, KA1M, KA1R)	1783 CCM	115 HP	01/2001 - 08/2003

SCÉNIC I MPV (JA0/1_, FA0_)

Description	Cylinder Capacity	Horse Power	Year
1.4 16V (JA0D, JA1H, Ja0W, JA10)	1390 CCM	95 HP	09/1999 - 08/2003
2.0 16V (JA1D, JA17)	1998 CCM	140 HP	09/1999 - 08/2003
1.9 dTi (JA0N)	1870 CCM	98 HP	09/1999 - 08/2003
2.0 16V (JA1B, JA1D, JA0C)	1998 CCM	139 HP	07/2000 - 08/2003
1.9 dCi (JA05, JA1F)	1870 CCM	102 HP	09/1999 - 08/2003
1.9 dTi (JA1U)	1870 CCM	80 HP	02/2001 - 08/2003
1.8 16V (JA12, JA1R, JA1M, JA1A)	1783 CCM	115 HP	01/2001 - 08/2003
1.6	1598 CCM	102 HP	03/2001 - 08/2003
1.6 BiFuel	1598 CCM	102 HP	03/2001 - 08/2003
1.6 BiFuel (JA04)	1598 CCM	107 HP	09/1999 - 04/2001
1.6 (JA00, JA16, JA15, JA19, JA1V, JA2B, JA2C, JA0B,...	1598 CCM	107 HP	09/1999 - 09/2003

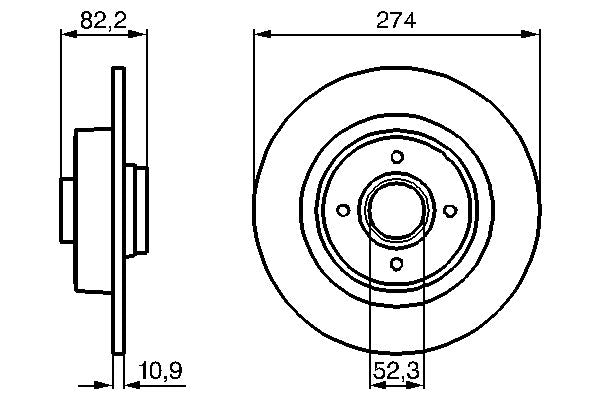

The Bosch 0986479108 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 274 mm outer diameter, 11 mm brake disc thickness, 9.5 mm minimum thickness, and solid disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Outer Diameter [mm] : 274

Brake Disc Thickness [mm] : 11

Minimum thickness [mm] : 9.5

Height [mm] : 82.1

Bolt Hole Circle Ø [mm] : 100

Brake Disc Type : solid

Centering Diameter [mm] : 61.9

Number of Holes : 4

Surface : Oiled

fulfils ECE standard : ECE-R90

Supplementary Article/Supplementary Info 2 : without wheel bearing

Supplementary Article/Supplementary Info 2 : without integrated magnetic sensor ring

BLUE PRINT : ADR164324
BORG & BECK : BBD5721S
BREMBO : 08.A238.17
BREMBO : 08.A238.47
BREMBO : 08.B650.17
FEBI BILSTEIN : 24290
FTE : 9071387
FTE : 9081155
HELLA : 8DD 355 112-211
MEYLE : 16-15 523 0003
MEYLE : 16-15 523 4113
MINTEX : MDC1566
TEXTAR : 92141403
TRW : DF4272
TRW : DF4272BS
VALEO : 675401
