BOSCH

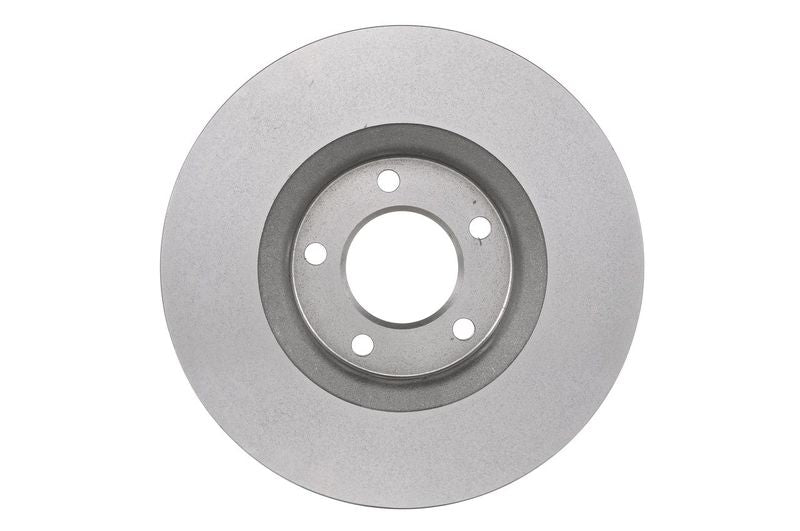

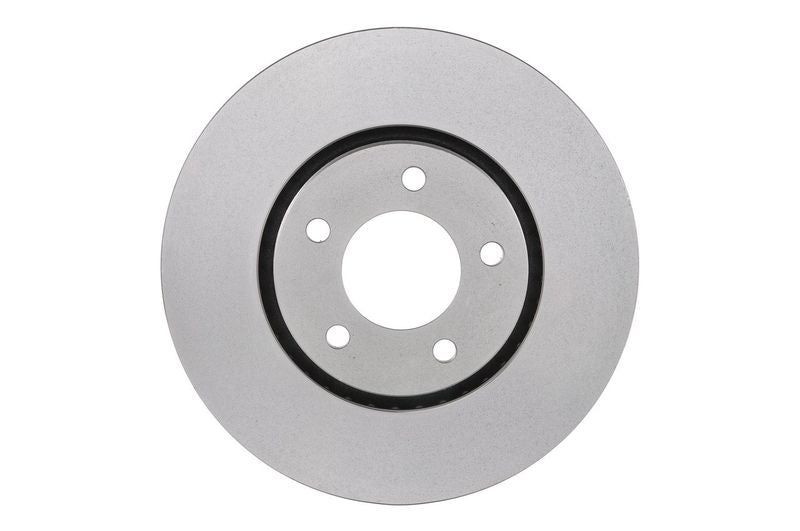

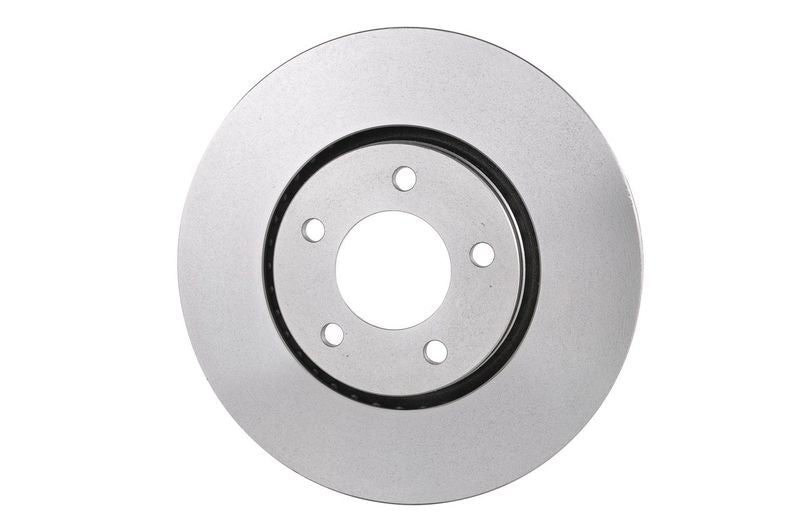

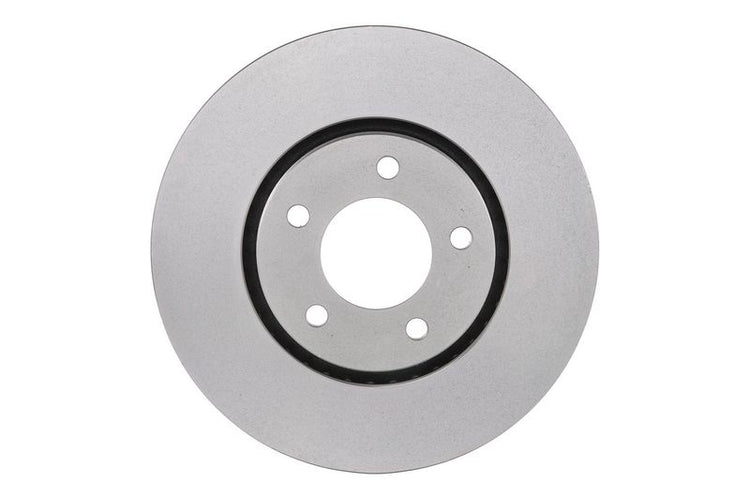

Bosch 0986479117 Brake Disc

SKU: 0986479117
Your selected vehicle
Only 1 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£74.34 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

CHRYSLER
GRAND VOYAGER V (RT)
Description Cylinder Capacity Horse Power Year
3.8 3778 CCM 193 HP From 10/2007
2.8 CRD 2777 CCM 163 HP From 10/2007
VOYAGER Mk III (RG, RS)
Description Cylinder Capacity Horse Power Year
2.4 2429 CCM 147 HP 02/2000 - 12/2008
3.3 3301 CCM 174 HP 02/2000 - 12/2008
2.5 CRD 2499 CCM 141 HP 02/2000 - 12/2008
3.8 3778 CCM 218 HP 02/2000 - 12/2008
3.8 AWD 3778 CCM 218 HP 02/2000 - 12/2008
3.3 AWD 3301 CCM 174 HP 02/2000 - 12/2008
2.8 CRD 2777 CCM 150 HP 06/2004 - 12/2008
2.4 2429 CCM 151 HP 04/2003 - 12/2007
VOYAGER IV VAN (S_)
Description Cylinder Capacity Horse Power Year
3.3 (SYM53, SYH53) 3301 CCM 174 HP 10/2000 - 06/2007
VOYAGER / GRAND VOYAGER IV (RG)
Description Cylinder Capacity Horse Power Year
2.5 CRD 2499 CCM 143 HP 01/2001 - 02/2008
3.3 3301 CCM 174 HP 02/2000 - 08/2007

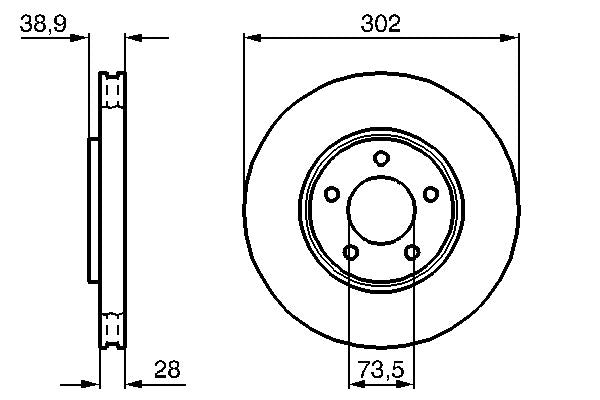

The Bosch 0986479117 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 302 mm outer diameter, 28 mm brake disc thickness, 26.5 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Outer Diameter [mm] : 302
Brake Disc Thickness [mm] : 28
Minimum thickness [mm] : 26.5
Height [mm] : 38.8
Bolt Hole Circle Ø [mm] : 114.3
Brake Disc Type : Vented
Centering Diameter [mm] : 73.5
Number of Holes : 5
Surface : Oiled
Machining : High-carbon
fulfils ECE standard : ECE-R90
Bore Diameter up to [mm] : 14
  • Vendor BOSCH
  • SKU 0986479117
  • Barcode 4047023012340
  • CHRYSLER : 04683 918AB 04683 918AD 4683 918AB 4683 918AD
  • APEC : DSK2106
  • APEC : SDK6252
  • BLUE PRINT : ADA104301
  • BORG & BECK : BBD4275
  • BREMBO : 09.9743.10
  • BREMBO : 09.9743.11
  • DELPHI : BG3716
  • FEBI BILSTEIN : 28171
  • HELLA : 8DD 355 127-671
  • MEYLE : 44-15 521 0001
  • MINTEX : MDC1554
  • NAPA : NBD5749
  • National : NBD1154
  • SKF : VKBD 80872 V1
  • TEXTAR : 92108200
  • TRW : DF4346
  • VALEO : 197233
  • BOSCH : BD959
  • BOSCH : E1 90R-02C0289/1646
