BOSCH

Bosch 0986479121 Brake Disc

SKU: 0986479121

Your selected vehicle

Only 1 left

Low inventory - Hurry! — Order by 17:00 for same-day dispatch

£40.46 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

FIAT

500 (312_)

Description	Cylinder Capacity	Horse Power	Year
1.3 D Multijet (312AXB1A)	1248 CCM	75 HP	From 10/2007

500 C (312_)

Description	Cylinder Capacity	Horse Power	Year
1.2 (312CXA1A, 312AXA1A)	1242 CCM	69 HP	From 09/2009
1.3 D Multijet (312CXB1A)	1248 CCM	75 HP	From 09/2009

PANDA (169_)

Description	Cylinder Capacity	Horse Power	Year
1.2 4x4 (169AXF2A, 169AXF1A)	1242 CCM	69 HP	04/2010 - 08/2013
1.3 D Multijet (169.AXC1A)	1248 CCM	70 HP	From 09/2003
1.2 4x4 (169.AXB2A)	1242 CCM	60 HP	From 10/2004
1.2 Natural Power (169.AXB1A)	1242 CCM	60 HP	01/2007 - 12/2011
1.3 D Multijet (169AXG1A, 169AXD1A)	1248 CCM	75 HP	06/2006 - 08/2013

PANDA Hatchback Van (169_)

Description	Cylinder Capacity	Horse Power	Year
1.4 Natural Power	1368 CCM	78 HP	From 10/2009
1.2 4x4	1242 CCM	69 HP	From 09/2010
1.2 4x4	1242 CCM	60 HP	From 09/2004
1.3 D Multijet	1248 CCM	75 HP	From 01/2006
1.3 D Multijet	1248 CCM	70 HP	From 03/2004
1.2 Natural Power	1242 CCM	60 HP	01/2007 - 11/2009

FORD

KA (RU8)

Description	Cylinder Capacity	Horse Power	Year
1.3 TDCi	1248 CCM	75 HP	10/2008 - 05/2016

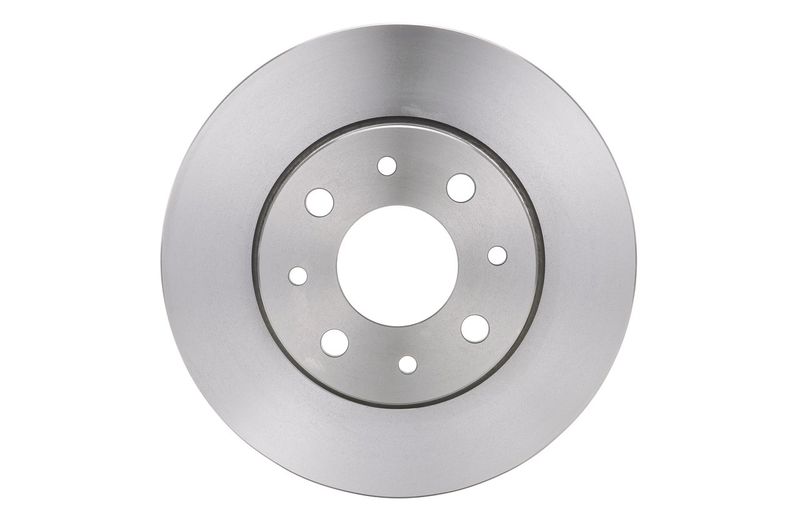

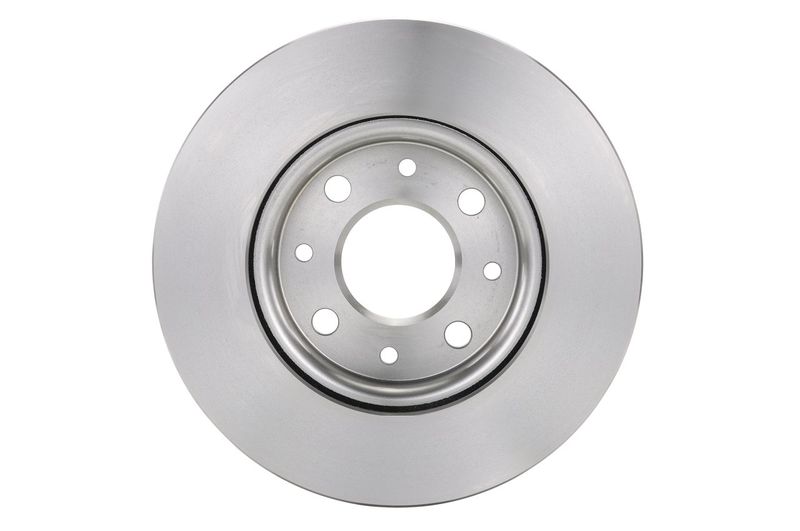

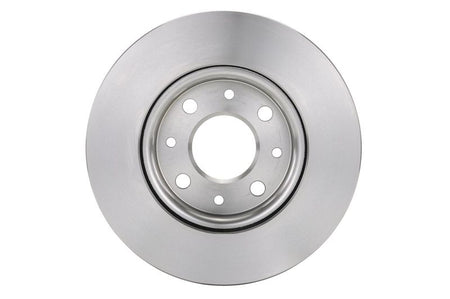

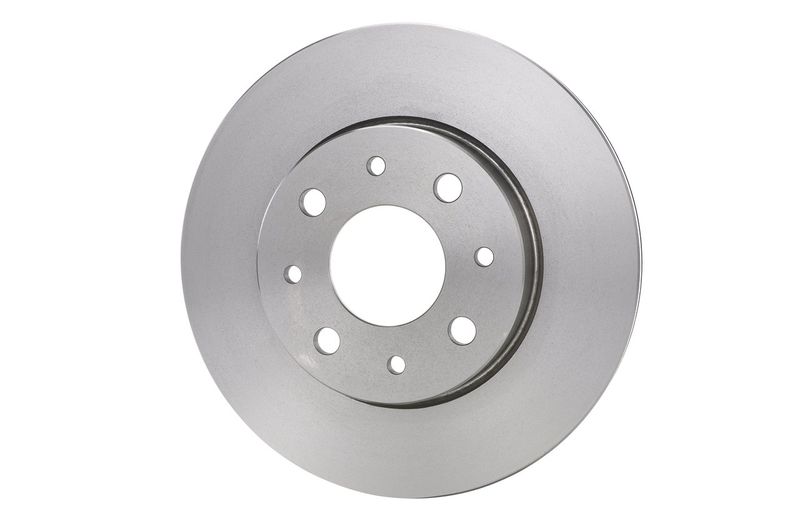

The Bosch 0986479121 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 240.5 mm outer diameter, 20 mm brake disc thickness, 18.2 mm minimum thickness, and vented and internally vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Outer Diameter [mm] : 240.5

Brake Disc Thickness [mm] : 20

Minimum thickness [mm] : 18.2

Height [mm] : 40.6

Bolt Hole Circle Ø [mm] : 98

Brake Disc Type : Vented

Centering Diameter [mm] : 59.02

Number of Holes : 4

Surface : Oiled

Supplementary Article/Supplementary Info 2 : with bolts/screws

fulfils ECE standard : ECE-R90

Bore Diameter up to [mm] : 13.2

Brake Disc Type : internally vented

APEC : DSK2219
APEC : SDK6285
BLUE PRINT : ADL144302
BORG & BECK : BBD4406
BOSCH : 0 986 479 B76
BREMBO : 09.8616.10
BREMBO : 09.8616.11
DELPHI : BG3839
Fahren : FBD6285
FEBI BILSTEIN : 43826
FTE : 9072207
FTE : 9082132
HELLA : 8DD 355 109-121
MEYLE : 215 521 0026
MINTEX : MDC1689
NAPA : NBD5138
National : NBD1316
SKF : VKBD 80175 V2
TEXTAR : 92118003
TRW : DF4375
VALEO : 186744
VALEO : 673050

Bosch 0986479121 Brake Disc
