BOSCH

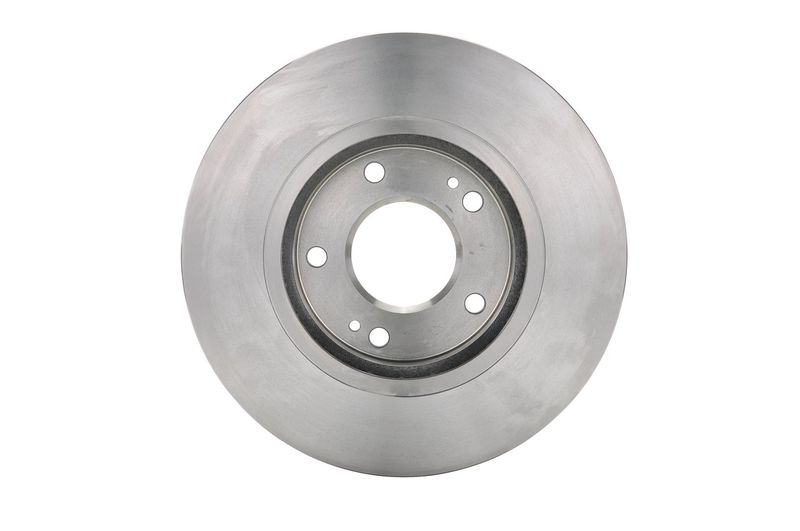

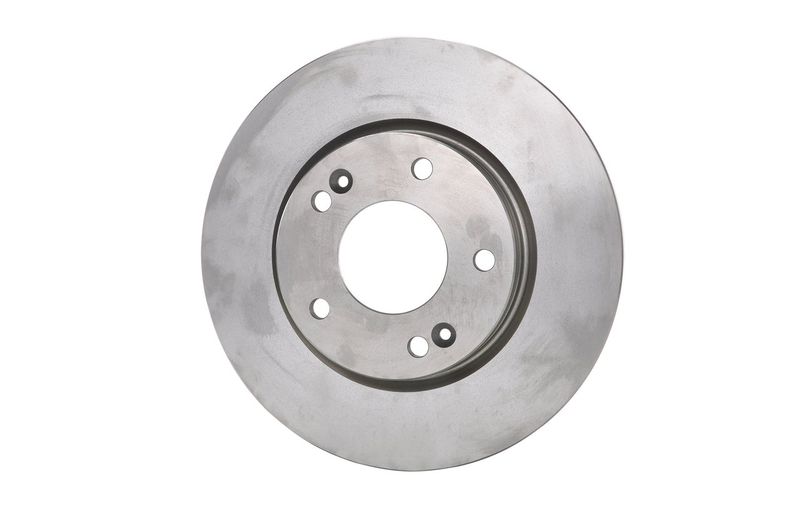

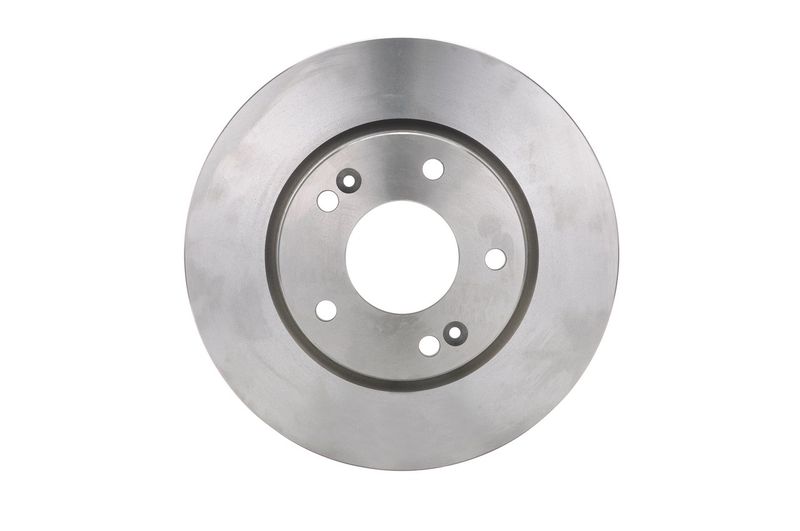

Bosch 0986479124 Brake Disc

SKU: 0986479124

Your selected vehicle

Only 2 left

Low inventory - Hurry! — Order by 17:00 for same-day dispatch

£35.83 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

HYUNDAI

HIGHWAY VAN

Description	Cylinder Capacity	Horse Power	Year
2.0 CRDi	1991 CCM	113 HP	03/2001 - 03/2004
2.0 CVVT	1975 CCM	141 HP	11/2003 - 03/2004

SANTA FÉ I SUV Van (SM)

Description	Cylinder Capacity	Horse Power	Year
CRDi 4x4	1991 CCM	125 HP	08/2003 - 03/2006

SANTA FÉ I (SM)

Description	Cylinder Capacity	Horse Power	Year
2.7 4x4	2656 CCM	180 HP	11/2000 - 03/2006
2.4 16V	2351 CCM	136 HP	02/2001 - 03/2006
2.7 V6 4x4	2656 CCM	173 HP	02/2001 - 03/2006
2.0 CRDi 4x4	1991 CCM	113 HP	04/2001 - 03/2006
2.4 16V 4x4	2351 CCM	136 HP	02/2001 - 03/2006
2.4 16V	2351 CCM	146 HP	02/2001 - 03/2006
2.4 16V 4x4	2351 CCM	146 HP	02/2001 - 03/2006
2.0 CRDi	1991 CCM	113 HP	08/2001 - 03/2006
2.0	1997 CCM	135 HP	08/2001 - 03/2006
2.0 CRDi 4x4	1991 CCM	125 HP	08/2003 - 03/2006
2.0 CRDi All-wheel Drive	1991 CCM	145 HP	11/2003 - 02/2006
2.7 4x4	2656 CCM	175 HP	09/2002 - 12/2004

TRAJET (FO)

Description	Cylinder Capacity	Horse Power	Year
2.0	1997 CCM	136 HP	06/2000 - 09/2004
2.7 V6	2656 CCM	173 HP	09/2000 - 07/2008
2.0 CRDi	1991 CCM	113 HP	04/2001 - 07/2008
2.0	1975 CCM	140 HP	01/2004 - 07/2008
2.0	1975 CCM	141 HP	11/2003 - 07/2008
2.0 CRDi	1991 CCM	125 HP	08/2005 - 07/2008
2.0	1997 CCM	140 HP	03/2001 - 10/2003

TRAJET Box Body/MPV (FO)

Description	Cylinder Capacity	Horse Power	Year
2.0	1997 CCM	136 HP	09/1999 - 07/2008

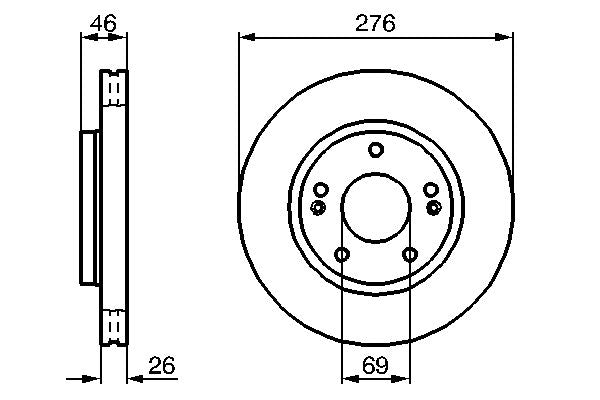

The Bosch 0986479124 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 276 mm outer diameter, 26 mm brake disc thickness, 24.4 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Outer Diameter [mm] : 276

Brake Disc Thickness [mm] : 26

Minimum thickness [mm] : 24.4

Height [mm] : 47

Bolt Hole Circle Ø [mm] : 114.3

Brake Disc Type : Vented

Centering Diameter [mm] : 69

Number of Holes : 5

Surface : Oiled

Supplementary Article/Supplementary Info 2 : with bolts/screws

fulfils ECE standard : ECE-R90

Bore Diameter up to [mm] : 12.7

BLUE PRINT : ADG04344
BORG & BECK : BBD4338
BREMBO : 09.9079.10
BREMBO : 09.9079.11
DELPHI : BG3721
FTE : 9072321
FTE : 9082731
HELLA : 8DD 355 110-951
MEYLE : 37-15 521 0010
MINTEX : MDC1485
National : NBD1112
SKF : VKBD 80625 V2
TEXTAR : 92131000
TRW : DF4291
VALEO : 197172
VALEO : 673486
