BOSCH

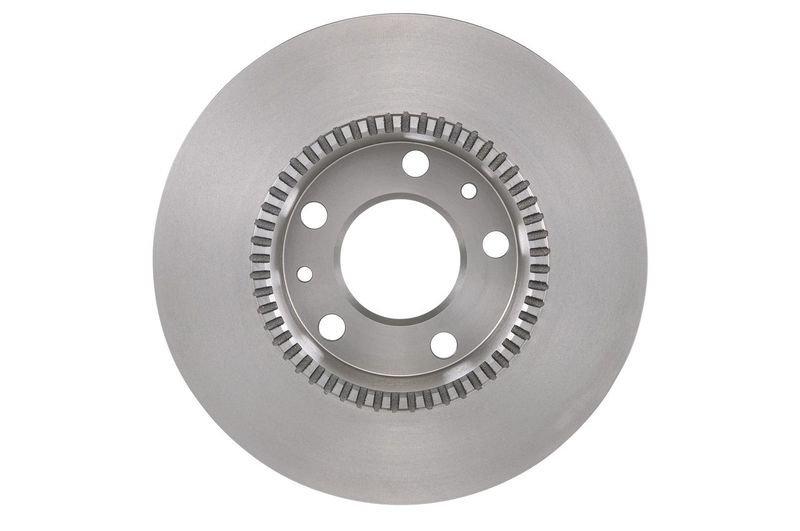

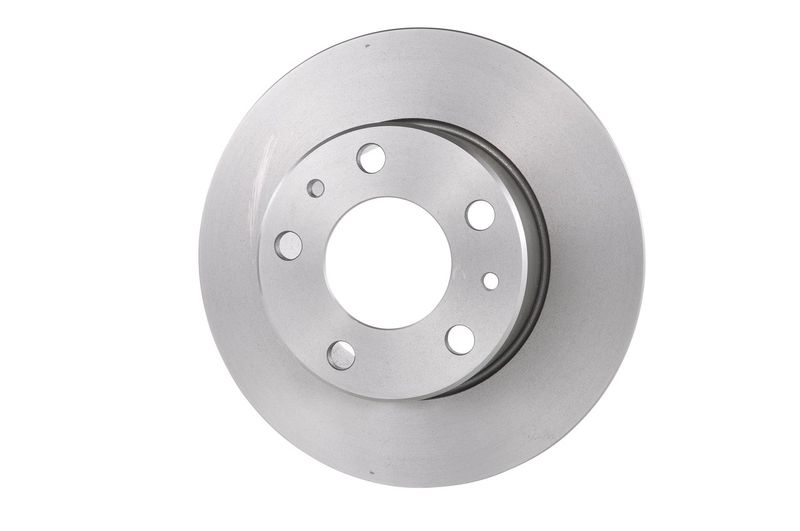

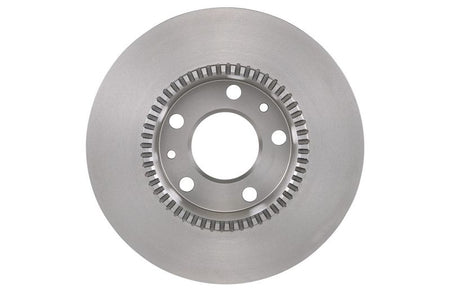

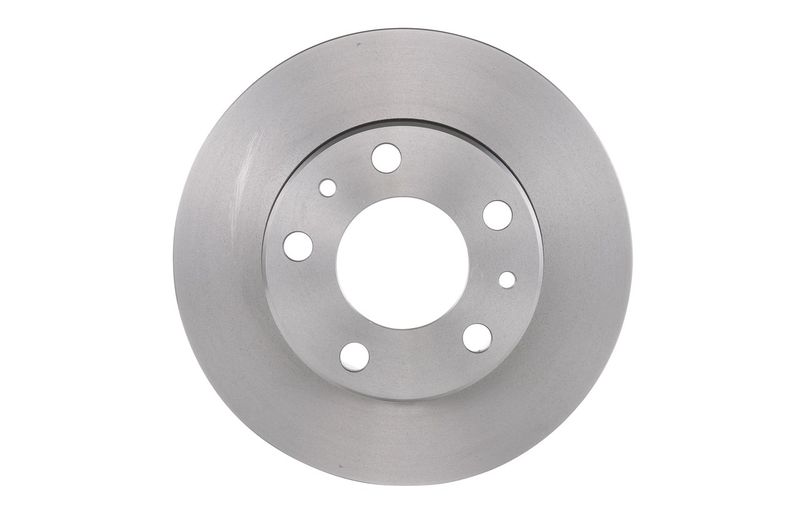

Bosch 0986479163 Brake Disc

SKU: 0986479163

Your selected vehicle

Only 4 left

Low inventory - Hurry! — Order by 17:00 for same-day dispatch

£71.29 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

IVECO

DAILY III Platform/Chassis

Description	Cylinder Capacity	Horse Power	Year
29 L 11	2798 CCM	105 HP	05/1999 - 04/2006
35 S 9,35 C 9	2798 CCM	84 HP	05/1999 - 04/2006
35 S 11,35 C 11 (A2FC13AA, A6FBU4AB, A2NB14A1, A2ND13A1,...	2798 CCM	106 HP	05/1999 - 04/2006
35 S 13,35 C 13	2798 CCM	125 HP	05/1999 - 04/2006
35 C 15	2798 CCM	146 HP	11/2001 - 04/2006
29 L 10 (ALJAV1A1, ALJA41AA, ALJA41A1, AHJA64A1,...	2287 CCM	95 HP	09/2002 - 04/2006
29 L 12 (ALKA41A1, AHKA64A1, ALLA51A1)	2287 CCM	116 HP	09/2002 - 04/2006
35 C 10 V , 35 S 10 V (AMJA14A1, AMJA64A1, AMJA65A1,...	2287 CCM	95 HP	09/2002 - 04/2006
35 C 12 , 35 S 12 (AEKA14A1, AEKA14AA, AEKA64A1,...	2287 CCM	116 HP	09/2002 - 04/2006

DAILY III Bus

Description	Cylinder Capacity	Horse Power	Year
35 S 12, 35 C 12, 40 C 12	2287 CCM	116 HP	01/2003 - 05/2006
35 S 13, 40 C 13, 50 C 13	2798 CCM	125 HP	05/1999 - 05/2006
35 S 14, 50 C 14 (ATPA9FH2)	2998 CCM	136 HP	01/2004 - 05/2006

DAILY III Van

Description	Cylinder Capacity	Horse Power	Year
35 S 9 V,35 C 9 V	2798 CCM	84 HP	05/1999 - 07/2007
35 S 11 V,35 C 11 V	2798 CCM	106 HP	05/1999 - 07/2007
35 S 13 V,35 C 13 V	2798 CCM	125 HP	05/1999 - 07/2007
29 L 10 V (ALJA43A2, ALJA42A2, ALJA41A2)	2287 CCM	95 HP	09/2002 - 07/2007
29 L 12 V (ALKA41A2, ALLA52A2, ALKA42A2)	2287 CCM	116 HP	09/2002 - 07/2007
35 S 15 V, 35 C 15 V (A6HCV3B2, A6HBV4B2, A6HC41B2,...	2798 CCM	146 HP	11/2002 - 07/2007
35 S 10 (ANJA41A1, ANJA42A2, ANJA42AB, ANJA43A, ANJAV1A,...	2287 CCM	95 HP	09/2002 - 07/2007
35 C 12 V, 35 S 12 V (AGKA43A2, AGKB43A2, AGKB46A2,...	2287 CCM	116 HP	09/2002 - 07/2007
35 S 9 V	2798 CCM	90 HP	11/2001 - 04/2006

The Bosch 0986479163 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 276 mm outer diameter, 16 mm brake disc thickness, 13 mm minimum thickness, and solid disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

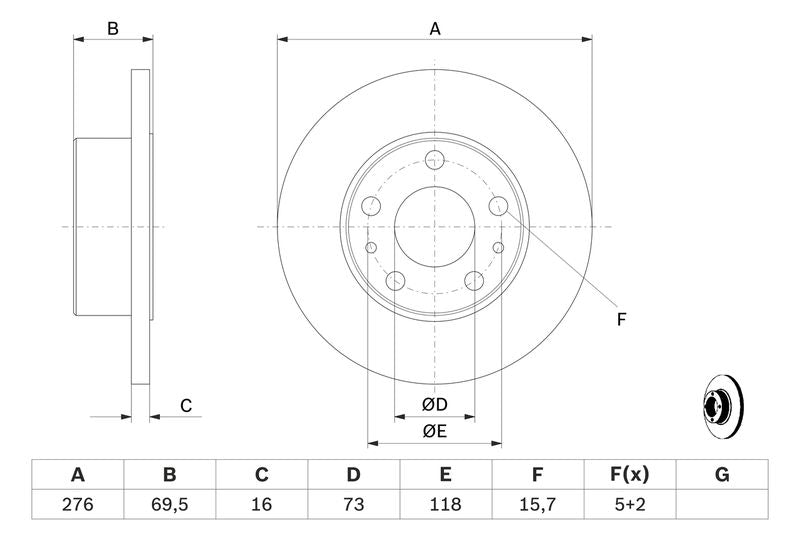

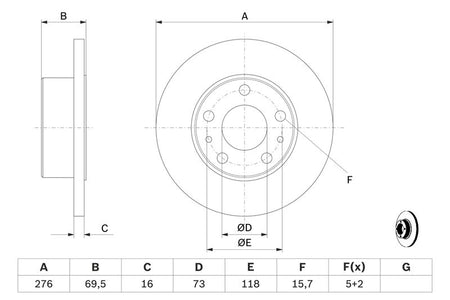

Function : Brake Disc

Outer Diameter [mm] : 276

Brake Disc Thickness [mm] : 16

Minimum thickness [mm] : 13

Height [mm] : 69.5

Bolt Hole Circle Ø [mm] : 118

Brake Disc Type : solid

Centering Diameter [mm] : 73

Number of Holes : 5

Surface : Oiled

fulfils ECE standard : ECE-R90

Bore Diameter up to [mm] : 15.7

BLUE PRINT : ADBP430009
BORG & BECK : BBD4415
BREMBO : 08.7300.20
DELPHI : BG3753
FTE : 9072396
FTE : 9082733
HELLA : 8DD 355 107-421
MEYLE : 215 523 0030
MINTEX : MDC1440
National : NBD1079
TEXTAR : 93104800
VALEO : 187149

Bosch 0986479163 Brake Disc
