BOSCH

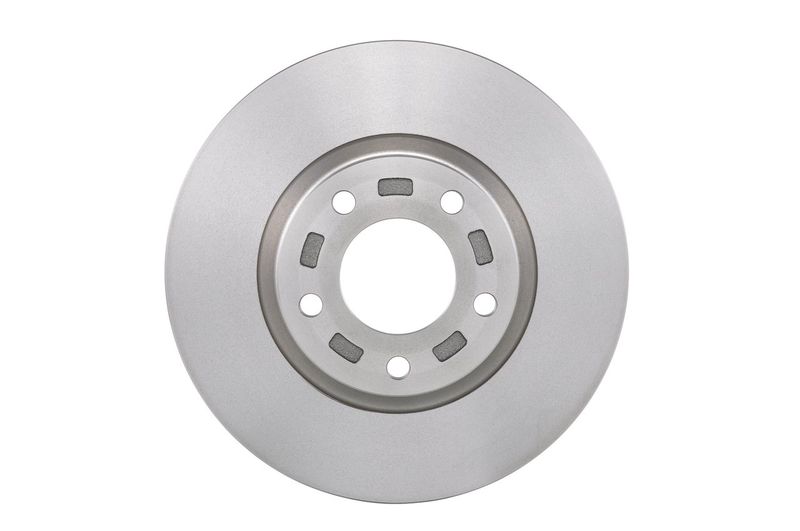

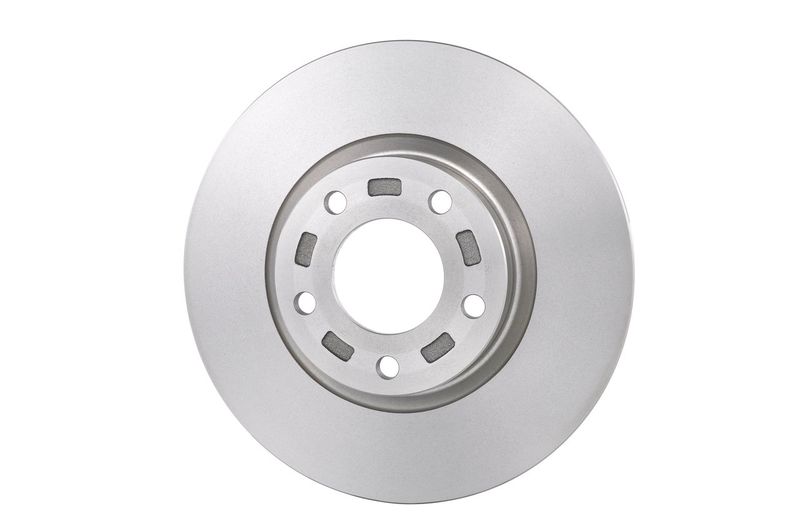

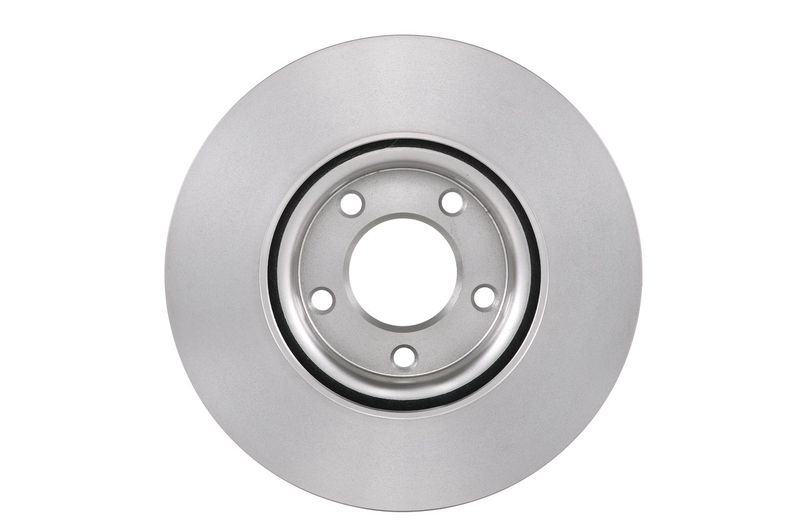

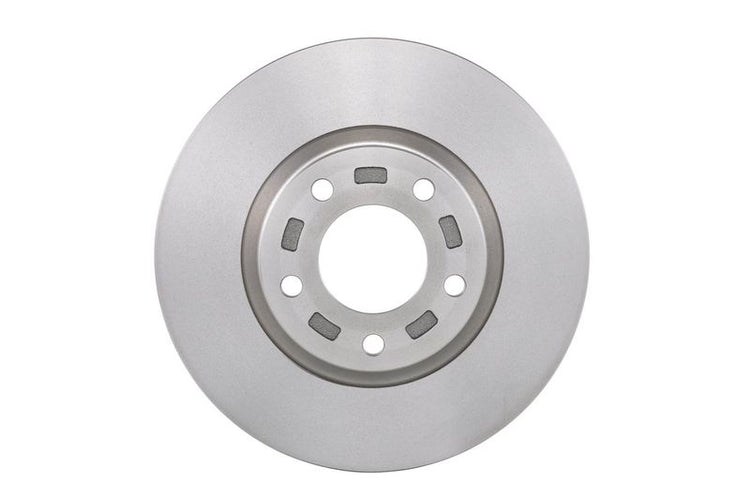

Bosch 0986479183 Brake Disc

SKU: 0986479183

Your selected vehicle

Only 4 left

Low inventory - Hurry! — Order by 17:00 for same-day dispatch

£76.74 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

MAZDA

3 Saloon (BK)

Description	Cylinder Capacity	Horse Power	Year
2.0 (BKEP)	1999 CCM	150 HP	10/2003 - 12/2009
2.0 MZR-CD (BK12)	1998 CCM	143 HP	12/2006 - 06/2009

3 (BK)

Description	Cylinder Capacity	Horse Power	Year
2.0 (BKEP)	1999 CCM	150 HP	10/2003 - 12/2009
2.0 MZR-CD (BK14)	1998 CCM	143 HP	07/2006 - 06/2009

3 (BL)

Description	Cylinder Capacity	Horse Power	Year
2.0 MZR DISI (BLEFW)	1999 CCM	151 HP	12/2008 - 05/2013
2.0 MZR (BLEFW)	1999 CCM	150 HP	01/2009 - 09/2014
2.2 MZR CD (BL10)	2184 CCM	150 HP	01/2009 - 10/2013
2.2 MZR CD (BL10)	2184 CCM	185 HP	01/2009 - 05/2013
2.0 DISI (BLEFW)	1998 CCM	150 HP	05/2009 - 02/2012

3 Saloon (BL)

Description	Cylinder Capacity	Horse Power	Year
2.0 MZR (BL12, BLEFP)	1999 CCM	150 HP	03/2009 - 09/2014
2.0 MZR DISI (BL12)	1999 CCM	151 HP	02/2009 - 05/2013
2.2 MZR CD (BL10)	2184 CCM	150 HP	01/2009 - 09/2014
2.2 MZR CD (BL10)	2184 CCM	185 HP	06/2009 - 05/2013

5 (CR)

Description	Cylinder Capacity	Horse Power	Year
1.8 (CR19)	1798 CCM	116 HP	02/2005 - 05/2010
2.0 (CREW, CR19)	1999 CCM	146 HP	02/2005 - 05/2010
2.0 CD (CR19)	1998 CCM	110 HP	02/2005 - 05/2010
2.0 CD (CR19)	1998 CCM	143 HP	02/2005 - 05/2010

5 (CW)

Description	Cylinder Capacity	Horse Power	Year
1.6 CD	1560 CCM	116 HP	From 07/2010
2.0 (CWEFW)	1999 CCM	150 HP	From 09/2010
2.0 (CWEFW)	1999 CCM	144 HP	From 06/2010
1.8 MZR	1798 CCM	116 HP	From 09/2010
2.0	1999 CCM	147 HP	From 01/2011

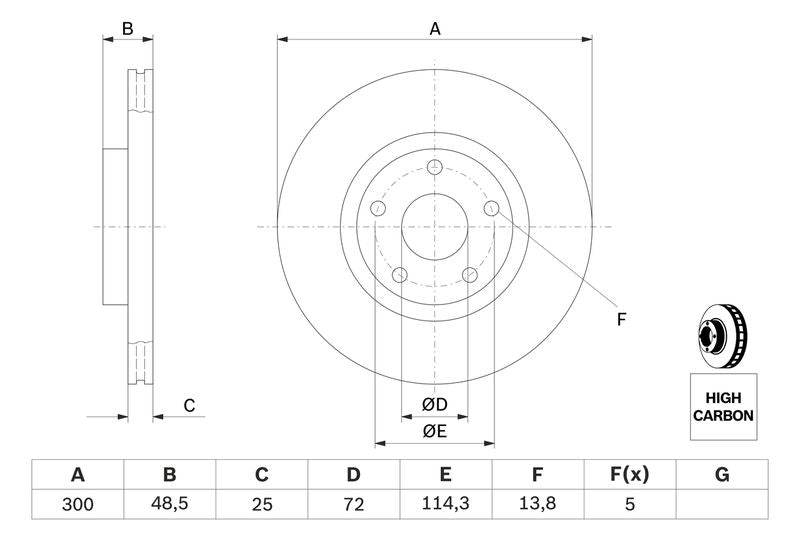

The Bosch 0986479183 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 300 mm outer diameter, 25 mm brake disc thickness, 23 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Outer Diameter [mm] : 300

Brake Disc Thickness [mm] : 25

Minimum thickness [mm] : 23

Height [mm] : 48.5

Bolt Hole Circle Ø [mm] : 114.3

Brake Disc Type : Vented

Centering Diameter [mm] : 72

Number of Holes : 5

Surface : Oiled

Machining : High-carbon

fulfils ECE standard : ECE-R90

Bore Diameter up to [mm] : 13.8

APEC : DSK2211
APEC : SDK6287
BLUE PRINT : ADM54382
BORG & BECK : BBD4449
BREMBO : 09.9468.20
BREMBO : 09.9468.21
BREMBO : 09.9468.2X
BREMBO : 09.9468.76
DELPHI : BG3928
Fahren : FBD6287
FEBI BILSTEIN : 32770
FTE : 9071128
HELLA : 8DD 355 110-891
MEYLE : 35-15 521 0039
MEYLE : 35-15 521 0039/PD
MINTEX : MDC1692
MINTEX : MDC1988
NAPA : NBD5276
National : NBD1321
SKF : VKBD 80273 V2
TEXTAR : 92130403
TRW : DF4385
VALEO : 197365
VALEO : 673246
