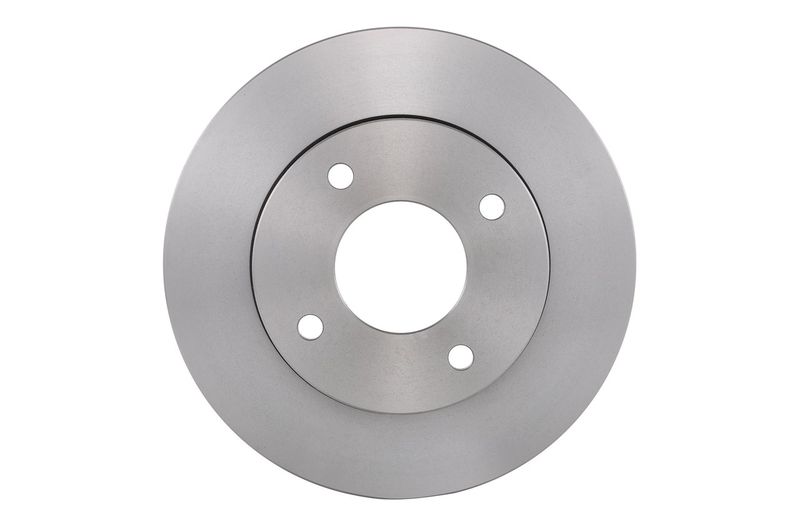

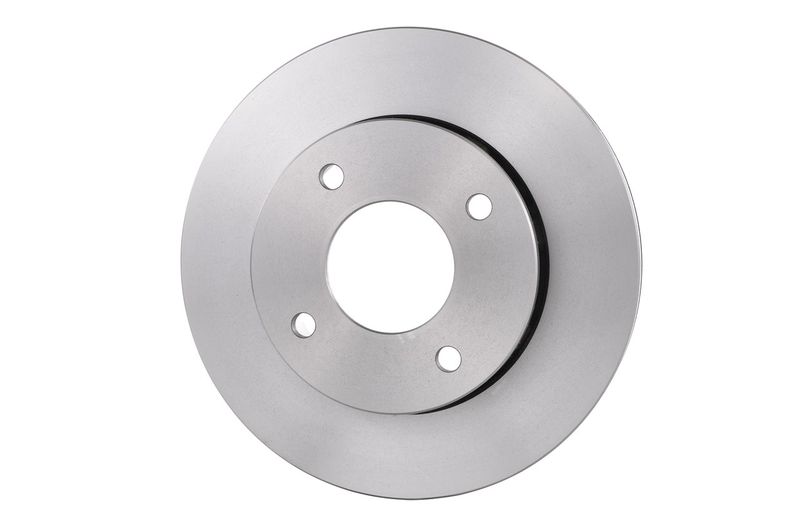

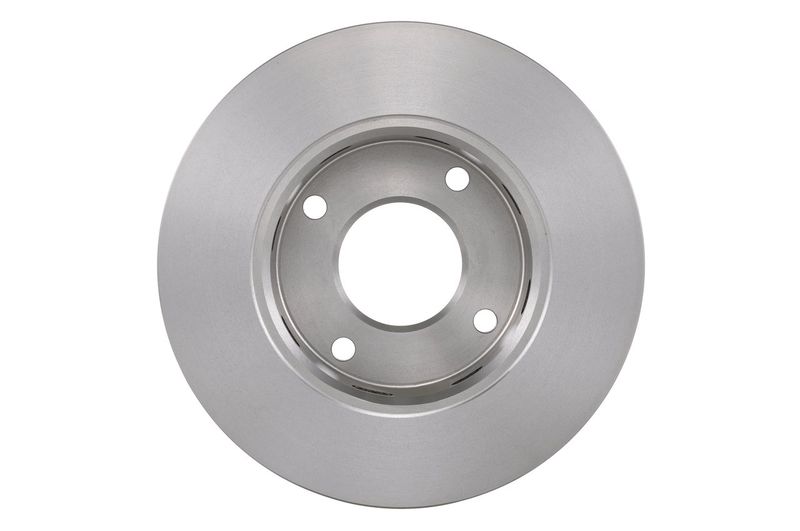

Bosch 0986479187 Brake Disc

SKU: 0986479187

Your selected vehicle

Only 2 left

Low inventory - Hurry! — Order by 17:00 for same-day dispatch

£68.95 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

MITSUBISHI

COLT VI (Z3_A, Z2_A)

Description	Cylinder Capacity	Horse Power	Year
1.3 (Z21A)	1332 CCM	95 HP	06/2004 - 06/2012
1.1 (Z31A, Z32A)	1124 CCM	75 HP	10/2004 - 06/2012
1.5 DI-D (Z38A)	1493 CCM	68 HP	08/2004 - 06/2012
1.5 DI-D (Z39A)	1493 CCM	95 HP	08/2004 - 06/2012
1.3 LPG (Z33A)	1332 CCM	95 HP	06/2004 - 06/2012
1.3 Flexfuel (Z35A)	1332 CCM	95 HP	10/2008 - 06/2012

COLT CZC VI Convertible (RG)

Description	Cylinder Capacity	Horse Power	Year
1.5 (Z36A)	1499 CCM	109 HP	05/2006 - 07/2009

SMART

FORFOUR (454)

Description	Cylinder Capacity	Horse Power	Year
1.1 (454.030)	1124 CCM	75 HP	01/2004 - 06/2006
1.3 (454.031)	1332 CCM	95 HP	01/2004 - 06/2006
1.5 (454.032)	1499 CCM	109 HP	01/2004 - 06/2006
1.5 CDI (454.000)	1493 CCM	68 HP	09/2004 - 06/2006
1.5 CDI (454.001)	1493 CCM	95 HP	09/2004 - 06/2006
1.1 (454.033)	1124 CCM	64 HP	02/2005 - 06/2006
1.5 (454.032)	1499 CCM	122 HP	01/2004 - 06/2006

The Bosch 0986479187 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 256 mm outer diameter, 24 mm brake disc thickness, 21.5 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

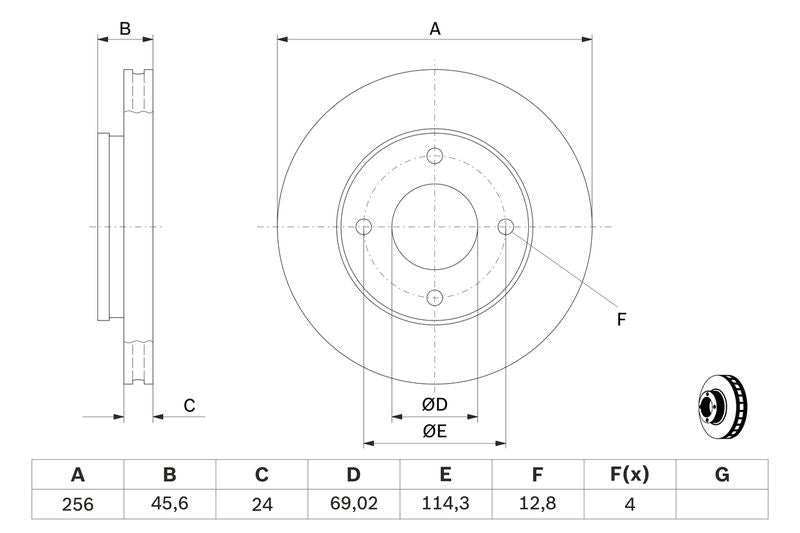

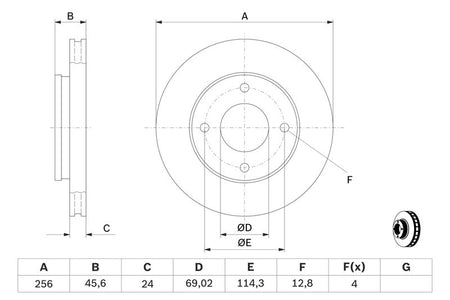

Function : Brake Disc

Outer Diameter [mm] : 256

Brake Disc Thickness [mm] : 24

Minimum thickness [mm] : 21.5

Height [mm] : 45.6

Bolt Hole Circle Ø [mm] : 114.3

Brake Disc Type : Vented

Centering Diameter [mm] : 69

Number of Holes : 4

Surface : Oiled

fulfils ECE standard : ECE-R90

Bore Diameter up to [mm] : 12.8

APEC : DSK2269
APEC : SDK6143
BLUE PRINT : ADC443102
BORG & BECK : BBD4477
BOSCH : 0 986 479 B83
BREMBO : 09.9991.10
BREMBO : 09.9991.11
DELPHI : BG3987
Fahren : FBD6143
FEBI BILSTEIN : 22835
FTE : 9072261
FTE : 9082191
HELLA : 8DD 355 111-511
MEYLE : 015 521 2088
MINTEX : MDC1753
NAPA : NBD5511
National : NBD1400
SKF : VKBD 80176 V2
TEXTAR : 92134803
TRW : DF4457
VALEO : 197214
VALEO : 672970
VALEO : 673104
