BOSCH

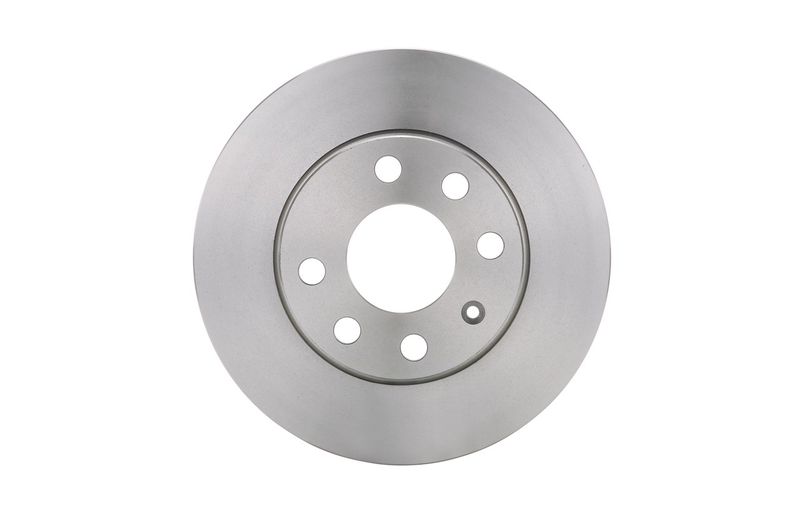

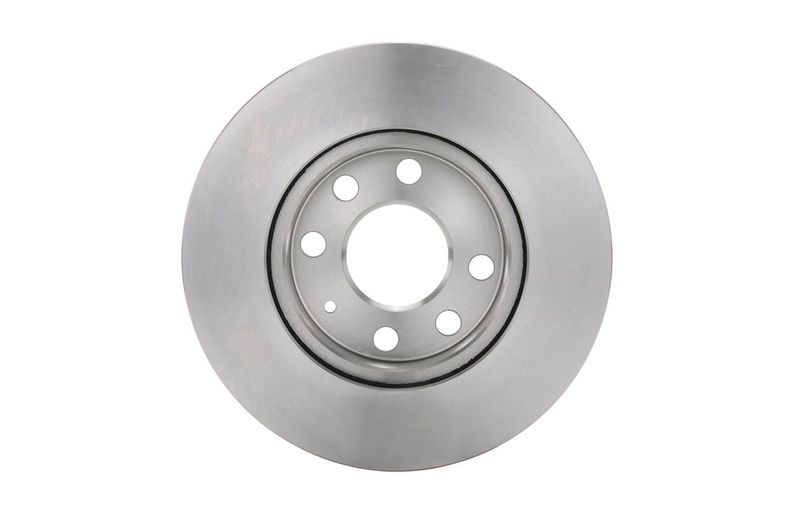

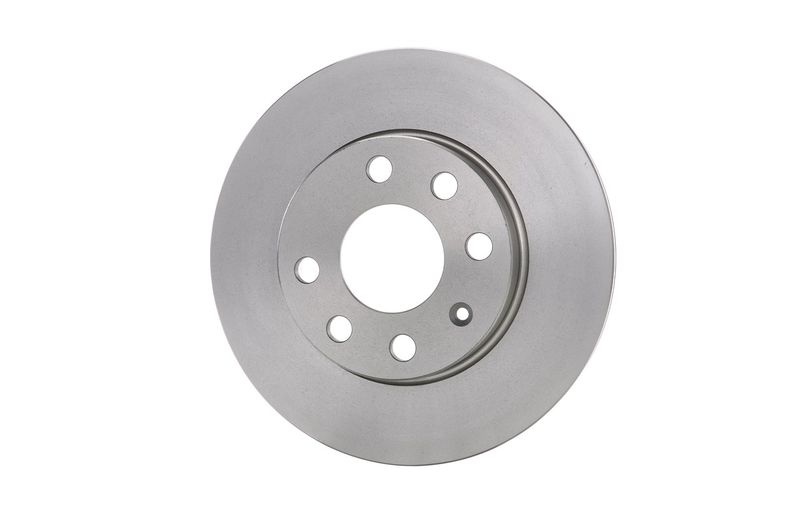

Bosch 0986479190 Brake Disc

SKU: 0986479190
Your selected vehicle
Only 1 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£44.49 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

OPEL
CORSA C (X01)
Description Cylinder Capacity Horse Power Year
1.0 (F08, F68) 973 CCM 58 HP 09/2000 - 06/2003
1.2 (F08, F68) 1199 CCM 75 HP 09/2000 - 12/2009
1.7 DI (F08, F68) 1686 CCM 65 HP 09/2000 - 12/2009
1.0 (F08, F68) 998 CCM 60 HP 06/2003 - 12/2009
1.2 Twinport (F08, F68) 1229 CCM 80 HP 07/2004 - 12/2009
CORSA C Hatchback Van (X01)
Description Cylinder Capacity Horse Power Year
1.2 16V (F08, W5L) 1199 CCM 75 HP 09/2000 - 07/2003
1.7 DI 16V (F08, W5L) 1686 CCM 65 HP 09/2000 - 07/2003
1.2 (F08, W5L) 1229 CCM 80 HP 07/2005 - 06/2006
VAUXHALL
CORSA Mk II (C) (X01)
Description Cylinder Capacity Horse Power Year
1.2 Twinport (F08, F68) 1229 CCM 80 HP 07/2004 - 10/2006
1.0 12V (F08, F68) 973 CCM 58 HP 09/2000 - 10/2003
1.2 16V (F08, F68) 1199 CCM 75 HP 09/2000 - 10/2006
1.7 DI 16V (F08, F68) 1686 CCM 65 HP 08/2000 - 09/2006
1.2 16V Dualfuel (F08) 1199 CCM 75 HP 08/2001 - 10/2006
1.0 12V (F08, F68) 998 CCM 60 HP 11/2003 - 10/2006
CORSAVAN Mk II (C) Hatchback Van (X01)
Description Cylinder Capacity Horse Power Year
1.2 16V (F08) 1199 CCM 75 HP 09/2000 - 06/2006
1.7 DI 16V (F08) 1686 CCM 65 HP 09/2000 - 06/2006
1.2 16V Dualfuel (F08) 1199 CCM 75 HP 08/2001 - 06/2006
1.2 16V Dualfuel (F08) 1229 CCM 80 HP 07/2004 - 12/2005
1.2 16V (F08) 1229 CCM 80 HP 07/2004 - 11/2006

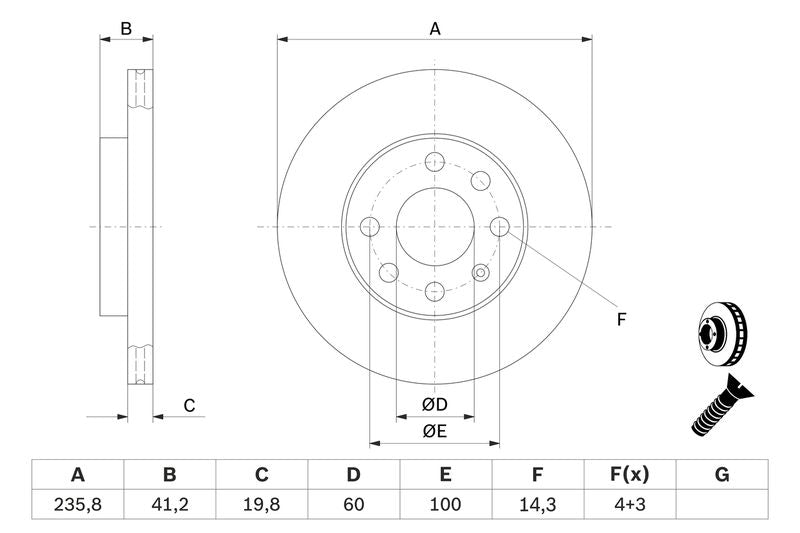

The Bosch 0986479190 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 240 mm outer diameter, 19.8 mm brake disc thickness, 17 mm minimum thickness, and vented and internally vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Outer Diameter [mm] : 240
Brake Disc Thickness [mm] : 19.8
Minimum thickness [mm] : 17
Height [mm] : 41.2
Bolt Hole Circle Ø [mm] : 100
Brake Disc Type : Vented
Centering Diameter [mm] : 60
Number of Holes : 6
Surface : Oiled
Supplementary Article/Supplementary Info 2 : with bolts/screws
fulfils ECE standard : ECE-R90
Bore Diameter up to [mm] : 14.3
Brake Disc Type : internally vented
  • Vendor BOSCH
  • SKU 0986479190
  • Barcode 4047024095588
  • OPEL : 5 69 021 91 95 985
  • VAUXHALL : 5 69 021 91 95 985
  • APEC : DSK2059
  • APEC : SDK6095
  • BLUE PRINT : ADZ94323
  • BORG & BECK : BBD4252
  • BOSCH : 0 986 479 B84
  • BREMBO : 09.8635.10
  • BREMBO : 09.8635.11
  • BREMBO : 09.8635.1X
  • BREMBO : 09.8635.75
  • DELPHI : BG3568
  • Fahren : FBD6095
  • FEBI BILSTEIN : 19508
  • FTE : 9072158
  • FTE : 9082057
  • HELLA : 8DD 355 108-331
  • MEYLE : 615 521 6020
  • MINTEX : MDC1454C
  • NAPA : NBD5564
  • National : NBD1107
  • SKF : VKBD 80464 V2
  • TEXTAR : 92111400
  • TEXTAR : 92111403
  • TRW : DF4236
  • VALEO : 186790
  • VALEO : 672609
  • BOSCH : BD1061
  • BOSCH : E1 90R-02C0349/1345
