BOSCH

Bosch 0986479199 Brake Disc

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service

SKU: 0986479199

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Out of stock

Out of Stock

£60.57 inc. VAT

Pay in 3 interest-free payments with Klarna

Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

RENAULT

ESPACE Mk IV (JK0/1_)

Description	Cylinder Capacity	Horse Power	Year
2.0 Turbo (JK0A, JK0B, JK0N)	1998 CCM	163 HP	11/2002 - 02/2006
2.0 (JK09)	1998 CCM	136 HP	11/2002 - 01/2015
1.9 dCi (JK0U, JK0G)	1870 CCM	120 HP	11/2002 - 01/2015
2.0 (JK0A, JK1D, JK0N)	1998 CCM	170 HP	04/2005 - 12/2015
1.9 dCi (JK0U)	1870 CCM	116 HP	04/2003 - 02/2005
2.0 dCi (JK02, JK03)	1995 CCM	131 HP	01/2006 - 12/2015
2.0 (JK0K)	1998 CCM	133 HP	11/2002 - 12/2015

LAGUNA II (BG0/1_)

Description	Cylinder Capacity	Horse Power	Year
3.0 V6 24V (BG01, BG02, BG0D, BG0Y)	2946 CCM	207 HP	03/2001 - 08/2007
2.2 dCi (BG0F)	2188 CCM	150 HP	10/2001 - 08/2006

LAGUNA II Sport Tourer (KG0/1_)

Description	Cylinder Capacity	Horse Power	Year
3.0 V6 24V (KG0D, KG01)	2946 CCM	207 HP	03/2001 - 12/2007
2.2 dCi (KG0F)	2188 CCM	150 HP	10/2001 - 08/2006

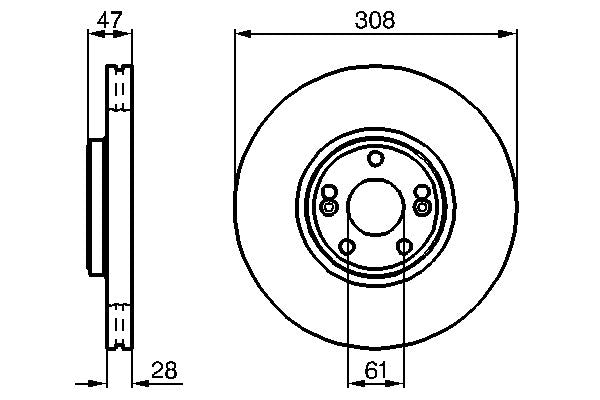

The Bosch 0986479199 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 308 mm outer diameter, 28 mm brake disc thickness, 25.8 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Outer Diameter [mm] : 308

Brake Disc Thickness [mm] : 28

Minimum thickness [mm] : 25.8

Height [mm] : 47

Bolt Hole Circle Ø [mm] : 108

Brake Disc Type : Vented

Centering Diameter [mm] : 61

Number of Holes : 5

Surface : Oiled

Machining : High-carbon

fulfils ECE standard : ECE-R90
