BOSCH

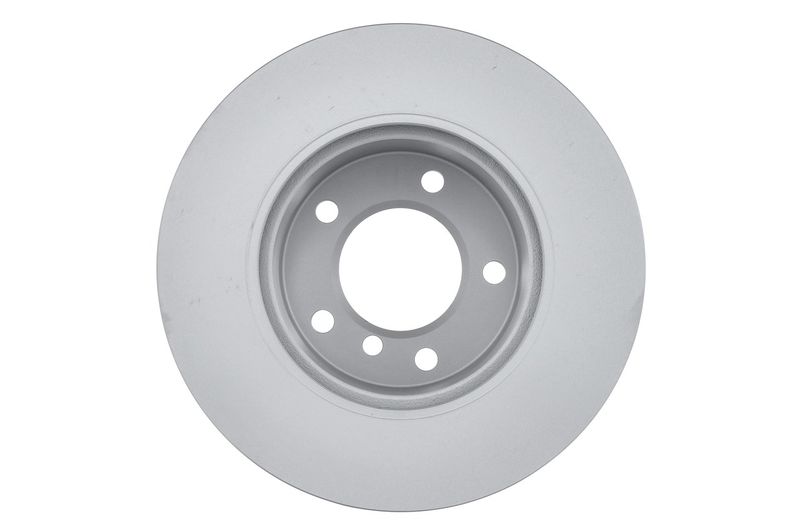

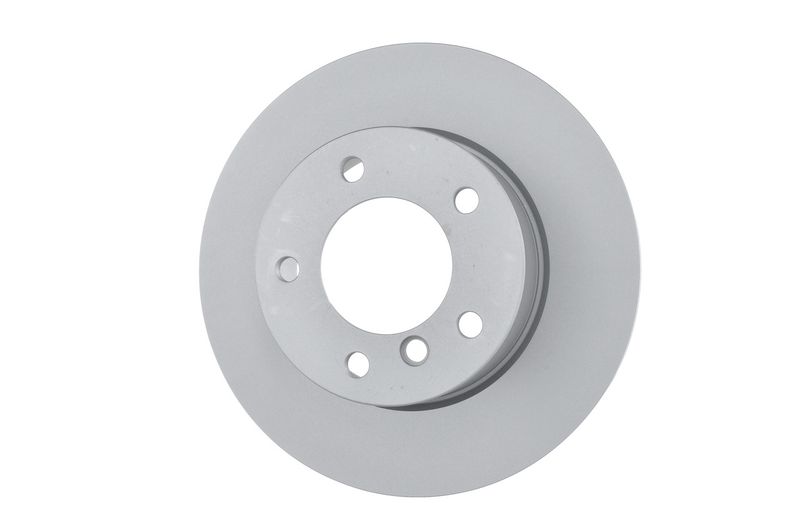

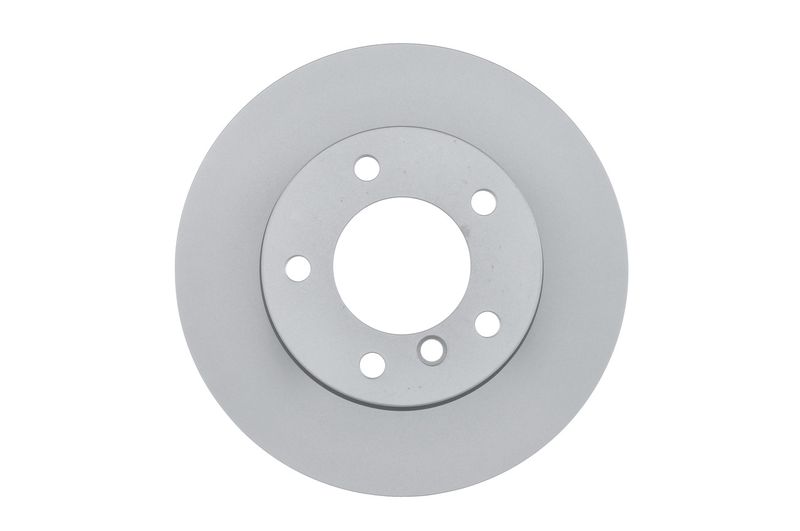

Bosch 0986479213 Brake Disc

SKU: 0986479213

Your selected vehicle

Only 4 left

Low inventory - Hurry! — Order by 17:00 for same-day dispatch

£81.42 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

BMW

1 (E87)

Description	Cylinder Capacity	Horse Power	Year
116 i	1596 CCM	115 HP	06/2004 - 06/2011
116 i	1599 CCM	122 HP	09/2007 - 06/2011
116 i	1995 CCM	122 HP	01/2009 - 06/2011
118 i	1995 CCM	129 HP	07/2004 - 02/2007
116 d	1995 CCM	116 HP	03/2009 - 06/2011
118 d	1995 CCM	122 HP	06/2004 - 02/2007

1 (E81)

Description	Cylinder Capacity	Horse Power	Year
116 i	1596 CCM	115 HP	09/2007 - 12/2011
116 i	1599 CCM	122 HP	03/2007 - 12/2011
116 i	1995 CCM	122 HP	11/2008 - 12/2011
116 d	1995 CCM	116 HP	11/2008 - 12/2011

1 Sports Hatch (F20)

Description	Cylinder Capacity	Horse Power	Year
116 d	1598 CCM	116 HP	03/2012 - 02/2015
118 d	1995 CCM	136 HP	07/2011 - 06/2019
116 i	1598 CCM	136 HP	07/2011 - 02/2015
116 d	1995 CCM	116 HP	07/2011 - 02/2015
118 d	1995 CCM	143 HP	07/2011 - 02/2015
114 i	1598 CCM	102 HP	07/2012 - 02/2015
114 d	1598 CCM	95 HP	11/2012 - 06/2015

1 Sports Hatch (F21)

Description	Cylinder Capacity	Horse Power	Year
114 i	1598 CCM	102 HP	07/2012 - 01/2015
116 i	1598 CCM	136 HP	12/2011 - 02/2015
114 d	1598 CCM	95 HP	07/2012 - 05/2019
116 d	1598 CCM	116 HP	12/2011 - 02/2015
116 d	1995 CCM	116 HP	07/2012 - 02/2015
118 d	1995 CCM	136 HP	12/2011 - 06/2019
118 d	1995 CCM	143 HP	12/2011 - 02/2015

2 Coupe (F22, F87)

Description	Cylinder Capacity	Horse Power	Year
218 d	1995 CCM	143 HP	03/2014 - 06/2015
218 i	1499 CCM	136 HP	03/2015 - 06/2021
218 d	1995 CCM	150 HP	07/2015 - 09/2020

2 Convertible (F23)

Description	Cylinder Capacity	Horse Power	Year
218 i	1499 CCM	136 HP	03/2015 - 06/2021
218 d	1995 CCM	150 HP	07/2015 - 09/2020
218 i	1998 CCM	136 HP	11/2020 - 06/2021

The Bosch 0986479213 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 284 mm outer diameter, 22 mm brake disc thickness, 20.4 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

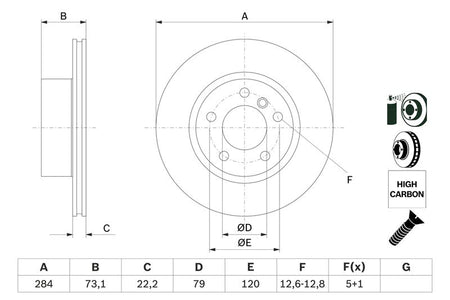

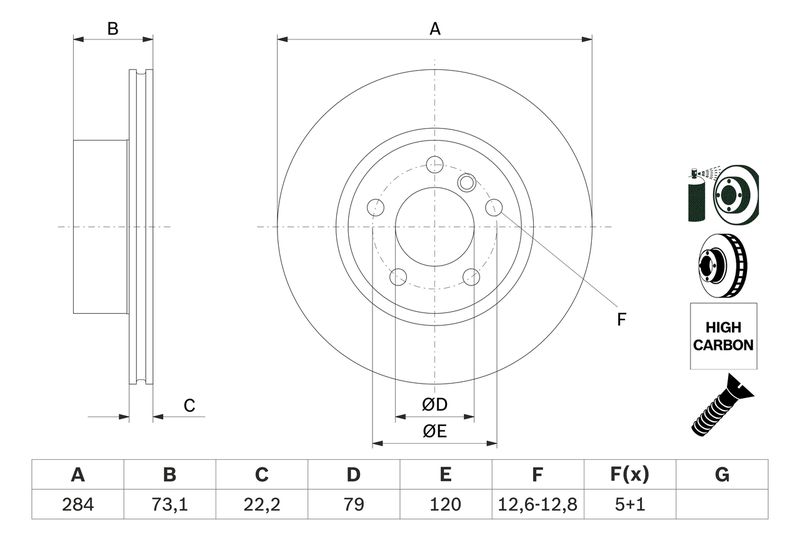

Function : Brake Disc

Outer Diameter [mm] : 284

Brake Disc Thickness [mm] : 22

Minimum thickness [mm] : 20.4

Height [mm] : 73.1

Bolt Hole Circle Ø [mm] : 120

Brake Disc Type : Vented

Centering Diameter [mm] : 79

Number of Holes : 5

Surface : Coated

Machining : High-carbon

Supplementary Article/Supplementary Info 2 : with bolts/screws

fulfils ECE standard : ECE-R90

Bore Diameter up to [mm] : 16.6

APEC : DSK2246
APEC : SDK6265
BLUE PRINT : ADB114326
BLUE PRINT : ADB114370
BORG & BECK : BBD4463
BORG & BECK : BBD5263
BREMBO : 09.9750.11
BREMBO : 09.9750.14
BREMBO : 09.9750.1X
BREMBO : 09.9750.21
BREMBO : 09.9750.2S
BREMBO : 09.9750.2X
DELPHI : BG3899C
Fahren : FBD6265
FEBI BILSTEIN : 23535
FEBI BILSTEIN : 39112
FTE : 9072053
FTE : 9082440
FTE : 9082570
HELLA : 8DD 355 118-031
MEYLE : 315 521 3062
MEYLE : 383 521 0013/PD
MEYLE : 383 521 3062/PD
MINTEX : MDC1645
MINTEX : MDC2350
NAPA : NBD5741
SKF : VKBD 80089 V2
TEXTAR : 92132703
TEXTAR : 92238400
TEXTAR : 92238403
TRW : DF4447
TRW : DF6255
VALEO : 186816
VALEO : 672779
