BOSCH

Bosch 0986479233 Brake Disc

5.0/5 78 reviews
SKU: 0986479233

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 2 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£61.82 inc. VAT

Complete the job

APEC — Aerosol Brake cleaner 600ml
£6.92

Pay in 3 interest-free payments with Klarna

Available at checkout. Subject to eligibility.

Free standard delivery to UK mainland

Delivery estimate confirmed at checkout. Delivery details
Pay securely with
  • Visa
  • Mastercard
  • Apple Pay
  • PayPal
  • Klarna
  • Google Pay

Need help with fitment? 01472 869 066

Spend & Earn

Earn 2% store credit on eligible parts spend. Available 30 days after fulfilment. Sign in at checkout to use your balance.

Excludes VAT, delivery, discounts and amounts paid with store credit.

MAZDA
5 (CR)
Description Cylinder Capacity Horse Power Year
1.8 (CR19) 1798 CCM 116 HP 02/2005 - 05/2010
2.0 (CREW, CR19) 1999 CCM 146 HP 02/2005 - 05/2010
2.0 CD (CR19) 1998 CCM 110 HP 02/2005 - 05/2010
2.0 CD (CR19) 1998 CCM 143 HP 02/2005 - 05/2010
5 (CW)
Description Cylinder Capacity Horse Power Year
1.6 CD 1560 CCM 116 HP From 07/2010
2.0 (CWEFW) 1999 CCM 150 HP From 09/2010
2.0 (CWEFW) 1999 CCM 144 HP From 06/2010
1.8 MZR 1798 CCM 116 HP From 09/2010
2.0 1999 CCM 147 HP From 01/2011

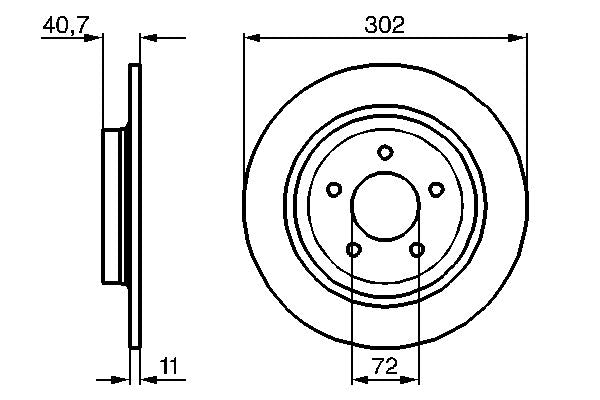

The Bosch 0986479233 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 302 mm outer diameter, 11 mm brake disc thickness, 9 mm minimum thickness, and solid disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Outer Diameter [mm] : 302
Brake Disc Thickness [mm] : 11
Minimum thickness [mm] : 9
Height [mm] : 40.8
Bolt Hole Circle Ø [mm] : 114.3
Brake Disc Type : solid
Centering Diameter [mm] : 72.02
Number of Holes : 5
Surface : Oiled
fulfils ECE standard : ECE-R90
Bore Diameter up to [mm] : 13.8
  • Vendor BOSCH
  • SKU 0986479233
  • Barcode 4047024094918
  • MAZDA : C23Y-26-251A C26Y-26-251 C26Y-26-251A
  • APEC : DSK2752
  • APEC : SDK6625
  • BLUE PRINT : ADM54393
  • BORG & BECK : BBD4522
  • BOSCH : 0 986 479 C69
  • BREMBO : 08.A711.10
  • BREMBO : 08.A711.11
  • DELPHI : BG4026
  • Fahren : FBD6625
  • FEBI BILSTEIN : 108465
  • FTE : 9072305
  • FTE : 9082204
  • HELLA : 8DD 355 112-901
  • MEYLE : 35-15 523 0016
  • MINTEX : MDC2202
  • NAPA : NBD5594
  • National : NBD1600
  • SKF : VKBD 90777 S2
  • TEXTAR : 92148200
  • TRW : DF4468
  • VALEO : 672955
  • BOSCH : BD1099
  • BOSCH : E1 90 R - 02C0100/0168
