Bosch 0986479239 Brake Disc
Your selected vehicle
Regular price
£52.15
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

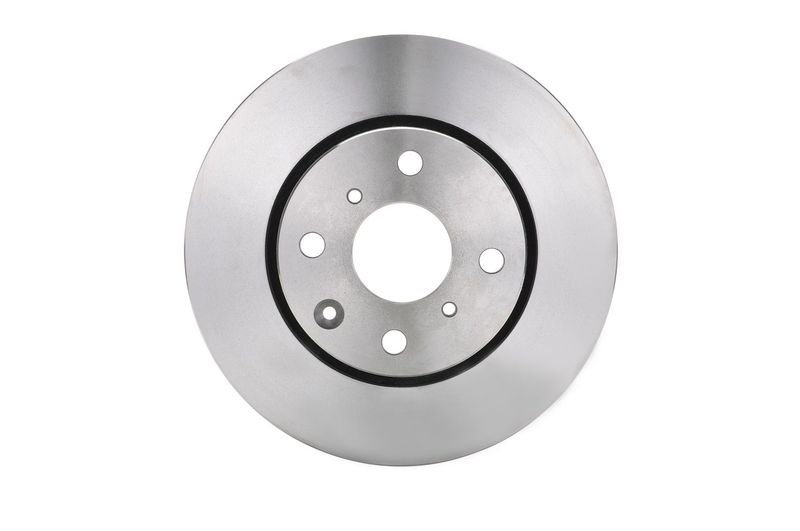

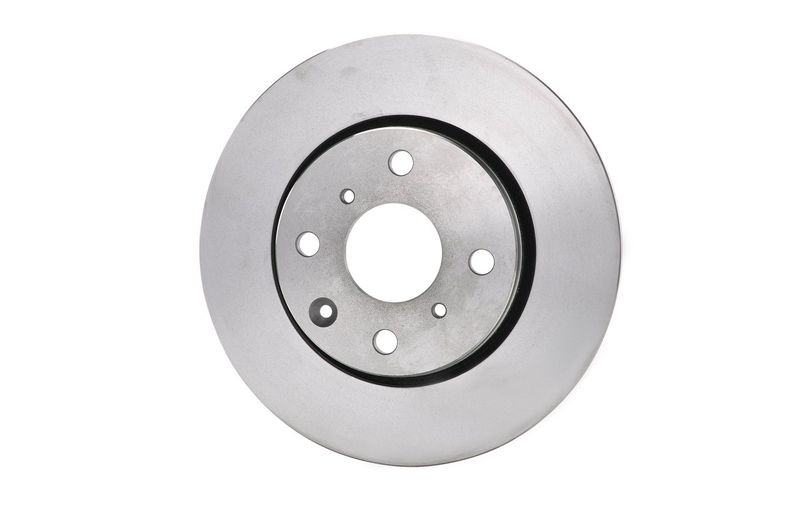

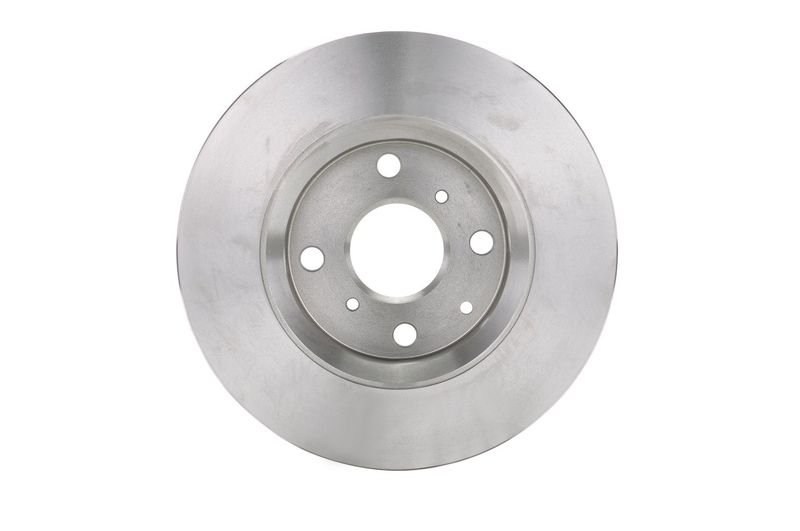

The Bosch 0986479239 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 247 mm outer diameter, 20 mm brake disc thickness, 18 mm minimum thickness, and vented and internally vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.
Function :
Brake Disc

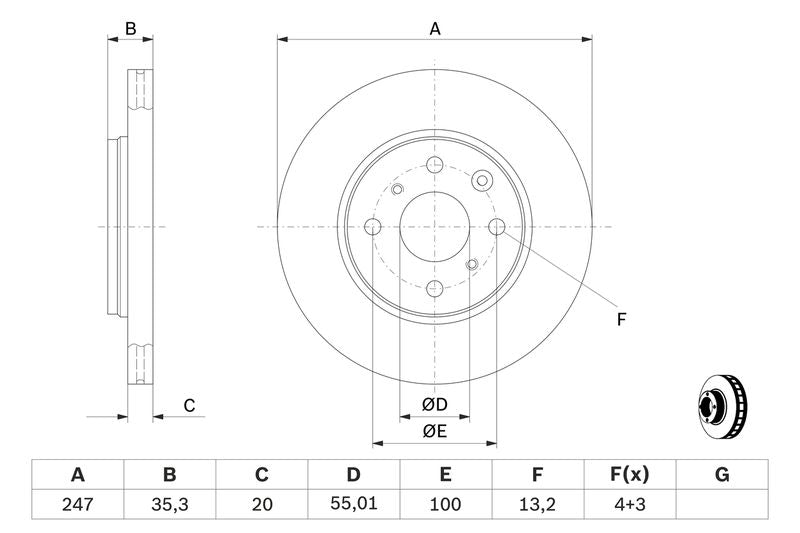

Outer Diameter [mm] :
247
Brake Disc Thickness [mm] :
20
Minimum thickness [mm] :
18
Height [mm] :
35.3
Bolt Hole Circle Ø [mm] :
100
Brake Disc Type :
Vented
Centering Diameter [mm] :
55
Number of Holes :
4
Surface :
Oiled
fulfils ECE standard :
ECE-R90
Bore Diameter up to [mm] :
13.2
Brake Disc Type :
internally vented
- Vendor BOSCH
- SKU 0986479239
- CITROËN : 16 138 198 80 4246 F0 4246 J0 4249 54 4249 55 4249 94
- PEUGEOT : 16 138 198 80 4246 F0 4246 J0 4249 F0 4249 54 4249 55 4249 94
- TOYOTA : 435120H010 435120H020 435120H040
- KIA : 43512 0H020 43512 0H040
- JAC : 3501030U8050
- CHERY : 1014030451
- BYD : LK3501124
- APEC : DSK2411
- APEC : SDK6101
- BLUE PRINT : ADT343198
- BORG & BECK : BBD4534
- BOSCH : 0 986 479 B91
- BREMBO : 09.9928.11
- BREMBO : 09.9928.14
- DELPHI : BG3976
- Fahren : FBD6101
- FEBI BILSTEIN : 30636
- FTE : 9072525
- FTE : 9082418
- FTE : 9082775
- HELLA : 8DD 355 112-311
- MEYLE : 11-15 521 0037
- MEYLE : 11-15 521 0037/PD
- MINTEX : MDC1733
- MINTEX : MDC1733C
- NAPA : NBD5005
- National : NBD1366
- SKF : VKBD 80043 V2
- TEXTAR : 92141903
- TRW : DF4469
- VALEO : 197047
- VALEO : 672562
- VALEO : 672914
- BOSCH : BD1105
- BOSCH : E1 90R-02C0141/0089
