BOSCH

Bosch 0986479251 Brake Disc

SKU: 0986479251
Your selected vehicle
Out of stock
Out of Stock
£78.72 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

AUDI
Q7 (4LB)
Description Cylinder Capacity Horse Power Year
3.0 TDI quattro 2967 CCM 224 HP 06/2009 - 05/2012
3.0 TDI quattro 2967 CCM 245 HP 05/2011 - 08/2015
3.0 TFSI quattro 2995 CCM 280 HP 05/2011 - 08/2015
4.2 FSI quattro 4163 CCM 350 HP 03/2006 - 05/2010
3.0 TDI quattro 2967 CCM 233 HP 03/2006 - 05/2008
3.6 FSI quattro 3597 CCM 280 HP 08/2006 - 05/2010
3.0 TDI quattro 2967 CCM 211 HP 03/2006 - 05/2010
4.2 TDI quattro 4134 CCM 326 HP 03/2007 - 06/2009
3.0 TDI quattro 2967 CCM 240 HP 11/2007 - 08/2015
6.0 TDI quattro 5934 CCM 500 HP 09/2008 - 05/2014
4.2 TDI quattro 4134 CCM 340 HP 05/2009 - 08/2015
3.0 TFSI quattro 2995 CCM 272 HP 05/2010 - 08/2015
3.0 TFSI quattro 2995 CCM 333 HP 05/2010 - 08/2015
3.0 TDI quattro 2967 CCM 204 HP 05/2010 - 08/2015
PORSCHE
CAYENNE (9PA)
Description Cylinder Capacity Horse Power Year
S 4.5 4511 CCM 340 HP 09/2002 - 09/2007
Turbo 4.5 4511 CCM 450 HP 09/2002 - 09/2007
3.6 3598 CCM 290 HP 02/2007 - 09/2010
S 4.8 4806 CCM 385 HP 02/2007 - 09/2010
Turbo S 4.8 4806 CCM 500 HP 02/2007 - 09/2010
GTS 4.8 4806 CCM 405 HP 10/2007 - 09/2010
3.0 TDI 2967 CCM 240 HP 02/2009 - 09/2010
Turbo S 4.8 4806 CCM 550 HP 08/2008 - 09/2010
Turbo S 4.8 4806 CCM 540 HP 02/2007 - 09/2010
CAYENNE (92A)
Description Cylinder Capacity Horse Power Year
4.8 Turbo 4806 CCM 500 HP 06/2010 - 05/2014
3.0 Diesel 2967 CCM 239 HP 06/2010 - 05/2018
3.0 Diesel 2967 CCM 245 HP 06/2011 - 05/2018
4.8 Turbo 4806 CCM 540 HP 06/2010 - 05/2014
3.0 Diesel 2967 CCM 211 HP 06/2010 - 05/2018
3.6 3598 CCM 300 HP 06/2010 - 12/2018
4.8 S 4806 CCM 400 HP 06/2010 - 05/2014
4.8 GTS 4806 CCM 420 HP 06/2012 - 05/2018
4.2 S Diesel 4134 CCM 382 HP 10/2012 - 05/2014
4.8 Turbo S 4806 CCM 550 HP 10/2012 - 05/2014
3.0 Diesel 2967 CCM 262 HP 10/2014 - 05/2018
VW
TOUAREG (7LA, 7L6, 7L7)
Description Cylinder Capacity Horse Power Year
3.2 V6 3189 CCM 220 HP 10/2002 - 11/2006
5.0 V10 TDI 4921 CCM 313 HP 10/2002 - 05/2010
4.2 V8 4172 CCM 310 HP 12/2002 - 11/2006
2.5 R5 TDI 2461 CCM 174 HP 01/2003 - 05/2010
3.2 V6 3189 CCM 241 HP 11/2004 - 11/2006
3.0 V6 TDI 2967 CCM 225 HP 11/2004 - 05/2010
6.0 W12 5998 CCM 450 HP 08/2004 - 05/2010
3.6 V6 FSI 3597 CCM 280 HP 10/2005 - 05/2010
4.2 V8 FSI 4163 CCM 350 HP 06/2006 - 05/2010
5.0 R50 TDI 4921 CCM 350 HP 08/2007 - 05/2010
3.0 V6 TDI 2967 CCM 240 HP 11/2007 - 05/2010
2.5 R5 TDI 2461 CCM 163 HP 08/2003 - 05/2010
3.0 TDI 2967 CCM 211 HP 04/2006 - 05/2010

The Bosch 0986479251 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 350 mm outer diameter, 34 mm brake disc thickness, 32 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

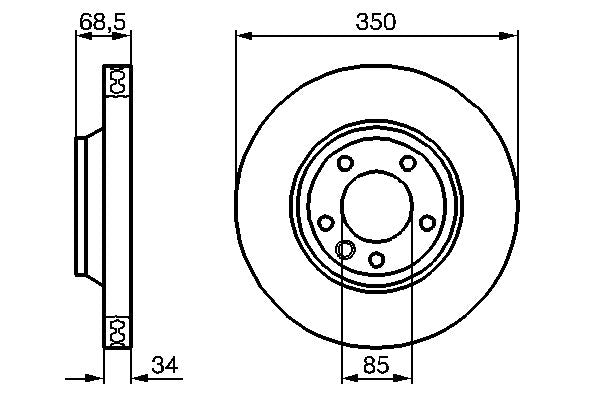

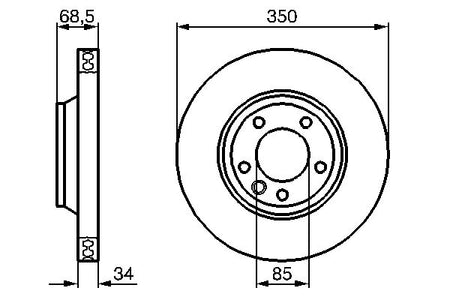

Outer Diameter [mm] : 350
Brake Disc Thickness [mm] : 34
Minimum thickness [mm] : 32
Height [mm] : 68.5
Bolt Hole Circle Ø [mm] : 130
Brake Disc Type : Vented
Centering Diameter [mm] : 85
Number of Holes : 5
Surface : Coated
Machining : Alloyed/High-carbon
fulfils ECE standard : ECE-R90
Bore Diameter up to [mm] : 15.4
Paired article number : 0 986 479 249
  • Vendor BOSCH
  • SKU 0986479251
  • Barcode 4047024202146
  • AUDI : 7L6 615 302 K 7L8615302
  • PORSCHE : 955 351 402 50 955 351 402 51
  • VW : 7L6 615 302 E 7L6 615 302 K 7L8615302 955 351 402 50 955 351 402 51
  • APEC : DSK2311
  • APEC : DSK2311B
  • APEC : SDK6412
  • BLUE PRINT : ADV184360
  • BORG & BECK : BBD5758S
  • BORG & BECK : BBD5759S
  • BREMBO : 09.A063.11
  • BREMBO : 09.C882.11
  • BREMBO : 09.C882.1S
  • DELPHI : BG9950
  • DELPHI : BG9950C
  • FEBI BILSTEIN : 26653
  • FTE : 9081010
  • HELLA : 8DD 355 109-781
  • HELLA : 8DD 355 128-071
  • MEYLE : 115 521 1104
  • MEYLE : 183 521 1104/PD
  • MINTEX : MDC1611LC
  • MINTEX : MDC1611RC
  • NAPA : NBD5307
  • National : NBD1234
  • National : NBD1359
  • National : NBD1360
  • SKF : VKBD 81077 V1
  • TEXTAR : 92121800
  • TEXTAR : 92121805
  • TRW : DF4760S
  • VALEO : 197536
  • BOSCH : BD1116
  • BOSCH : E1 90R-02C0074/1645
