Bosch 0986479256 Brake Disc

SKU: 0986479256
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£48.89 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

HYUNDAI
i10 I (PA)
Description Cylinder Capacity Horse Power Year
1.1 1086 CCM 69 HP 04/2011 - 12/2013
1.2 1248 CCM 86 HP 04/2011 - 12/2013
1.1 LPG 1086 CCM 69 HP 04/2011 - 12/2013
1.1 1086 CCM 67 HP 01/2008 - 12/2013
1.1 CRDi 1120 CCM 75 HP 01/2008 - 12/2011
1.1 1086 CCM 65 HP 12/2007 - 12/2013
1.2 1248 CCM 78 HP 11/2008 - 12/2011
1.0 998 CCM 69 HP 01/2011 - 12/2013
1.1 1086 CCM 68 HP 11/2008 - 12/2013
KIA
PICANTO I (SA)
Description Cylinder Capacity Horse Power Year
1.1 1086 CCM 65 HP 04/2004 - 09/2011
1.0 999 CCM 61 HP 04/2004 - 04/2011
1.1 CRDi 1120 CCM 75 HP 10/2005 - 04/2011
1.0 999 CCM 63 HP 09/2007 - 04/2011
PICANTO II (TA)
Description Cylinder Capacity Horse Power Year
1.0 998 CCM 69 HP 05/2011 - 03/2017
1.0 Bi-Fuel 998 CCM 82 HP 05/2011 - 10/2014
1.2 1248 CCM 85 HP 05/2011 - 12/2016
1.0 LPG 998 CCM 67 HP 08/2013 - 03/2017
1.0 998 CCM 67 HP 05/2011 - 03/2017
1.2 1248 CCM 87 HP 09/2011 - 02/2017
PICANTO III (JA)
Description Cylinder Capacity Horse Power Year
1.0 998 CCM 67 HP From 03/2017
1.2 1248 CCM 84 HP From 03/2017
1.0 T-GDi 998 CCM 100 HP From 03/2017
1.0 998 CCM 69 HP From 03/2017
1.0 LPG 998 CCM 65 HP From 11/2018
1.2 MPI 1197 CCM 84 HP From 07/2020
1.0 998 CCM 63 HP From 05/2024
1.2 DPI 1197 CCM 79 HP From 05/2024

The Bosch 0986479256 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 234 mm outer diameter, 10 mm brake disc thickness, 8.4 mm minimum thickness, and solid disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

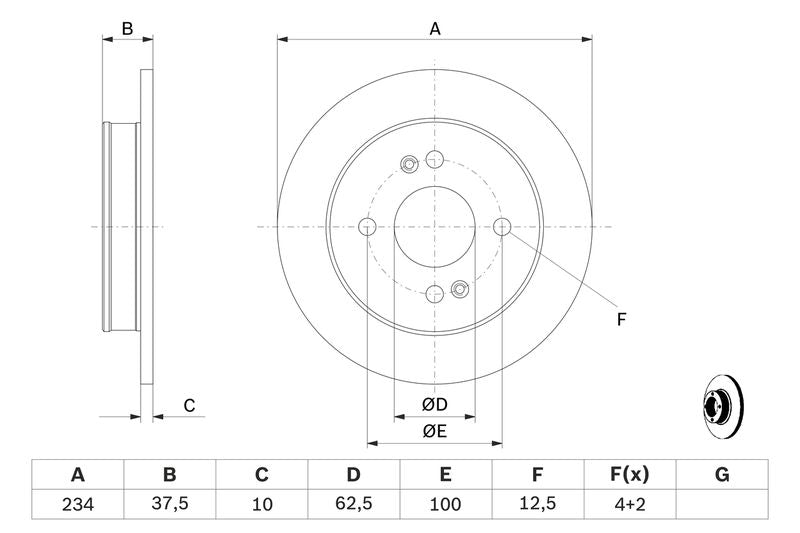

Function : Brake Disc
Outer Diameter [mm] : 234
Brake Disc Thickness [mm] : 10
Minimum thickness [mm] : 8.4
Height [mm] : 37.5
Bolt Hole Circle Ø [mm] : 100
Brake Disc Type : solid
Centering Diameter [mm] : 62.5
Number of Holes : 4
Surface : Oiled
Supplementary Article/Supplementary Info 2 : with bolts/screws
fulfils ECE standard : ECE-R90
Bore Diameter up to [mm] : 12.5
  • Vendor BOSCH
  • SKU 0986479256
  • Barcode 4047024226982
  • HYUNDAI : 58411 0X500 58411 07300
  • KIA : 58411 07300 58411 07500
  • APEC : DSK2496
  • APEC : SDK6177
  • BLUE PRINT : ADG04396
  • BORG & BECK : BBD4529
  • BOSCH : 0 986 479 B95
  • BREMBO : 08.A916.10
  • DELPHI : BG3981C
  • Fahren : FBD6177
  • FEBI BILSTEIN : 108389
  • FTE : 9072224
  • FTE : 9082151
  • HELLA : 8DD 355 112-801
  • MEYLE : 37-15 523 0014
  • MINTEX : MDC1726
  • NAPA : NBD5241
  • National : NBD1343
  • SKF : VKBD 90474 S2
  • TEXTAR : 92147200
  • TEXTAR : 92147203
  • TRW : DF4801
  • VALEO : 197511
  • VALEO : 672725
  • BOSCH : BD1134
  • BOSCH : E1 90 R - 02C0100/0378
