BOSCH

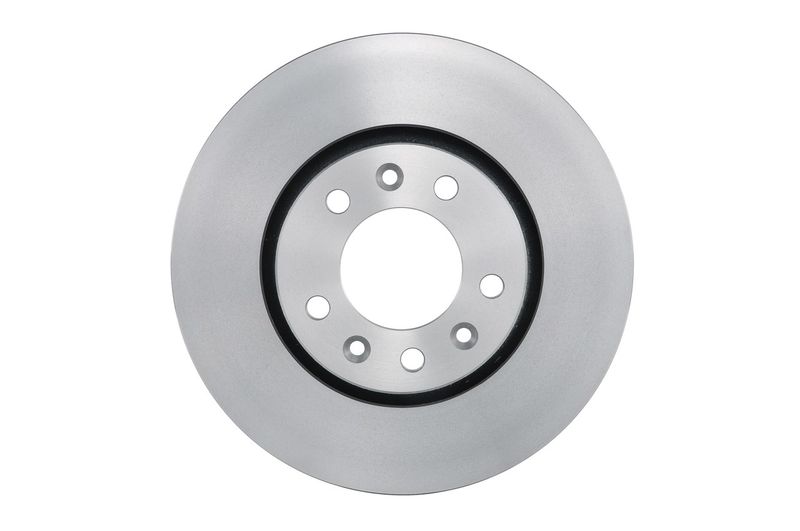

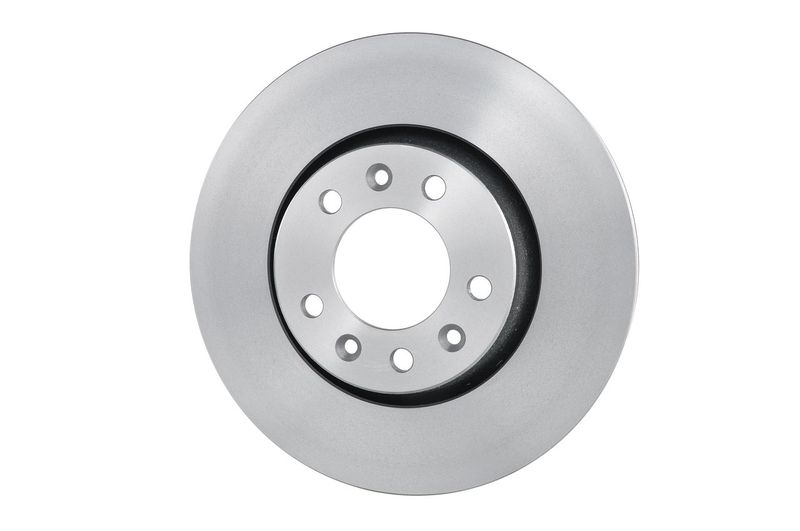

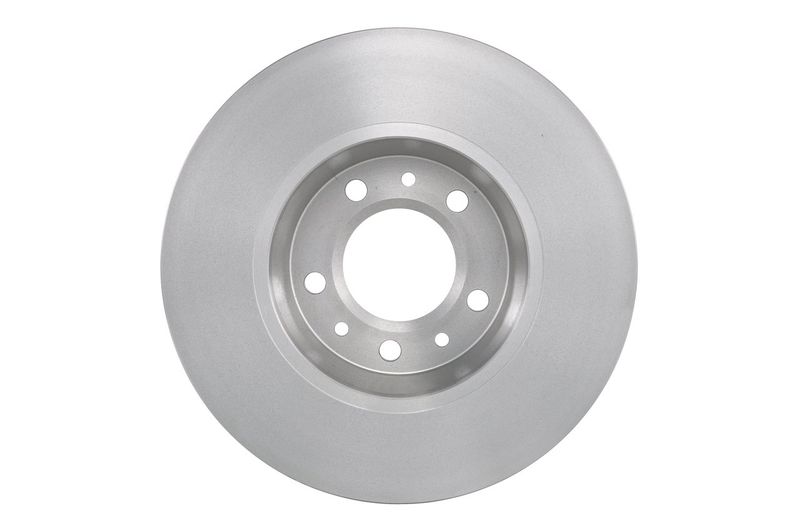

Bosch 0986479266 Brake Disc

SKU: 0986479266
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£101.66 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

CITROËN
DISPATCH II (VF7)
Description Cylinder Capacity Horse Power Year
1.6 HDi 90 16V 1560 CCM 90 HP 01/2007 - 03/2016
1.6 HDi 90 8V 1560 CCM 90 HP 01/2007 - 03/2016
DISPATCH II Van
Description Cylinder Capacity Horse Power Year
1.6 HDi 90 16V 1560 CCM 90 HP 01/2007 - 03/2016
1.6 HDi 90 8V 1560 CCM 90 HP 01/2007 - 03/2016
FIAT
SCUDO Platform/Chassis (270_, 272_)
Description Cylinder Capacity Horse Power Year
1.6 D Multijet 1560 CCM 90 HP 01/2007 - 03/2016
SCUDO Bus (270_, 272_)
Description Cylinder Capacity Horse Power Year
1.6 D Multijet 1560 CCM 90 HP 01/2007 - 03/2016
1.6 D Multijet 1560 CCM 90 HP 02/2011 - 03/2016
SCUDO Van (270_, 272_)
Description Cylinder Capacity Horse Power Year
1.6 D Multijet 1560 CCM 90 HP 01/2007 - 03/2016
1.6 D Multijet 1560 CCM 90 HP 02/2011 - 03/2016
PEUGEOT
EXPERT Platform/Chassis
Description Cylinder Capacity Horse Power Year
1.6 HDi 90 16V 1560 CCM 90 HP From 01/2007
1.6 HDi 90 8V 1560 CCM 90 HP From 01/2007
EXPERT TEPEE (VF3X_)
Description Cylinder Capacity Horse Power Year
1.6 HDi 90 16V 1560 CCM 90 HP 01/2007 - 03/2016
1.6 HDi 90 8V 1560 CCM 90 HP 01/2007 - 03/2016
EXPERT Van (VF3A_, VF3U_, VF3X_)
Description Cylinder Capacity Horse Power Year
1.6 HDi 90 16V 1560 CCM 90 HP From 01/2007
1.6 HDi 90 8V 1560 CCM 90 HP From 01/2007
TOYOTA
PROACE Van (MDX_)
Description Cylinder Capacity Horse Power Year
1.6 D (MDX9) 1560 CCM 90 HP 06/2013 - 03/2016
2.0 D (MDX3) 1997 CCM 128 HP 06/2013 - 03/2016
2.0 D (MDX6) 1997 CCM 163 HP 06/2013 - 03/2016

The Bosch 0986479266 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 280 mm outer diameter, 28 mm brake disc thickness, 26 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

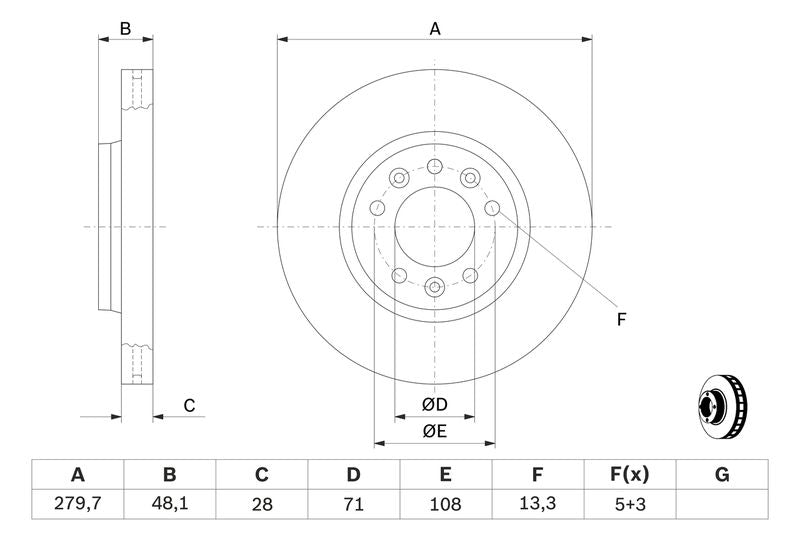

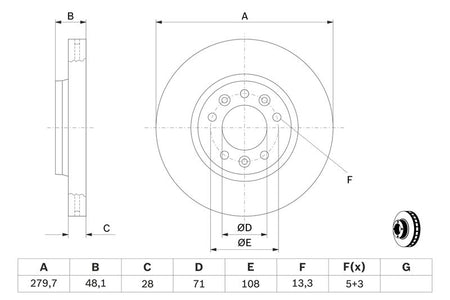

Function : Brake Disc
Outer Diameter [mm] : 280
Brake Disc Thickness [mm] : 28
Minimum thickness [mm] : 26
Height [mm] : 48.1
Bolt Hole Circle Ø [mm] : 108
Brake Disc Type : Vented
Centering Diameter [mm] : 71.07
Number of Holes : 5
Surface : Oiled
fulfils ECE standard : ECE-R90
Bore Diameter up to [mm] : 13.3
  • Vendor BOSCH
  • SKU 0986479266
  • Barcode 4047024227088
  • CITROËN : 4249 J9 4249 20 4249 21 4249 87
  • FIAT : K1401416880 K9404249878 K9467548387 1401416880 9404249878 9467548387
  • PEUGEOT : 4249 J9 4249 20 4249 21 4249 87
  • TOYOTA : SU001A1063
  • LEXUS : SU001A1063
  • APEC : DSK2610
  • APEC : SDK6188
  • BLUE PRINT : ADT343298
  • BORG & BECK : BBD4697
  • BREMBO : 09.A422.10
  • BREMBO : 09.A422.11
  • DELPHI : BG4084
  • Fahren : FBD6188
  • FEBI BILSTEIN : 108651
  • FTE : 9071093
  • HELLA : 8DD 355 113-661
  • MEYLE : 215 521 0033
  • MINTEX : MDC1844
  • NAPA : NBD5314
  • SKF : VKBD 80245 V1
  • TEXTAR : 92156903
  • TRW : DF4858S
  • TRW : DF6020S
  • VALEO : 197188
  • VALEO : 673308
  • BOSCH : BD1144
  • BOSCH : E1 90R-02C0289/1875
