BOSCH

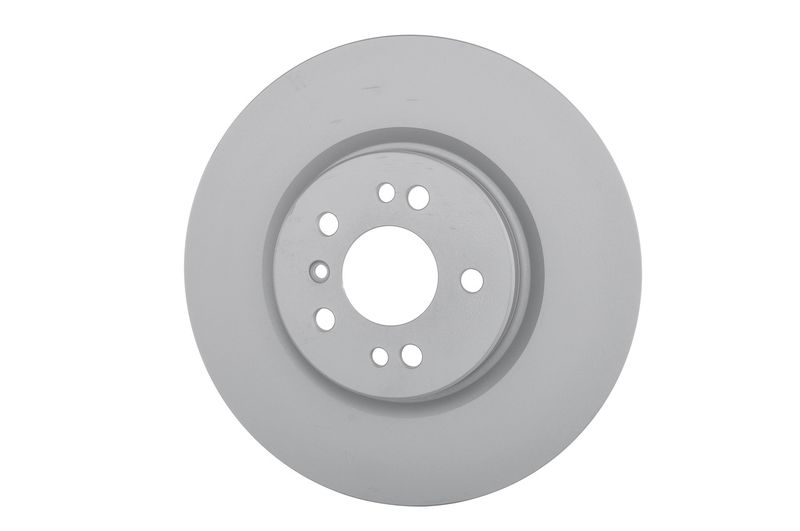

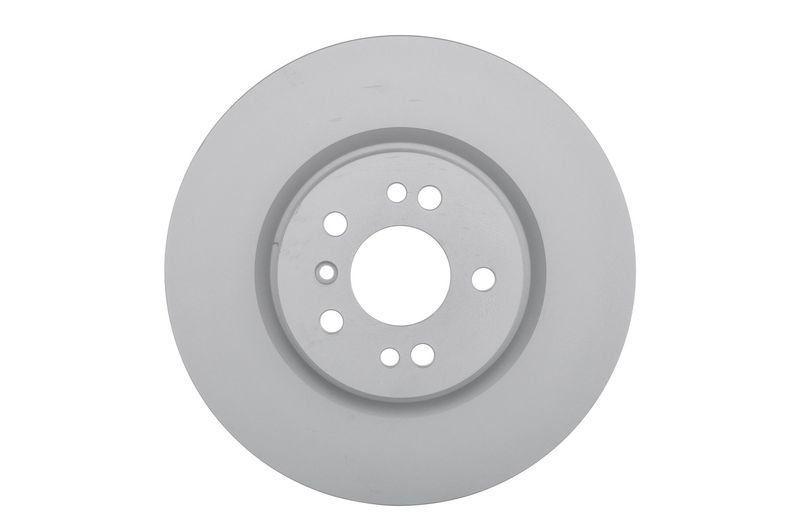

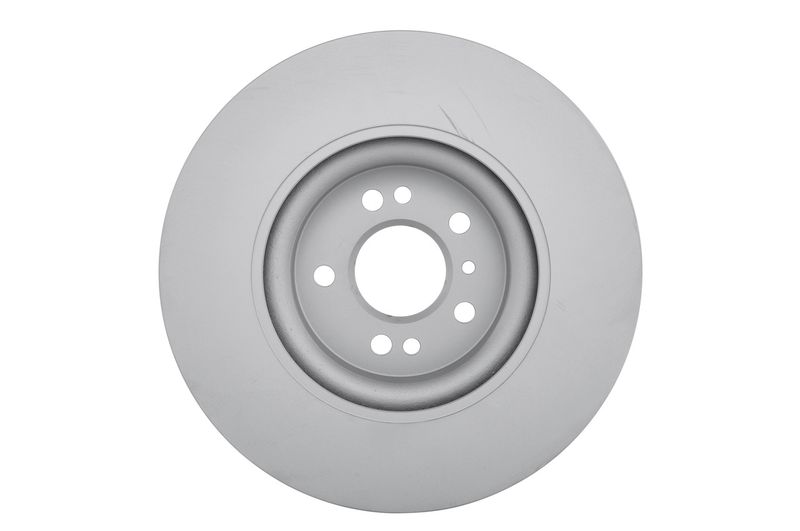

Bosch 0986479269 Brake Disc

SKU: 0986479269
Your selected vehicle
Only 3 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£62.43 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

MERCEDES-BENZ
M-CLASS (W164)
Description Cylinder Capacity Horse Power Year
ML 350 4-matic (164.186) 3498 CCM 272 HP 02/2005 - 12/2011
ML 280 CDI 4-matic (164.120) 2987 CCM 190 HP 07/2005 - 07/2009
ML 320 CDI 4-matic (164.122) 2987 CCM 224 HP 07/2005 - 07/2009
ML 300 CDI 4-matic (164.120) 2987 CCM 190 HP 07/2009 - 12/2011
ML 350 CDI 4-matic (164.122) 2987 CCM 224 HP 07/2009 - 12/2011
ML 350 CDI 4-matic (164.125, 164.124) 2987 CCM 211 HP 09/2009 - 12/2011
ML 300 CDI 4-matic (164.121) 2987 CCM 204 HP 02/2010 - 12/2011
ML 350 CDI 4-matic (164.125, 164.124) 2987 CCM 231 HP 02/2010 - 12/2011
ML 320 CDI 4-matic (164.124, 164.125, 164.122) 2987 CCM 211 HP 07/2005 - 07/2011
R-CLASS (W251, V251)
Description Cylinder Capacity Horse Power Year
R 350 CDI 4-matic (251.023, 251.123) 2987 CCM 265 HP 08/2010 - 12/2014
R 350 4-matic (251.065, 251.165) 3498 CCM 272 HP 07/2005 - 12/2012
R 320 CDI 4-matic (251.022, 251.122) 2987 CCM 224 HP 01/2006 - 07/2010
R 280 CDI 4-matic (251.020) 2987 CCM 190 HP 05/2006 - 12/2012
R 280 (251.054, 251.154) 2996 CCM 231 HP 01/2007 - 12/2014
R 350 (251.056, 251.156) 3498 CCM 272 HP 01/2007 - 12/2012
R 280 CDI (251.121, 251.026, 251.126) 2987 CCM 190 HP 05/2006 - 12/2012
R 300 CDI (251.021, 251.121, 251.026, 251.126) 2987 CCM 190 HP 07/2009 - 12/2012
R 300 CDI 4-matic (251.020) 2987 CCM 190 HP 07/2009 - 12/2012
R 350 CDI 4-matic (251.022, 251.122) 2987 CCM 224 HP 07/2009 - 12/2012
R 350 CDI 4-matic (251.124, 251.125) 2987 CCM 211 HP 01/2006 - 12/2014

The Bosch 0986479269 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 330 mm outer diameter, 32.2 mm brake disc thickness, 29.4 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

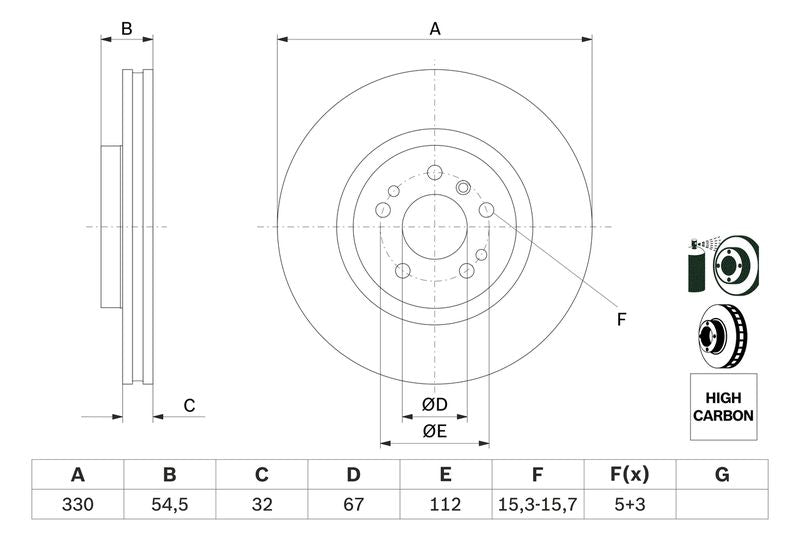

Function : Brake Disc
Outer Diameter [mm] : 330
Brake Disc Thickness [mm] : 32.2
Minimum thickness [mm] : 29.4
Height [mm] : 54.5
Bolt Hole Circle Ø [mm] : 112
Brake Disc Type : Vented
Centering Diameter [mm] : 67
Number of Holes : 5
Surface : Coated
Machining : Alloyed/High-carbon
fulfils ECE standard : ECE-R90
Bore Diameter up to [mm] : 15.2
  • Vendor BOSCH
  • SKU 0986479269
  • Barcode 4047024227118
  • MERCEDES-BENZ : A 164 421 04 12 A 164 421 13 12 164 421 04 12 164 421 13 12
  • APEC : DSK2366
  • APEC : SDK6438
  • BLUE PRINT : ADU174357
  • BORG & BECK : BBD5918S
  • BREMBO : 09.R104.11
  • DELPHI : BG9968
  • Fahren : FBD6438
  • FEBI BILSTEIN : 24743
  • FTE : 9071021
  • FTE : 9081026
  • HELLA : 8DD 355 113-171
  • HELLA : 8DD 355 128-581
  • MEYLE : 083 521 2097/PD
  • MINTEX : MDC2068
  • NAPA : NBD5524
  • National : NBD1701
  • SKF : VKBD 80172 V1
  • TEXTAR : 92150605
  • TRW : DF4471S
  • VALEO : 197092
  • VALEO : 673300
  • BOSCH : BD1147
  • BOSCH : E1 90R-02C0349/1481
