BOSCH

Bosch 0986479270 Brake Disc

SKU: 0986479270
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£67.63 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

RENAULT
MEGANE Scénic (JA0/1_)
Description Cylinder Capacity Horse Power Year
1.9 D (JA0J) 1870 CCM 64 HP 03/1997 - 09/1999
1.9 dTi (JA0N) 1870 CCM 98 HP 04/1997 - 09/1999
1.6 16V (JA0B, JA04, JA11, JA00) 1598 CCM 107 HP 04/1998 - 10/1999
2.0 i (JA02, JA0G) 1998 CCM 109 HP 01/1999 - 09/1999
MEGANE Scénic VAN (JA0/1_)
Description Cylinder Capacity Horse Power Year
1.9 DTi (JA0N) 1870 CCM 98 HP 04/1997 - 09/1999
MEGANE I Grandtour (KA0/1_)
Description Cylinder Capacity Horse Power Year
1.9 dTi (KA0N) 1870 CCM 98 HP 03/1999 - 02/2001
1.6 16V (KA0B, KA04, KA11) 1598 CCM 107 HP 03/1999 - 08/2003
1.9 dCi (KA05, KA1F) 1870 CCM 102 HP 02/2001 - 08/2003
1.9 dTi (KA1U) 1870 CCM 80 HP 02/2001 - 08/2003
1.8 16V (KA0S, KA12, KA1A, KA1M, KA1R) 1783 CCM 115 HP 01/2001 - 08/2003
SCÉNIC I MPV (JA0/1_, FA0_)
Description Cylinder Capacity Horse Power Year
1.4 16V (JA0D, JA1H, Ja0W, JA10) 1390 CCM 95 HP 09/1999 - 08/2003
2.0 16V (JA1D, JA17) 1998 CCM 140 HP 09/1999 - 08/2003
1.9 dTi (JA0N) 1870 CCM 98 HP 09/1999 - 08/2003
2.0 16V (JA1B, JA1D, JA0C) 1998 CCM 139 HP 07/2000 - 08/2003
1.9 dCi (JA05, JA1F) 1870 CCM 102 HP 09/1999 - 08/2003
1.9 dTi (JA1U) 1870 CCM 80 HP 02/2001 - 08/2003
1.8 16V (JA12, JA1R, JA1M, JA1A) 1783 CCM 115 HP 01/2001 - 08/2003
1.6 1598 CCM 102 HP 03/2001 - 08/2003
1.6 (JA00) 1598 CCM 110 HP 06/2001 - 09/2003
1.6 BiFuel 1598 CCM 102 HP 03/2001 - 08/2003
1.6 BiFuel (JA04) 1598 CCM 107 HP 09/1999 - 04/2001
1.6 (JA00, JA16, JA15, JA19, JA1V, JA2B, JA2C, JA0B,... 1598 CCM 107 HP 09/1999 - 09/2003

The Bosch 0986479270 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 274 mm outer diameter, 11 mm brake disc thickness, 9.5 mm minimum thickness, and solid disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

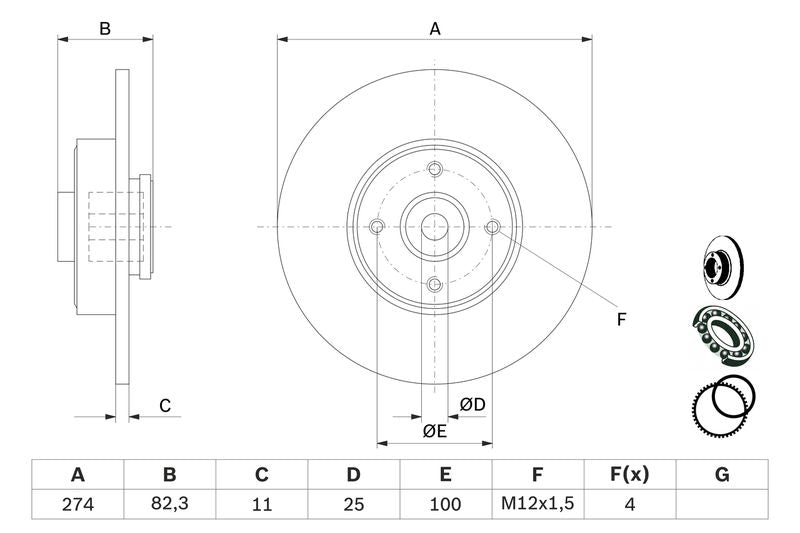

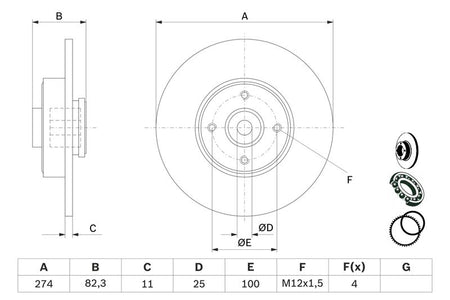

Function : Brake Disc
Outer Diameter [mm] : 274
Brake Disc Thickness [mm] : 11
Minimum thickness [mm] : 9.5
Height [mm] : 82.3
Bolt Hole Circle Ø [mm] : 100
Brake Disc Type : solid
Centering Diameter [mm] : 61.98
Number of Holes : 4
Surface : Oiled
Supplementary Article/Supplementary Info 2 : with wheel bearing
Supplementary Article/Supplementary Info 2 : with ABS sensor ring
fulfils ECE standard : ECE-R90
Inner Diameter [mm] : 25
  • Vendor BOSCH
  • SKU 0986479270
  • Barcode 4047024116306
  • RENAULT : 77 01 206 327 77 01 206 328 86 60 001 815 86 71 018 263
  • APEC : DSK2233
  • APEC : SDK6374
  • BLUE PRINT : ADR164324
  • BORG & BECK : BBD5721S
  • BREMBO : 08.A238.47
  • DELPHI : BG9029RS
  • FEBI BILSTEIN : 24290
  • FTE : 9071387
  • FTE : 9081155
  • HELLA : 8DD 355 112-211
  • MEYLE : 16-15 523 0003
  • MEYLE : 16-15 523 4113
  • MINTEX : MDC1566
  • NAPA : NBD5220
  • National : NBD1181
  • SKF : VKBD 1006
  • TEXTAR : 92141403
  • TRW : DF4272
  • TRW : DF4272BS
  • VALEO : 675401
  • BOSCH : BD1119
  • BOSCH : E1 90R-02C0310/0074
