BOSCH

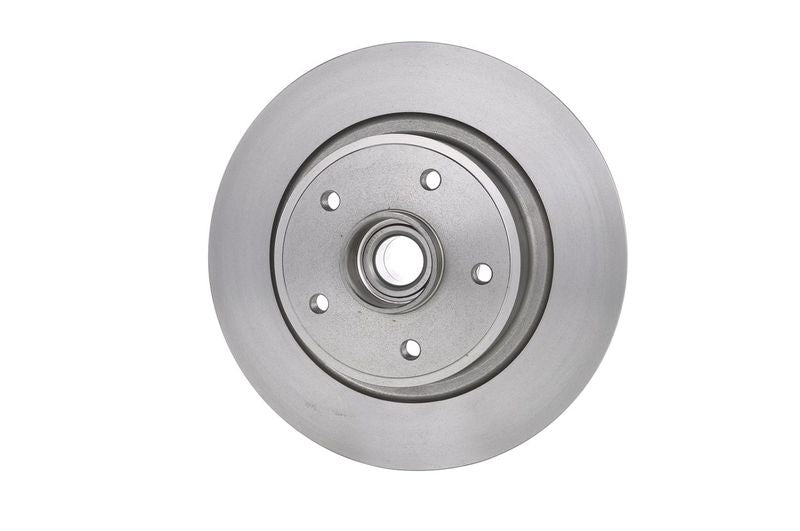

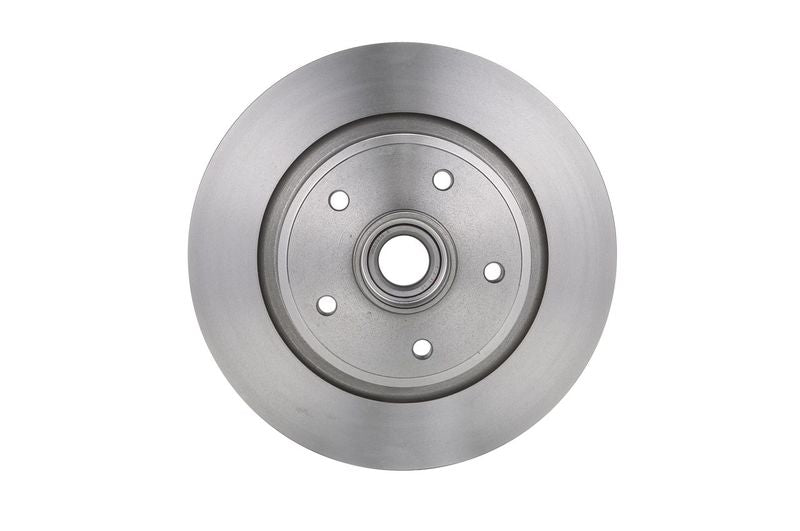

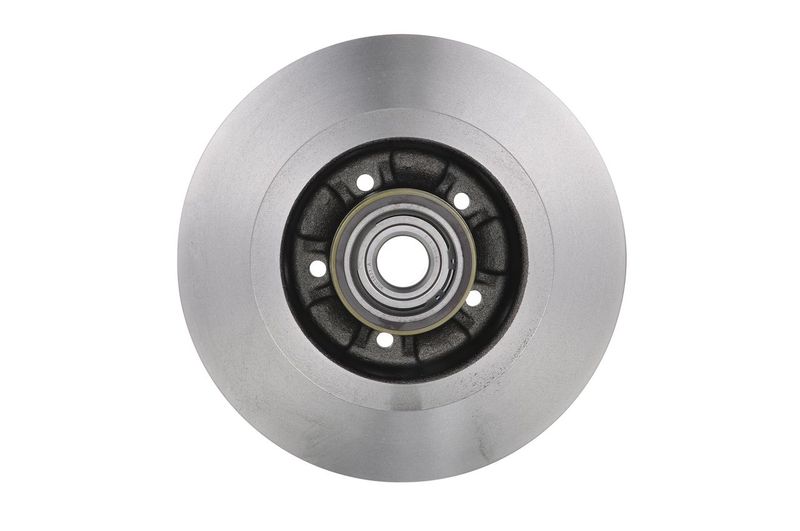

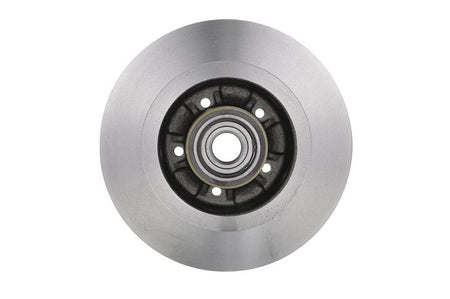

Bosch 0986479273 Brake Disc

SKU: 0986479273

Your selected vehicle

Only 2 left

Low inventory - Hurry! — Order by 17:00 for same-day dispatch

£76.89 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

RENAULT

GRAND SCÉNIC II (JM0/1_)

Description	Cylinder Capacity	Horse Power	Year
2.0 dCi (JM1K)	1995 CCM	150 HP	09/2005 - 11/2008

LAGUNA II (BG0/1_)

Description	Cylinder Capacity	Horse Power	Year
1.6 16V (BG0A, BG0L)	1598 CCM	107 HP	03/2001 - 05/2005
1.8 16V (BG0B, BG0C, BG0J, BG0M, BG0V)	1783 CCM	121 HP	03/2001 - 05/2005
3.0 V6 24V (BG01, BG02, BG0D, BG0Y)	2946 CCM	207 HP	03/2001 - 08/2007
1.9 dCi (BG08, BG0G)	1870 CCM	120 HP	03/2001 - 09/2007
2.0 16V IDE (BG0N)	1998 CCM	140 HP	04/2001 - 09/2007
1.9 dCI (BG0E)	1870 CCM	105 HP	06/2001 - 05/2005
2.2 dCi (BG0F)	2188 CCM	150 HP	10/2001 - 08/2006
1.8 16V (BG0B, BG0M)	1783 CCM	120 HP	03/2001 - 09/2007
1.8 16V (BG06, BG0J, BG0M)	1783 CCM	116 HP	03/2001 - 12/2007
1.9 dCi (BG0R, BG0E)	1870 CCM	100 HP	10/2001 - 05/2005
2.0 16V (BG00, BG0K, BG0P, BG0W)	1998 CCM	135 HP	08/2002 - 12/2007
2.0 16V Turbo (BG0S, BG1L, BG1M)	1998 CCM	163 HP	01/2003 - 03/2005
1.9 dCi (BG05)	1870 CCM	92 HP	03/2004 - 05/2005
2.0 16V (BG03, BG0Z, BG0T, BG1Y)	1998 CCM	170 HP	01/2005 - 09/2007
2.0 16V (BG1Y)	1998 CCM	204 HP	01/2005 - 09/2007

LAGUNA II Sport Tourer (KG0/1_)

Description	Cylinder Capacity	Horse Power	Year
1.6 16V (KG0A, KG0L)	1598 CCM	107 HP	03/2001 - 12/2007
1.8 16V	1783 CCM	121 HP	03/2001 - 05/2005
3.0 V6 24V (KG0D, KG01)	2946 CCM	207 HP	03/2001 - 12/2007
1.9 dCi (KG0G)	1870 CCM	120 HP	03/2001 - 09/2007
2.0 16V IDE (KG0N)	1998 CCM	140 HP	04/2001 - 09/2007
1.9 dCI (KG0E)	1870 CCM	105 HP	06/2001 - 05/2005
2.2 dCi (KG0F)	2188 CCM	150 HP	10/2001 - 08/2006
1.8 16V (KG0J)	1783 CCM	116 HP	03/2001 - 05/2005
1.8 16V (KG0B, KG0M)	1783 CCM	120 HP	03/2001 - 05/2005
1.9 dCi (KG0E, KG0R)	1870 CCM	100 HP	10/2001 - 05/2005
2.0 16V (KG00, KG0K, KG0W, KG0P)	1998 CCM	135 HP	08/2002 - 12/2007
2.0 16V Turbo (KG0S, KG1L, KG03)	1998 CCM	163 HP	01/2003 - 08/2005
1.9 dCi (KG05)	1870 CCM	92 HP	03/2004 - 05/2005
2.0 16V (KG03, KG0Z, KG0T, KG1Y)	1998 CCM	170 HP	01/2005 - 09/2007
2.0 16V (KG1Y)	1998 CCM	204 HP	01/2005 - 09/2007

The Bosch 0986479273 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 274 mm outer diameter, 11 mm brake disc thickness, 9.5 mm minimum thickness, and solid disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

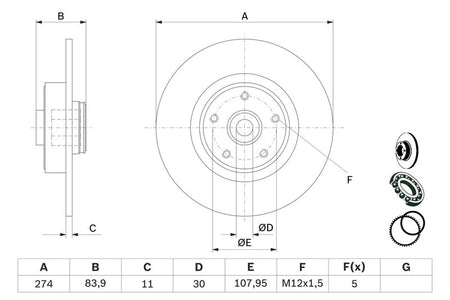

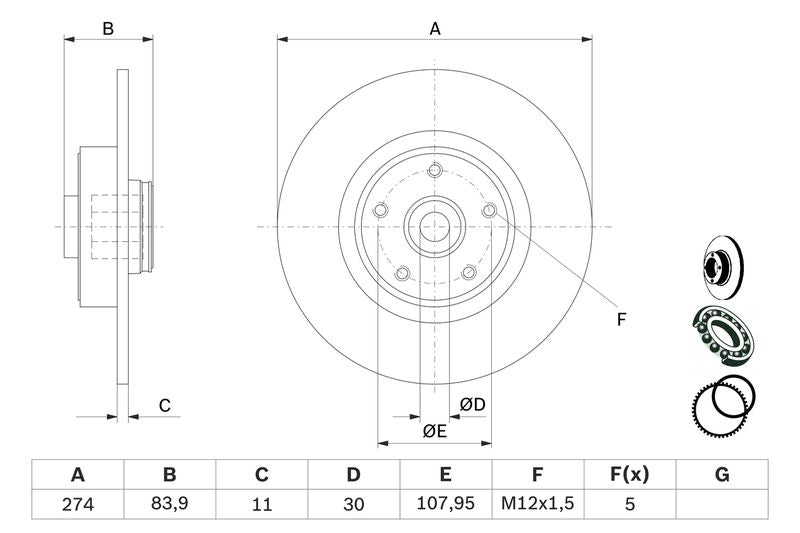

Function : Brake Disc

Outer Diameter [mm] : 274

Brake Disc Thickness [mm] : 11

Minimum thickness [mm] : 9.5

Height [mm] : 83.9

Bolt Hole Circle Ø [mm] : 107.95

Brake Disc Type : solid

Centering Diameter [mm] : 61.98

Number of Holes : 5

Surface : Oiled

Supplementary Article/Supplementary Info 2 : with wheel bearing

Supplementary Article/Supplementary Info 2 : with ABS sensor ring

fulfils ECE standard : ECE-R90

Inner Diameter [mm] : 30

APEC : DSK2234
APEC : SDK6375
BORG & BECK : BBD5742S
BREMBO : 08.9792.17
DELPHI : BG9026RS
FEBI BILSTEIN : 21299
FTE : 9071388
HELLA : 8DD 355 112-361
MEYLE : 16-15 523 0017
MEYLE : 16-15 523 4117
MEYLE : 16-15 523 4117/PD
MINTEX : MDC1681
National : NBD1299
SKF : VKBD 1007
TEXTAR : 92142203
TRW : DF4227
TRW : DF4227BS
VALEO : 675402

Bosch 0986479273 Brake Disc
