BOSCH

Bosch 0986479276 Brake Disc

SKU: 0986479276
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£89.57 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

RENAULT
ESPACE Mk IV (JK0/1_)
Description Cylinder Capacity Horse Power Year
2.0 Turbo (JK0A, JK0B, JK0N) 1998 CCM 163 HP 11/2002 - 02/2006
2.2 dCi (JK0H) 2188 CCM 150 HP 11/2002 - 08/2006
3.5 V6 (JK00, JK0F, JK0P, JK0S, JK0W) 3498 CCM 241 HP 11/2002 - 12/2015
3.0 dCi (JK0J, JK0V) 2958 CCM 177 HP 11/2002 - 08/2006
2.0 (JK09) 1998 CCM 136 HP 11/2002 - 01/2015
1.9 dCi (JK0U, JK0G) 1870 CCM 120 HP 11/2002 - 01/2015
2.0 (JK0A, JK1D, JK0N) 1998 CCM 170 HP 04/2005 - 12/2015
2.0 dCi (JK01, JK02, JK1J, JK1K, JK1H) 1995 CCM 150 HP 01/2006 - 12/2015
2.0 dCi (JK03, JK04, JK1C, JK1G, JK1J, JK1K) 1995 CCM 173 HP 01/2006 - 12/2015
3.0 dCi (JK0E, JK0Y) 2958 CCM 181 HP 01/2006 - 01/2015
2.2 dCi (JK07) 2188 CCM 139 HP 02/2006 - 12/2015
1.9 dCi (JK0U) 1870 CCM 116 HP 04/2003 - 02/2005
2.0 dCi (JK02, JK03) 1995 CCM 131 HP 01/2006 - 12/2015
2.0 (JK0K) 1998 CCM 133 HP 11/2002 - 12/2015
3.0 dCi 2958 CCM 163 HP 09/2005 - 01/2015
VEL SATIS (BJ0_)
Description Cylinder Capacity Horse Power Year
2.2 dCi (BJ0M) 2188 CCM 113 HP 12/2004 - 08/2009
2.0 16V Turbo (BJ0K) 1998 CCM 163 HP 06/2002 - 08/2009
3.5 V6 (BJ0R, BJ0V, BJ0U) 3498 CCM 241 HP 06/2002 - 08/2009
2.2 dCi (BJ0E, BJ0F) 2188 CCM 150 HP 06/2002 - 08/2009
3.0 dCi (BJ0J, BJ0N) 2958 CCM 177 HP 06/2002 - 06/2006
2.2 dCi (BJ0E, BJ0F, BJ0G, BJ0H) 2188 CCM 140 HP 09/2004 - 08/2009
2.0 16 V Turbo 1998 CCM 170 HP 04/2004 - 08/2009
2.2 dCi (BJ0H) 2188 CCM 116 HP 06/2002 - 09/2005
2.0 dCi (BJ03) 1995 CCM 150 HP 08/2005 - 08/2009
2.0 dCi (BJ03, BJ0B) 1995 CCM 173 HP 01/2006 - 08/2009
3.0 dCi (BJ0S) 2958 CCM 181 HP 06/2006 - 08/2009
3.5 (BJ01) 3498 CCM 231 HP 10/2004 - 08/2009

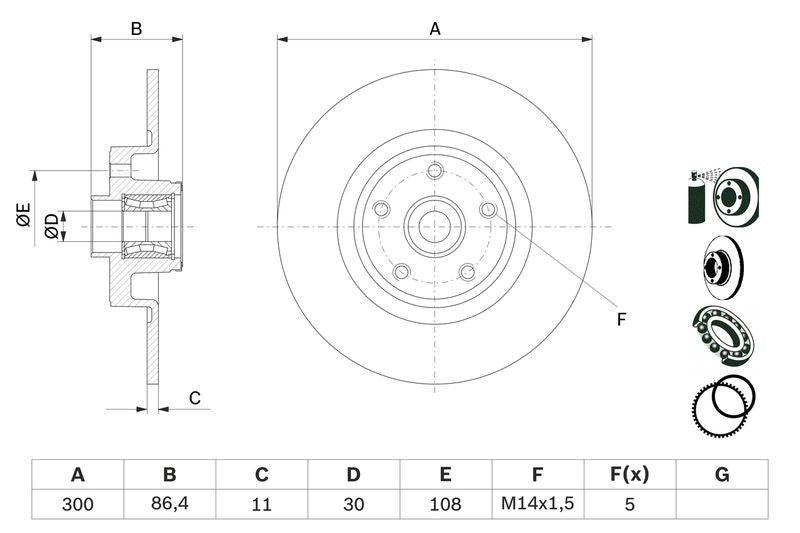

The Bosch 0986479276 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 300 mm outer diameter, 11 mm brake disc thickness, 9.5 mm minimum thickness, and solid disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Outer Diameter [mm] : 300
Brake Disc Thickness [mm] : 11
Minimum thickness [mm] : 9.5
Height [mm] : 86.4
Bolt Hole Circle Ø [mm] : 108
Brake Disc Type : solid
Centering Diameter [mm] : 61.98
Number of Holes : 5
Surface : Oiled
Supplementary Article/Supplementary Info 2 : with wheel bearing
Supplementary Article/Supplementary Info 2 : with ABS sensor ring
fulfils ECE standard : ECE-R90
Inner Diameter [mm] : 30
  • Vendor BOSCH
  • SKU 0986479276
  • Barcode 4047024227132
  • RENAULT : 40 20 216 51R 43 20 259 45R 43 20 290 79R 82 00 002 874 82 00 244 108 82 00 649 353
  • APEC : DSK2326
  • APEC : SDK6422
  • BLUE PRINT : ADR164336
  • BORG & BECK : BBD5785S
  • BREMBO : 08.A239.17
  • BREMBO : 08.A239.37
  • DELPHI : BG9024RS
  • Fahren : FBD6422
  • FEBI BILSTEIN : 44018
  • FTE : 9071390
  • HELLA : 8DD 355 123-321
  • MEYLE : 16-15 523 4118
  • MINTEX : MDC1889
  • National : NBD1644
  • SKF : VKBD 1010
  • TEXTAR : 92159800
  • TEXTAR : 92159803
  • TRW : DF4413BS
  • VALEO : 675400
  • BOSCH : BD1125
  • BOSCH : E1 90R-02C0310/0042
