BOSCH

Bosch 0986479286 Brake Disc

SKU: 0986479286

Your selected vehicle

In stock

Order by 17:00 for same-day dispatch

£39.91 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

HYUNDAI

i10 I (PA)

Description	Cylinder Capacity	Horse Power	Year
1.1	1086 CCM	69 HP	04/2011 - 12/2013
1.2	1248 CCM	86 HP	04/2011 - 12/2013
1.1 LPG	1086 CCM	69 HP	04/2011 - 12/2013
1.1	1086 CCM	67 HP	01/2008 - 12/2013
1.1	1086 CCM	65 HP	12/2007 - 12/2013
1.2	1248 CCM	78 HP	11/2008 - 12/2011
1.0	998 CCM	69 HP	01/2011 - 12/2013
1.1	1086 CCM	68 HP	11/2008 - 12/2013

i10 II (BA, IA)

Description	Cylinder Capacity	Horse Power	Year
1.0	998 CCM	67 HP	08/2013 - 12/2019
1.2	1248 CCM	87 HP	12/2013 - 12/2019

KIA

PICANTO I (SA)

Description	Cylinder Capacity	Horse Power	Year
1.1	1086 CCM	65 HP	04/2004 - 09/2011
1.0	999 CCM	61 HP	04/2004 - 04/2011
1.0	999 CCM	63 HP	09/2007 - 04/2011

PICANTO II (TA)

Description	Cylinder Capacity	Horse Power	Year
1.0	998 CCM	69 HP	05/2011 - 03/2017
1.0 Bi-Fuel	998 CCM	82 HP	05/2011 - 10/2014
1.2	1248 CCM	85 HP	05/2011 - 12/2016
1.0 LPG	998 CCM	67 HP	08/2013 - 03/2017
1.0	998 CCM	67 HP	05/2011 - 03/2017
1.2	1248 CCM	87 HP	09/2011 - 02/2017

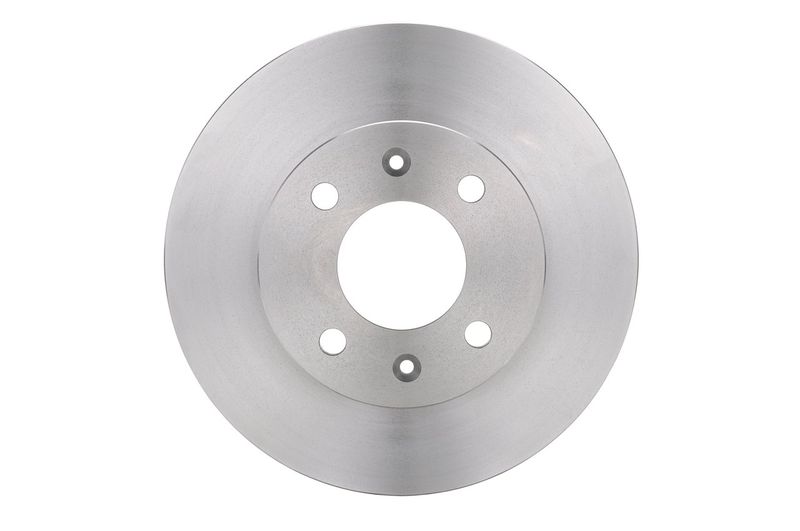

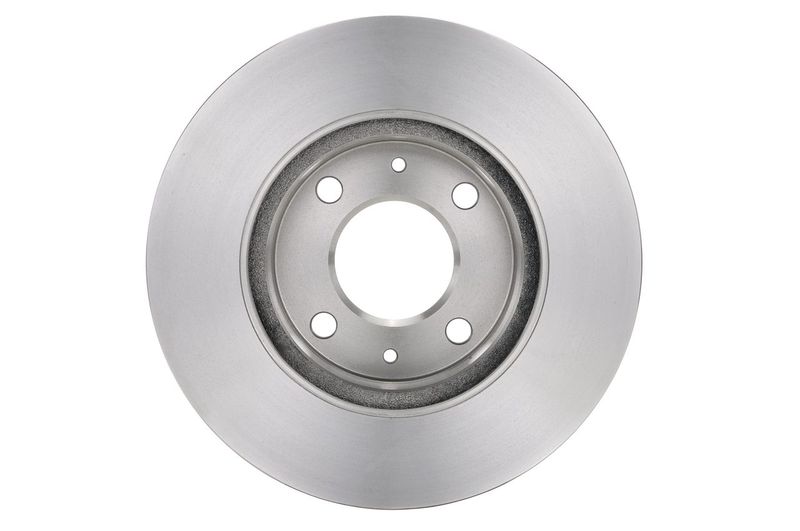

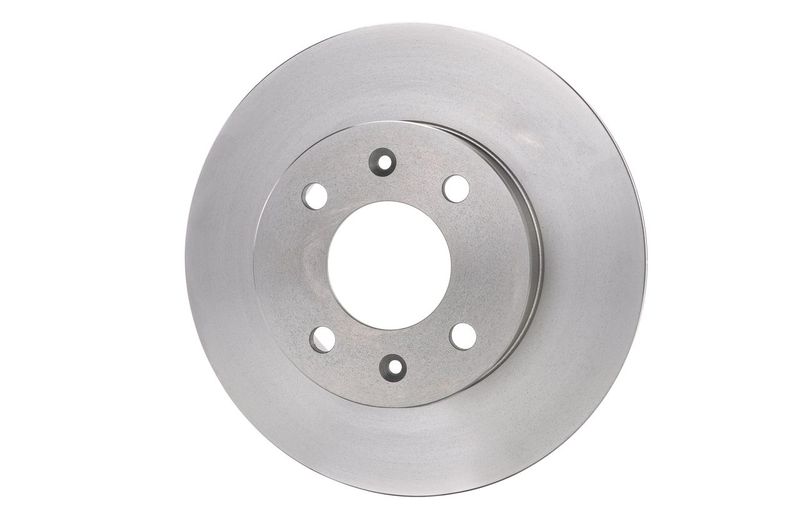

The Bosch 0986479286 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 241 mm outer diameter, 18 mm brake disc thickness, 16 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

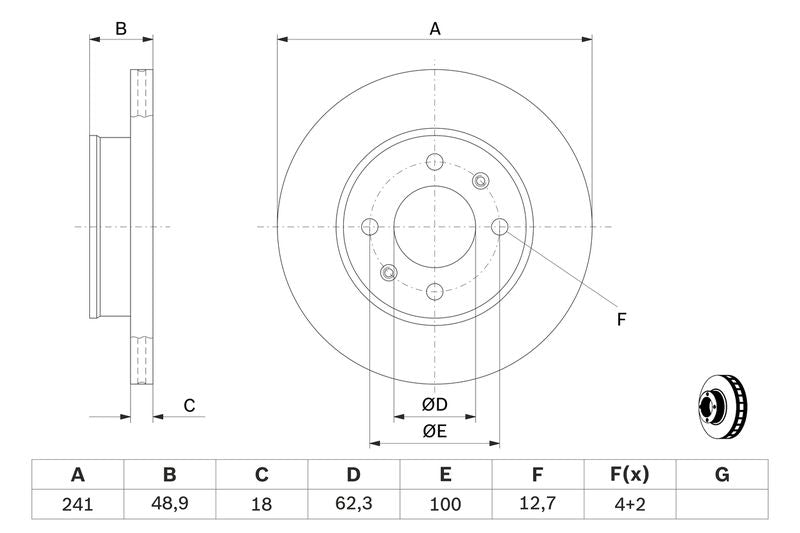

Function : Brake Disc

Outer Diameter [mm] : 241

Brake Disc Thickness [mm] : 18

Minimum thickness [mm] : 16

Height [mm] : 48.7

Bolt Hole Circle Ø [mm] : 100

Brake Disc Type : Vented

Centering Diameter [mm] : 62.2

Number of Holes : 4

Surface : Oiled

fulfils ECE standard : ECE-R90

Bore Diameter up to [mm] : 12.6

APEC : DSK2408
APEC : SDK6134
BLUE PRINT : ADG043143
BLUE PRINT : ADG04397
BORG & BECK : BBD4528
BREMBO : 09.9503.10
DELPHI : BG3935C
Fahren : FBD6134
FEBI BILSTEIN : 108448
FEBI BILSTEIN : 31552
FTE : 9072011
HELLA : 8DD 355 112-791
MEYLE : 28-15 521 0009
MINTEX : MDC1725
MINTEX : MDC1725C
NAPA : NBD5509
National : NBD1342
SKF : VKBD 80114 V2
TEXTAR : 92147103
TRW : DF4458
VALEO : 197096
VALEO : 672747

Bosch 0986479286 Brake Disc
