BOSCH

Bosch 0986479287 Brake Disc

SKU: 0986479287

Your selected vehicle

Only 3 left

Low inventory - Hurry! — Order by 17:00 for same-day dispatch

£59.00 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

LAND ROVER

DISCOVERY III (L319)

Description	Cylinder Capacity	Horse Power	Year
4.0 4x4	3999 CCM	218 HP	02/2005 - 09/2009
2.7 TD 4x4	2720 CCM	190 HP	07/2004 - 09/2009
4.0 V6 4x4	4009 CCM	218 HP	10/2004 - 09/2009

DISCOVERY III VAN (L319)

Description	Cylinder Capacity	Horse Power	Year
2.7 TD 4x4	2720 CCM	190 HP	01/2007 - 07/2009

DISCOVERY IV (L319)

Description	Cylinder Capacity	Horse Power	Year
2.7 TD 4x4	2720 CCM	190 HP	09/2009 - 12/2018
3.0 TD 4x4	2993 CCM	211 HP	05/2010 - 12/2018
3.0 4x4	2995 CCM	340 HP	08/2013 - 12/2018
4.0 4x4	4009 CCM	218 HP	09/2009 - 12/2018
3.0 SDV6 4x4	2993 CCM	256 HP	11/2009 - 12/2018
3.0 TD 4x4	2993 CCM	272 HP	09/2009 - 12/2018
3.0 TD 4x4	2993 CCM	245 HP	09/2009 - 12/2018
3.0 TD 4x4	2993 CCM	249 HP	07/2012 - 12/2018

DISCOVERY IV VAN (L319)

Description	Cylinder Capacity	Horse Power	Year
3.0 TD 4x4	2993 CCM	211 HP	01/2011 - 12/2017
3.0 TD 4x4	2993 CCM	245 HP	01/2011 - 12/2017
3.0 TD 4x4	2993 CCM	256 HP	01/2011 - 12/2017

RANGE ROVER SPORT I (L320)

Description	Cylinder Capacity	Horse Power	Year
2.7 D 4x4	2720 CCM	190 HP	02/2005 - 03/2013

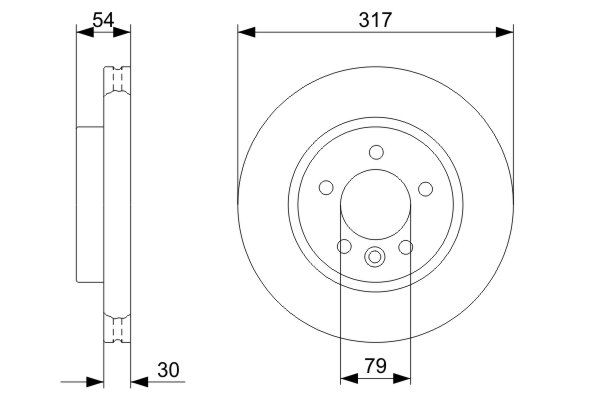

The Bosch 0986479287 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 317 mm outer diameter, 30 mm brake disc thickness, 27 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Outer Diameter [mm] : 317

Brake Disc Thickness [mm] : 30

Minimum thickness [mm] : 27

Height [mm] : 62

Bolt Hole Circle Ø [mm] : 120

Brake Disc Type : Vented

Centering Diameter [mm] : 79

Number of Holes : 5

Surface : Oiled

Machining : High-carbon

fulfils ECE standard : ECE-R90

Bore Diameter up to [mm] : 15

APEC : DSK2248
APEC : SDK6159
BLUE PRINT : ADJ134310
BORG & BECK : BBD5931S
BREMBO : 09.8873.30
BREMBO : 09.8873.31
DELPHI : BG9006C
Fahren : FBD6159
FEBI BILSTEIN : 43844
FTE : 9071046
HELLA : 8DD 355 118-641
MEYLE : 53-15 521 0013/PD
MINTEX : MDC1727C
NAPA : NBD5117
National : NBD1344
SKF : VKBD 80227 V1
TEXTAR : 92134505
TRW : DF4790
VALEO : 197155
VALEO : 673406
