BOSCH

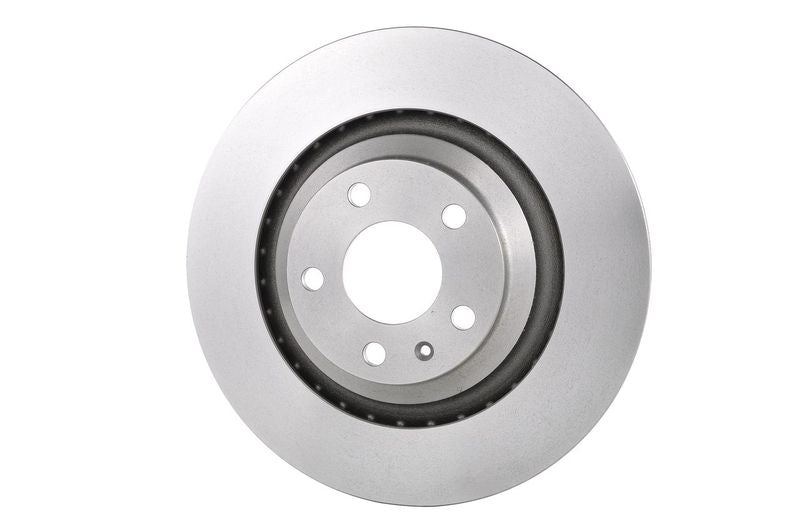

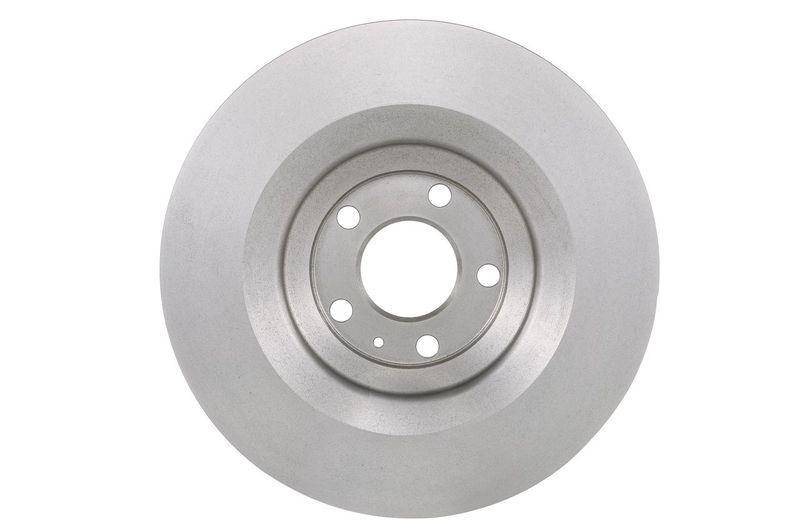

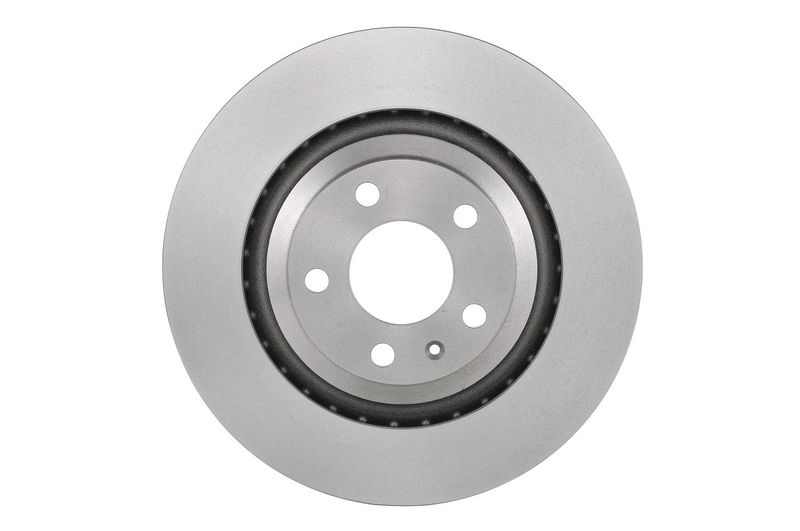

Bosch 0986479299 Brake Disc

SKU: 0986479299
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£104.74 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

AUDI
A6 C6 (4F2)
Description Cylinder Capacity Horse Power Year
3.0 TFSI quattro 2995 CCM 299 HP 10/2008 - 03/2011
3.2 FSI 3197 CCM 265 HP 05/2009 - 03/2011
2.4 2393 CCM 177 HP 05/2004 - 10/2008
3.2 FSI 3123 CCM 255 HP 05/2004 - 05/2009
3.2 FSI quattro 3123 CCM 255 HP 05/2004 - 10/2008
2.0 TDI 1968 CCM 140 HP 07/2004 - 10/2008
4.2 quattro 4163 CCM 335 HP 05/2004 - 03/2011
3.0 TDI quattro 2967 CCM 225 HP 05/2004 - 05/2006
3.0 TDI quattro 2967 CCM 211 HP 05/2004 - 03/2011
2.7 TDI 2698 CCM 180 HP 11/2004 - 10/2008
2.7 TDI 2698 CCM 163 HP 11/2004 - 03/2011
2.4 quattro 2393 CCM 177 HP 01/2005 - 10/2008
2.7 TDI quattro 2698 CCM 180 HP 11/2004 - 10/2008
2.0 TFSI 1984 CCM 170 HP 06/2005 - 03/2011
2.0 TDI 1968 CCM 136 HP 07/2004 - 03/2011
A6 C6 Avant (4F5)
Description Cylinder Capacity Horse Power Year
3.0 TFSI quattro 2995 CCM 299 HP 10/2008 - 08/2011
2.0 TDI 1968 CCM 140 HP 06/2005 - 10/2008
2.7 TDI 2698 CCM 163 HP 03/2005 - 08/2011
3.0 TDI quattro 2967 CCM 225 HP 03/2005 - 05/2006
3.2 FSI 3123 CCM 255 HP 03/2005 - 10/2008
3.2 FSI quattro 3123 CCM 255 HP 03/2005 - 10/2008
4.2 quattro 4163 CCM 335 HP 03/2005 - 05/2006
2.4 2393 CCM 177 HP 03/2005 - 10/2008
2.4 quattro 2393 CCM 177 HP 03/2005 - 10/2008
3.0 TDI quattro 2967 CCM 211 HP 03/2005 - 08/2011
2.7 TDI 2698 CCM 180 HP 03/2005 - 10/2008
2.7 TDI quattro 2698 CCM 180 HP 11/2004 - 10/2008
2.0 TFSI 1984 CCM 170 HP 06/2005 - 08/2011
2.0 TDI 1968 CCM 136 HP 06/2005 - 08/2011
2.7 TDI quattro 2698 CCM 163 HP 06/2005 - 08/2011

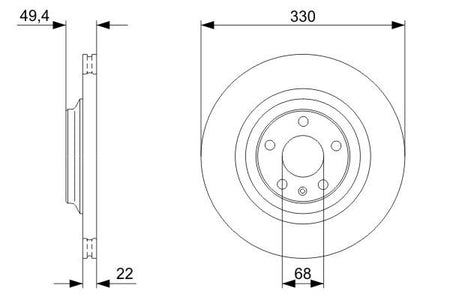

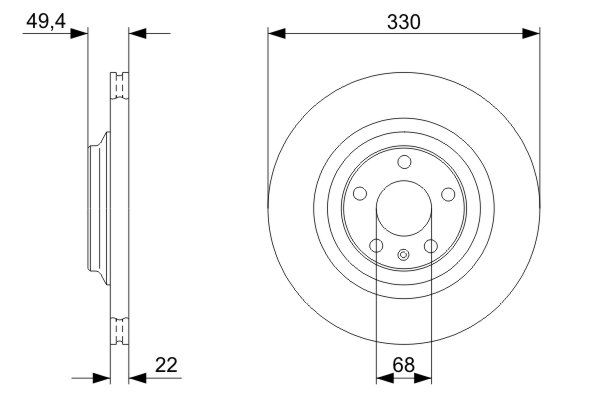

The Bosch 0986479299 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 330 mm outer diameter, 22 mm brake disc thickness, 20 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Outer Diameter [mm] : 330
Brake Disc Thickness [mm] : 22
Minimum thickness [mm] : 20
Height [mm] : 49.1
Bolt Hole Circle Ø [mm] : 112
Brake Disc Type : Vented
Centering Diameter [mm] : 68
Number of Holes : 5
Surface : Oiled
Machining : Alloyed/High-carbon
Bore Diameter up to [mm] : 15.3
  • Vendor BOSCH
  • SKU 0986479299
  • Barcode 4047024233706
  • AUDI : L4FD615601A 4F0 615 601 F
  • VW : L4FD615601A 4F0 615 601 F
  • BLUE PRINT : ADV184346
  • BORG & BECK : BBD4508
  • BOSCH : 0 986 479 C64
  • BREMBO : 09.8842.20
  • BREMBO : 09.8842.21
  • BREMBO : 09.8842.2X
  • DELPHI : BG3991
  • FEBI BILSTEIN : 26654
  • FTE : 9071136
  • FTE : 9081115
  • HELLA : 8DD 355 111-201
  • HELLA : 8DD 355 128-321
  • MEYLE : 115 523 0028
  • MEYLE : 115 523 0028/PD
  • MINTEX : MDC2249
  • SKF : VKBD 90371 V1
  • TEXTAR : 92132603
  • TRW : DF4818S
  • VALEO : 197314
  • VALEO : 673100
  • BOSCH : BD1162
