BOSCH

Bosch 0986479301 Brake Disc

SKU: 0986479301
Your selected vehicle
Out of stock
Out of Stock
£119.26 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

AUDI
A6 C6 (4F2)
Description Cylinder Capacity Horse Power Year
3.0 TFSI quattro 2995 CCM 299 HP 10/2008 - 03/2011
3.2 FSI 3197 CCM 265 HP 05/2009 - 03/2011
2.4 2393 CCM 177 HP 05/2004 - 10/2008
3.2 FSI 3123 CCM 255 HP 05/2004 - 05/2009
3.2 FSI quattro 3123 CCM 255 HP 05/2004 - 10/2008
2.0 TDI 1968 CCM 140 HP 07/2004 - 10/2008
3.0 TDI quattro 2967 CCM 225 HP 05/2004 - 05/2006
3.0 TDI quattro 2967 CCM 211 HP 05/2004 - 03/2011
2.7 TDI 2698 CCM 180 HP 11/2004 - 10/2008
2.7 TDI 2698 CCM 163 HP 11/2004 - 03/2011
2.4 quattro 2393 CCM 177 HP 01/2005 - 10/2008
2.7 TDI quattro 2698 CCM 180 HP 11/2004 - 10/2008
2.0 TFSI 1984 CCM 170 HP 06/2005 - 03/2011
2.0 TDI 1968 CCM 136 HP 07/2004 - 03/2011
A6 C6 Avant (4F5)
Description Cylinder Capacity Horse Power Year
3.0 TFSI quattro 2995 CCM 299 HP 10/2008 - 08/2011
2.0 TDI 1968 CCM 140 HP 06/2005 - 10/2008
2.7 TDI 2698 CCM 163 HP 03/2005 - 08/2011
3.0 TDI quattro 2967 CCM 225 HP 03/2005 - 05/2006
3.2 FSI 3123 CCM 255 HP 03/2005 - 10/2008
3.2 FSI quattro 3123 CCM 255 HP 03/2005 - 10/2008
2.4 2393 CCM 177 HP 03/2005 - 10/2008
2.4 quattro 2393 CCM 177 HP 03/2005 - 10/2008
3.0 TDI quattro 2967 CCM 211 HP 03/2005 - 08/2011
2.7 TDI 2698 CCM 180 HP 03/2005 - 10/2008
2.7 TDI quattro 2698 CCM 180 HP 11/2004 - 10/2008
2.0 TFSI 1984 CCM 170 HP 06/2005 - 08/2011
2.0 TDI 1968 CCM 136 HP 06/2005 - 08/2011
2.7 TDI quattro 2698 CCM 163 HP 06/2005 - 08/2011

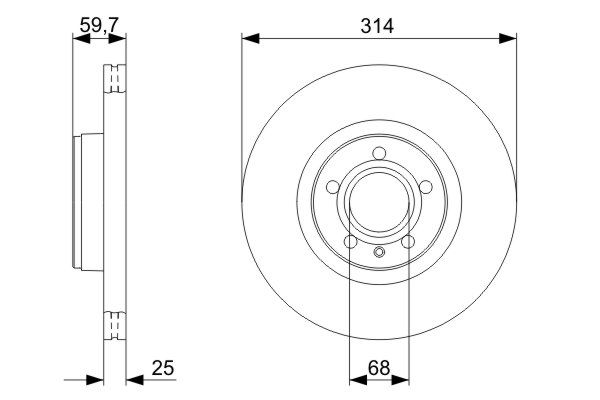

The Bosch 0986479301 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 314 mm outer diameter, 25 mm brake disc thickness, 23 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Outer Diameter [mm] : 314
Brake Disc Thickness [mm] : 25
Minimum thickness [mm] : 23
Height [mm] : 59.4
Bolt Hole Circle Ø [mm] : 112
Brake Disc Type : Vented
Centering Diameter [mm] : 68
Number of Holes : 5
Surface : Oiled
Machining : High-carbon
fulfils ECE standard : ECE-R90
Bore Diameter up to [mm] : 15.3
  • Vendor BOSCH
  • SKU 0986479301
  • Barcode 4047024233744
  • AUDI : L4FD615301 4F0 615 301 D
  • VW : L4FD615301 4F0 615 301 D
  • APEC : DSK2278
  • APEC : SDK6256
  • BLUE PRINT : ADV184343
  • BORG & BECK : BBD4509
  • BOSCH : 0 986 479 C70
  • BREMBO : 09.9540.11
  • BREMBO : 09.9540.14
  • DELPHI : BG3942
  • Fahren : FBD6256
  • FEBI BILSTEIN : 26648
  • FTE : 9071083
  • HELLA : 8DD 355 111-121
  • HELLA : 8DD 355 128-291
  • MEYLE : 115 521 1097
  • MEYLE : 183 521 1097/PD
  • MINTEX : MDC1742C
  • NAPA : NBD5328
  • National : NBD1379
  • SKF : VKBD 80305 V1
  • TEXTAR : 92132205
  • TRW : DF4470
  • VALEO : 197052
  • VALEO : 672548
  • BOSCH : BD1164
  • BOSCH : E1 90R-02C0289/0578
