Bosch 0986479305 Brake Disc - 1
Bosch 0986479305 Brake Disc - 2
Bosch 0986479305 Brake Disc - 3
Bosch 0986479305 Brake Disc - 4
Bosch 0986479305 Brake Disc - 5
Bosch 0986479305 Brake Disc - 6
Bosch 0986479305 Brake Disc - 1
Bosch 0986479305 Brake Disc - 2
Bosch 0986479305 Brake Disc - 3
Bosch 0986479305 Brake Disc - 4
Bosch 0986479305 Brake Disc - 5
Bosch 0986479305 Brake Disc - 6
BOSCH

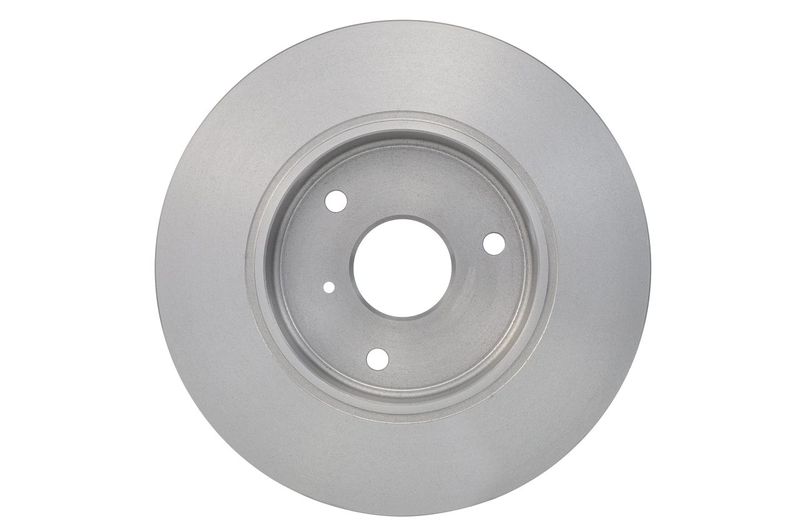

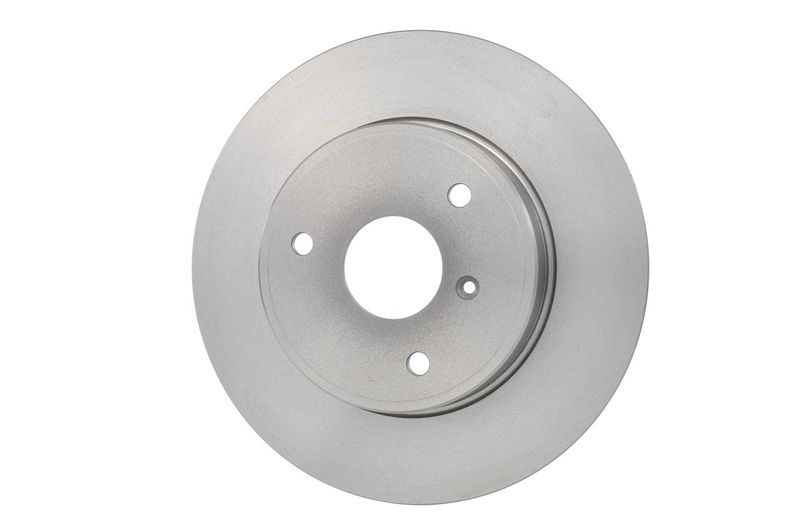

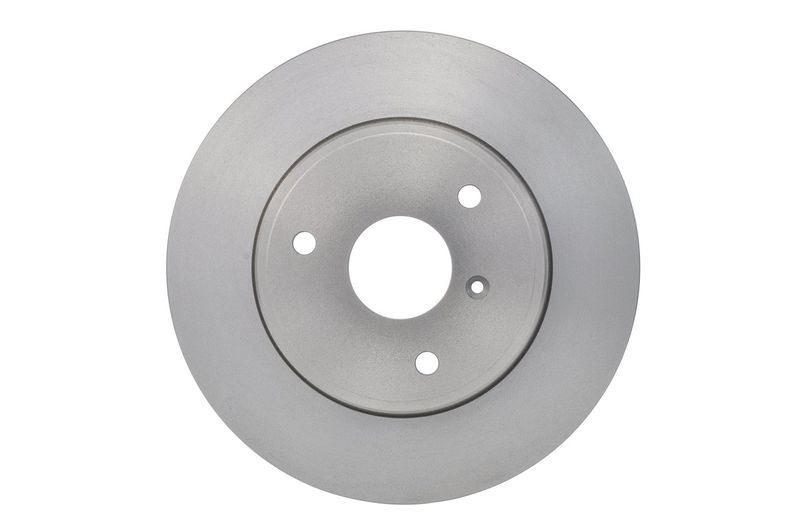

Bosch 0986479305 Brake Disc

SKU: 0986479305
Your selected vehicle
Only 1 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£52.74 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

SMART
CITY-COUPE (450)
Description Cylinder Capacity Horse Power Year
0.7 (450.352, 450.332) 698 CCM 61 HP 01/2003 - 01/2004
FORTWO Coupe (450)
Description Cylinder Capacity Horse Power Year
0.6 (450.332) 599 CCM 61 HP 01/2004 - 02/2007
FORTWO Cabrio (450)
Description Cylinder Capacity Horse Power Year
0.6 599 CCM 61 HP 01/2004 - 12/2006
FORTWO Coupe (451)
Description Cylinder Capacity Horse Power Year
electric drive (451.391, 451.390) 27 HP 12/2010 - 12/2012
1.0 Turbo (451.332) 999 CCM 84 HP From 01/2007
1.0 (451.330, 451.334) 999 CCM 61 HP From 01/2007
1.0 (451.331, 451.380) 999 CCM 71 HP From 01/2007
0.8 CDi (451.300) 799 CCM 45 HP From 01/2007
1.0 Brabus (451.333) 999 CCM 98 HP From 01/2008
0.8 CDi (451.301) 799 CCM 54 HP From 08/2009
1.0 Turbo Brabus (451.333) 999 CCM 102 HP From 07/2010
electric drive (451.391) 41 HP 11/2009 - 12/2011
electric drive (451.390, 451.391) 75 HP From 01/2013
electric drive Brabus (451.392) 82 HP From 01/2013
electric drive (451.390) 48 HP 12/2011 - 12/2012
FORTWO Cabrio (451)
Description Cylinder Capacity Horse Power Year
electric drive (451.490, 451.491) 27 HP 12/2010 - 12/2012
1.0 (451.431, 451.480) 999 CCM 71 HP From 01/2007
1.0 Turbo (451.432) 999 CCM 84 HP From 01/2007
0.8 CDi (451.400) 799 CCM 45 HP From 01/2007
1.0 Brabus (451.433) 999 CCM 98 HP From 01/2008
0.8 CDi (451.401) 799 CCM 54 HP From 08/2009
1.0 Turbo Brabus (451.433) 999 CCM 102 HP From 07/2010
electric drive Brabus (451.492) 82 HP From 01/2013
electric drive (451.491) 41 HP 11/2009 - 12/2011
electric drive (451.490, 451.491) 75 HP From 01/2013
electric drive (451.490) 48 HP 12/2011 - 12/2012

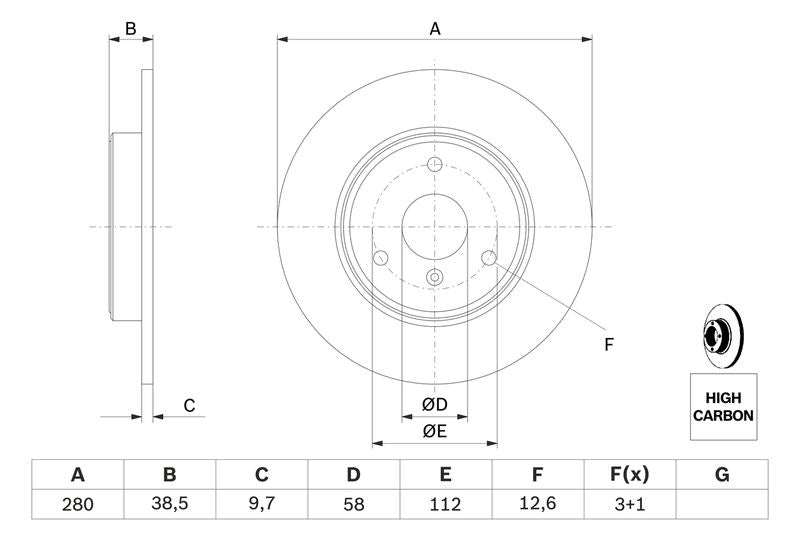

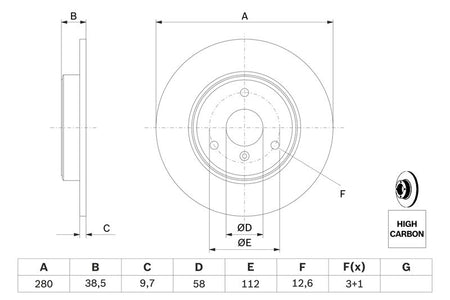

The Bosch 0986479305 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 280 mm outer diameter, 9.7 mm brake disc thickness, 8 mm minimum thickness, and solid disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Outer Diameter [mm] : 280
Brake Disc Thickness [mm] : 9.7
Minimum thickness [mm] : 8
Height [mm] : 38.5
Bolt Hole Circle Ø [mm] : 112
Brake Disc Type : solid
Centering Diameter [mm] : 58
Number of Holes : 3
Surface : Oiled
Machining : High-carbon
fulfils ECE standard : ECE-R90
Bore Diameter up to [mm] : 12.6
  • Vendor BOSCH
  • SKU 0986479305
  • Barcode 4047024233782
  • MERCEDES-BENZ : A 451 421 01 12 451 421 01 12
  • SMART : 4514210112
  • APEC : DSK2026
  • APEC : SDK6261
  • BLUE PRINT : ADU174308
  • BORG & BECK : BBD4231
  • BREMBO : 08.8163.10
  • BREMBO : 08.8163.11
  • BREMBO : 08.8163.20
  • BREMBO : 08.8163.21
  • DELPHI : BG3526
  • Fahren : FBD6261
  • FEBI BILSTEIN : 22345
  • FTE : 9082119
  • HELLA : 8DD 355 113-561
  • MEYLE : 015 521 0030/PD
  • MINTEX : MDC2156
  • NAPA : NBD5412
  • National : NBD1637
  • SKF : VKBD 80381 S2
  • TEXTAR : 92155503
  • TRW : DF4961
  • VALEO : 197691
  • VALEO : 673043
  • BOSCH : BD1168
  • BOSCH : E1 90R-02C0100/0721
