BOSCH

Bosch 0986479307 Brake Disc

SKU: 0986479307

Your selected vehicle

Only 5 left

Low inventory - Hurry! — Order by 17:00 for same-day dispatch

£43.62 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

FORD

TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _)

Description	Cylinder Capacity	Horse Power	Year
2.2 TDCi RWD	2198 CCM	100 HP	10/2011 - 08/2014
2.2 TDCi	2198 CCM	125 HP	10/2011 - 08/2014
2.2 TDCi RWD	2198 CCM	125 HP	10/2011 - 08/2014
2.2 TDCi 4x4	2198 CCM	125 HP	10/2011 - 08/2014
2.2 TDCi RWD	2198 CCM	155 HP	10/2011 - 08/2014
2.3 16V RWD	2261 CCM	145 HP	04/2006 - 08/2014
2.2 TDCi	2198 CCM	110 HP	04/2006 - 08/2014
2.2 TDCi	2198 CCM	130 HP	04/2006 - 08/2014
2.4 TDCi RWD	2402 CCM	100 HP	04/2006 - 08/2014
2.4 TDCi RWD	2402 CCM	115 HP	04/2006 - 08/2014
2.4 TDCi RWD	2402 CCM	140 HP	04/2006 - 08/2014
3.2 TDCi RWD	3199 CCM	200 HP	09/2007 - 08/2014
2.4 TDCi 4x4	2402 CCM	140 HP	11/2006 - 08/2014

TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _)

Description	Cylinder Capacity	Horse Power	Year
2.2 TDCi	2198 CCM	100 HP	10/2011 - 08/2014
2.2 TDCi	2198 CCM	125 HP	10/2011 - 08/2014
2.2 TDCi RWD	2198 CCM	100 HP	10/2011 - 08/2014
2.2 TDCi RWD	2198 CCM	125 HP	09/2011 - 12/2014
2.4 TDCi	2402 CCM	115 HP	04/2006 - 08/2014
2.4 TDCi	2402 CCM	140 HP	04/2006 - 08/2014
2.4 TDCi	2402 CCM	100 HP	04/2006 - 08/2014
2.4 TDCi 4x4	2402 CCM	140 HP	11/2006 - 08/2014
3.2 TDCi	3199 CCM	200 HP	02/2008 - 08/2014
2.2 TDCi	2198 CCM	140 HP	10/2007 - 08/2014
2.2 TDCi	2198 CCM	115 HP	10/2008 - 08/2014
2.2 TDCi RWD	2198 CCM	135 HP	09/2011 - 08/2014

TRANSIT Van (FA_ _)

Description	Cylinder Capacity	Horse Power	Year
2.2 TDCi	2198 CCM	100 HP	10/2011 - 08/2014
2.2 TDCi RWD	2198 CCM	100 HP	10/2011 - 08/2014
2.2 TDCi	2198 CCM	125 HP	10/2011 - 08/2014
2.2 TDCi RWD	2198 CCM	125 HP	09/2011 - 12/2014
2.2 TDCi RWD	2198 CCM	155 HP	10/2011 - 08/2014
2.2 TDCi 4x4	2198 CCM	125 HP	10/2011 - 08/2014
2.2 TDCi	2198 CCM	110 HP	04/2006 - 08/2014
2.2 TDCi	2198 CCM	130 HP	04/2006 - 08/2014
2.4 TDCi RWD	2402 CCM	115 HP	04/2006 - 08/2014
2.4 TDCi RWD	2402 CCM	140 HP	04/2006 - 08/2014
2.4 TDCi RWD	2402 CCM	100 HP	04/2006 - 08/2014
2.3 16V RWD	2261 CCM	145 HP	04/2006 - 08/2014
3.2 TDCi RWD	3199 CCM	200 HP	09/2007 - 08/2014
2.4 TDCi 4x4	2402 CCM	140 HP	11/2006 - 08/2014

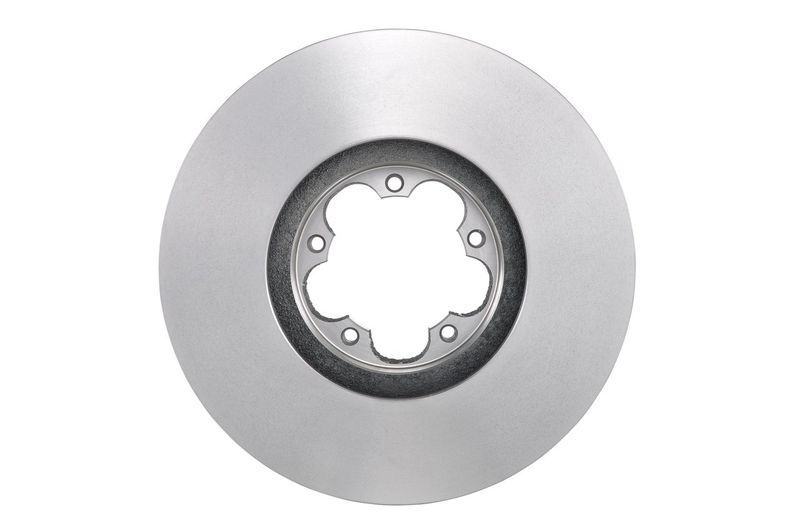

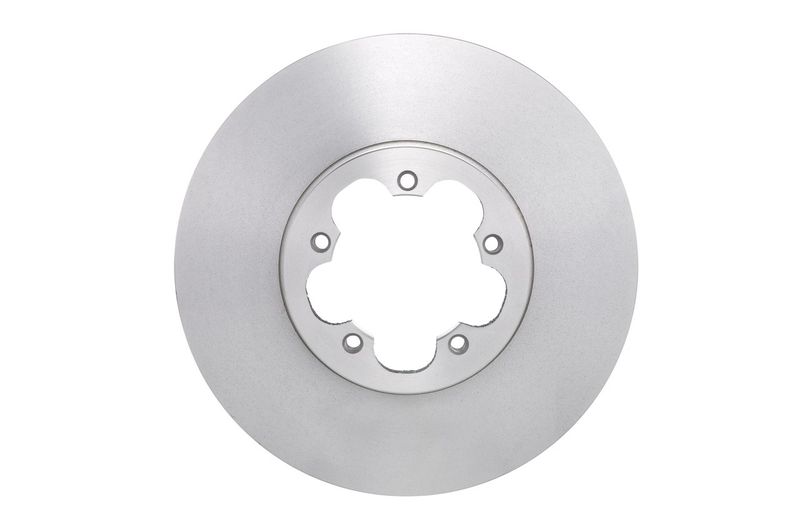

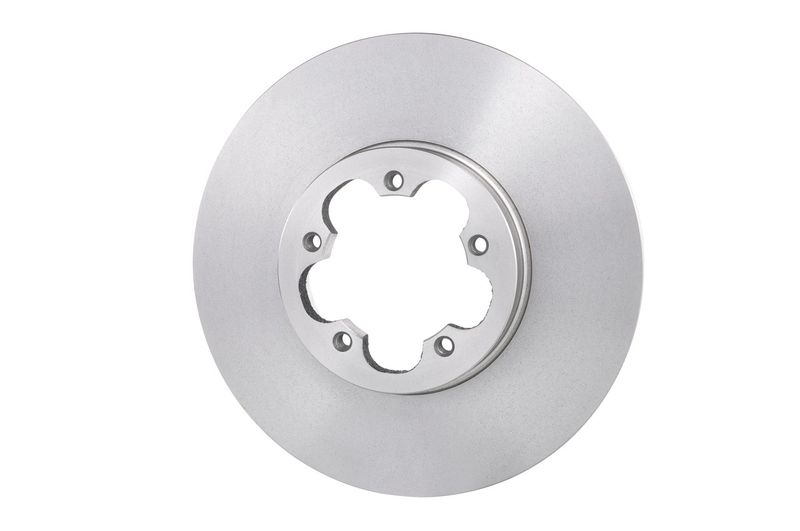

The Bosch 0986479307 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 300 mm outer diameter, 28 mm brake disc thickness, 25 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

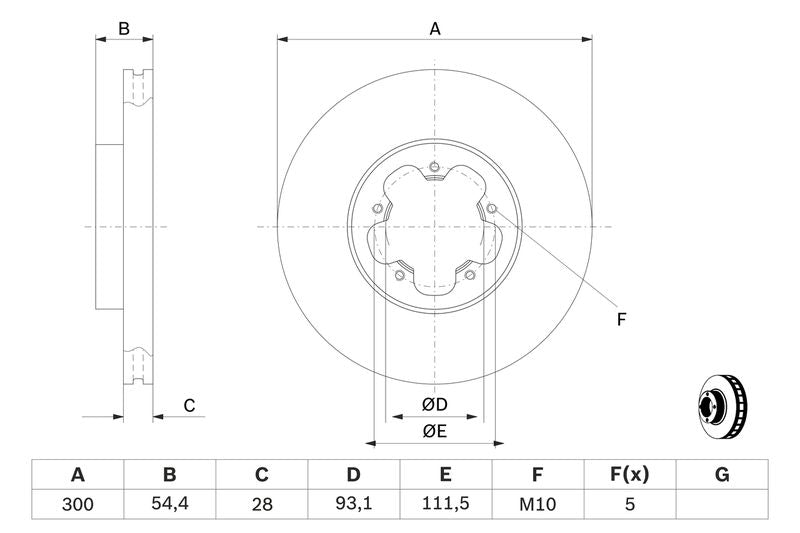

Function : Brake Disc

Outer Diameter [mm] : 300

Brake Disc Thickness [mm] : 28

Minimum thickness [mm] : 25

Height [mm] : 54.4

Bolt Hole Circle Ø [mm] : 112

Brake Disc Type : Vented

Centering Diameter [mm] : 93

Number of Holes : 5

Surface : Oiled

fulfils ECE standard : ECE-R90

APEC : DSK2427
APEC : SDK6096
BLUE PRINT : ADF124315
BLUE PRINT : ADF124330
BORG & BECK : BBD4562
BREMBO : 09.A531.10
BREMBO : 09.A531.20
DELPHI : BG4006
DELPHI : BG5156C
Fahren : FBD6096
FEBI BILSTEIN : 28389
FEBI BILSTEIN : 44034
FTE : 9071229
FTE : 9082776
HELLA : 8DD 355 113-281
HELLA : 8DD 355 118-421
MEYLE : 715 521 7042
MEYLE : 783 521 7042/PD
MINTEX : MDC1760
MINTEX : MDC1760C
NAPA : NBD5731
National : NBD1387
SKF : VKBD 80108 V1
TEXTAR : 92151900
TEXTAR : 92151903
TRW : DF2390S
TRW : DF4817S
VALEO : 187151
VALEO : 197054
VALEO : 672966

Bosch 0986479307 Brake Disc
