BOSCH

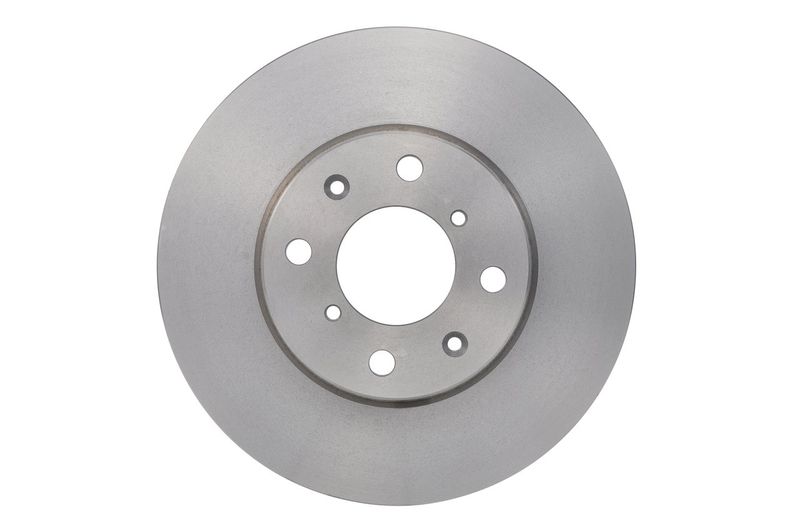

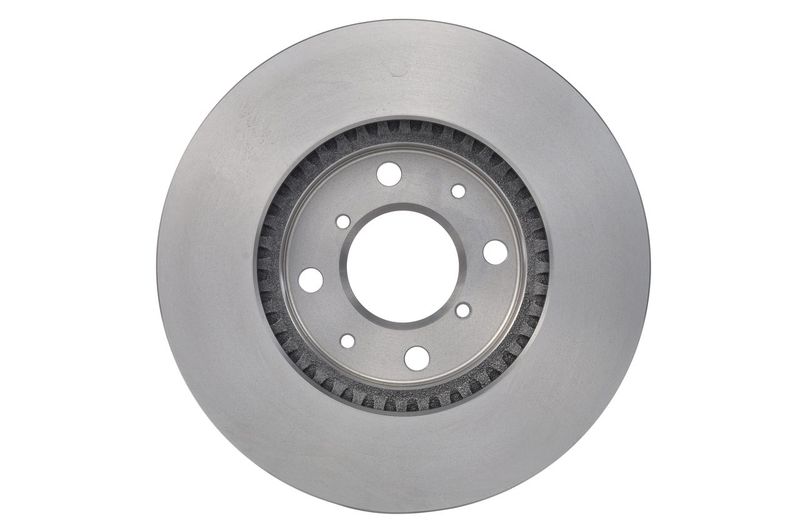

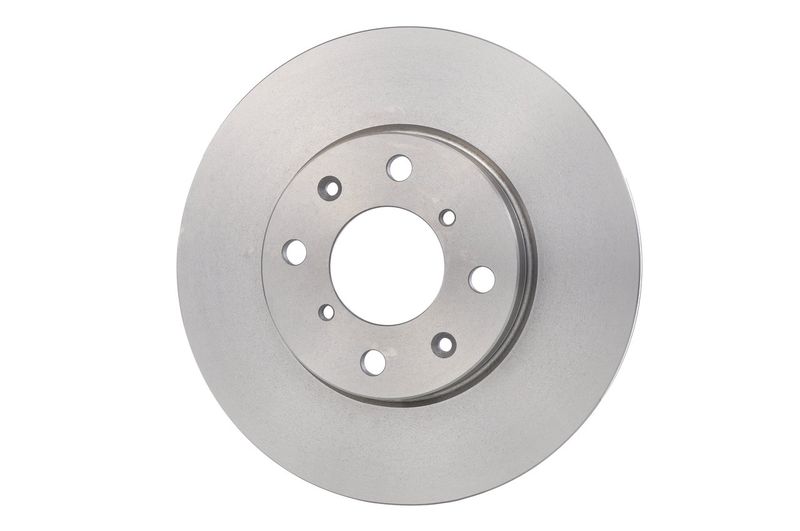

Bosch 0986479308 Brake Disc

SKU: 0986479308
Your selected vehicle
Out of stock
Out of Stock
£54.77 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

OPEL
AGILA B (H08)
Description Cylinder Capacity Horse Power Year
1.2 (F68) 1242 CCM 94 HP 04/2010 - 10/2014
1.0 LPG (F68) 996 CCM 65 HP 01/2010 - 06/2011
1.2 LPG (F68) 1242 CCM 86 HP 04/2008 - 10/2010
1.0 (F68) 996 CCM 68 HP 07/2011 - 07/2014
1.0 (F68) 996 CCM 65 HP 04/2008 - 06/2011
1.2 (F68) 1242 CCM 86 HP 04/2008 - 10/2012
1.3 CDTI (F68) 1248 CCM 75 HP 04/2008 - 04/2010
SUZUKI
SPLASH (EX)
Description Cylinder Capacity Horse Power Year
1.2 VVT (A5B412) 1242 CCM 94 HP From 09/2010
1.0 (A5B310) 996 CCM 68 HP From 06/2011
1.2 VVT (A5B412) 1242 CCM 90 HP From 06/2011
1.0 (A5B310) 996 CCM 65 HP From 01/2008
1.2 (A5B412) 1242 CCM 86 HP From 01/2008
1.3 CDTI (A5B413D) 1248 CCM 75 HP From 01/2008
1.2 VVT (A5B412) 1242 CCM 91 HP From 08/2012
SWIFT III (MZ, EZ)
Description Cylinder Capacity Horse Power Year
1.5 (RS415, ZC21S) 1490 CCM 102 HP From 02/2005
1.3 (RS413, ZC11S) 1328 CCM 92 HP From 02/2005
1.3 DDiS (RS413D) 1248 CCM 69 HP From 08/2005
1.3 4x4 (RS413, ZD11S) 1328 CCM 90 HP From 01/2006
1.3 4x4 (RS 413, ZD11S) 1328 CCM 92 HP From 02/2005
1.3 DDiS (RS413D) 1248 CCM 75 HP 08/2005 - 12/2011
1.3 (RS413, ZC11S) 1328 CCM 91 HP 02/2005 - 06/2015
VAUXHALL
AGILA Mk II (B) (H08)
Description Cylinder Capacity Horse Power Year
1.0 12V 996 CCM 65 HP 01/2008 - 11/2014
1.2 i 16V 1242 CCM 86 HP 01/2008 - 11/2014
1.3 CDTI 1248 CCM 75 HP 01/2008 - 11/2014
1.2 i 16V 1242 CCM 94 HP 01/2008 - 11/2014
1.0 i 996 CCM 68 HP 08/2011 - 11/2014

The Bosch 0986479308 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 252 mm outer diameter, 20 mm brake disc thickness, 18 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

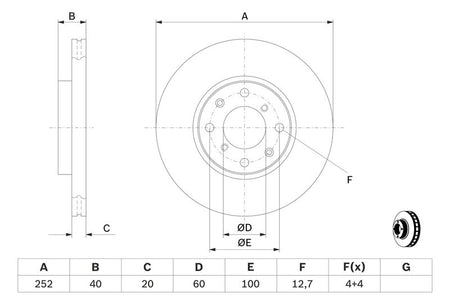

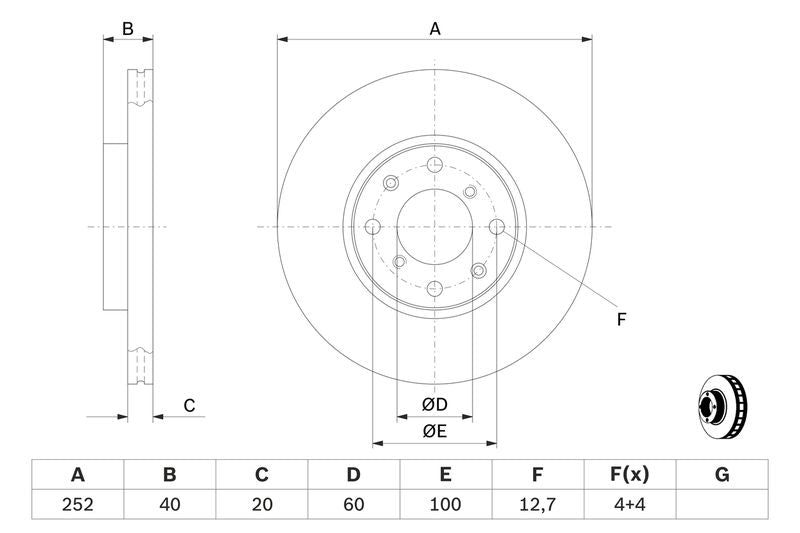

Function : Brake Disc
Outer Diameter [mm] : 252
Brake Disc Thickness [mm] : 20
Minimum thickness [mm] : 18
Height [mm] : 40
Bolt Hole Circle Ø [mm] : 100
Brake Disc Type : Vented
Centering Diameter [mm] : 60
Number of Holes : 4
Surface : Oiled
Supplementary Article/Supplementary Info 2 : with bolts/screws
fulfils ECE standard : ECE-R90
Bore Diameter up to [mm] : 12.7
  • Vendor BOSCH
  • SKU 0986479308
  • Barcode 4047024233812
  • OPEL : 47 08 241 47 10 944 93192978 93194988 95513700
  • SUZUKI : 55311 62J00 000 55311-62J00 55311-62J01 55311-62J02
  • VAUXHALL : 93192978 93194988 95513700
  • APEC : DSK2505
  • APEC : SDK6139
  • BLUE PRINT : ADK84321
  • BORG & BECK : BBD4537
  • BOSCH : 0 986 479 B98
  • BREMBO : 09.A271.11
  • BREMBO : 09.A271.14
  • DELPHI : BG4049C
  • Fahren : FBD6139
  • FEBI BILSTEIN : 28435
  • FTE : 9072568
  • FTE : 9082184
  • HELLA : 8DD 355 112-981
  • MEYLE : 33-15 521 0004
  • MINTEX : MDC1756C
  • NAPA : NBD5459
  • National : NBD1405
  • SKF : VKBD 80167 V2
  • TEXTAR : 92148903
  • TRW : DF4824
  • VALEO : 197066
  • VALEO : 672622
  • BOSCH : BD1171
  • BOSCH : E1 90 R - 02C0074/0086
