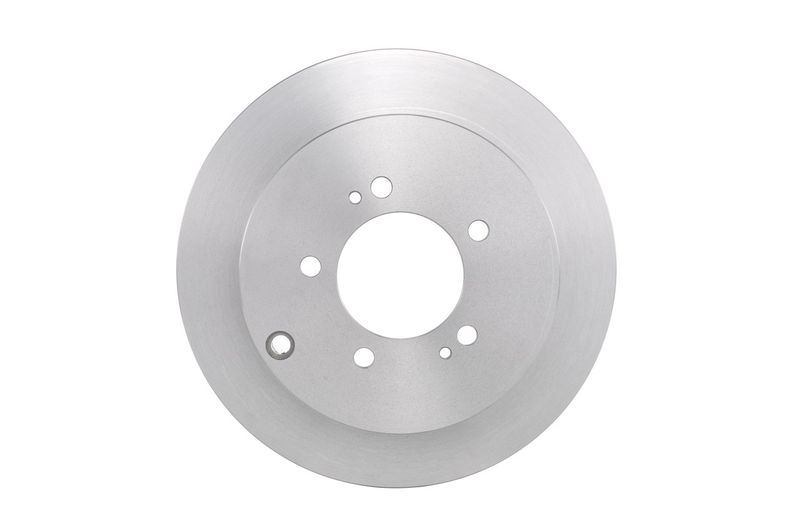

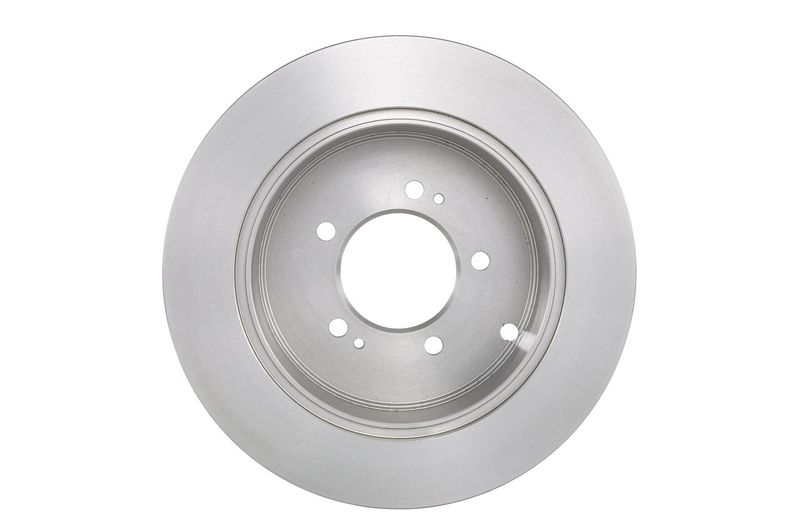

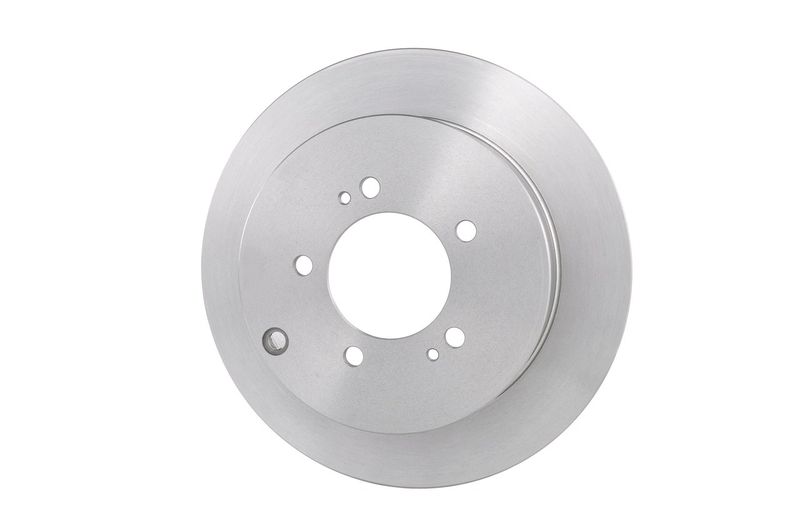

Bosch 0986479318 Brake Disc

SKU: 0986479318
Your selected vehicle
Only 4 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£84.03 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

CITROËN
C-CROSSER (VU_, VV_)
Description Cylinder Capacity Horse Power Year
2.2 HDi 2179 CCM 156 HP 02/2007 - 12/2012
2.4 16V 2360 CCM 170 HP 08/2008 - 12/2012
C-CROSSER Van (VU_)
Description Cylinder Capacity Horse Power Year
2.2 HDi (VU4HNH) 2179 CCM 156 HP 06/2007 - 12/2012
C-CROSSER ENTERPRISE (VU_, VV_)
Description Cylinder Capacity Horse Power Year
2.4 16V 2360 CCM 170 HP From 01/2009
2.2 HDi 2179 CCM 156 HP From 01/2009
C4 AIRCROSS
Description Cylinder Capacity Horse Power Year
1.6 1590 CCM 117 HP From 04/2012
1.6 HDi 115 1560 CCM 114 HP From 04/2012
1.6 HDi 115 AWC 1560 CCM 114 HP From 05/2012
1.8 HDi 150 1798 CCM 150 HP From 04/2012
1.8 HDi 150 AWC 1798 CCM 150 HP From 04/2012
MITSUBISHI
LANCER VIII (CY_A, CZ_A)
Description Cylinder Capacity Horse Power Year
2.0 i Ralliart 4WD (CY4A) 1998 CCM 241 HP From 10/2008
LANCER VIII Sportback (CX_A)
Description Cylinder Capacity Horse Power Year
2.0 Ralliart 4WD (CX4A) 1998 CCM 241 HP From 10/2008
OUTLANDER II (CW_W)
Description Cylinder Capacity Horse Power Year
2.2 DI-D 2268 CCM 177 HP 11/2006 - 11/2012
2.2 DI-D 4WD 2268 CCM 177 HP 11/2006 - 11/2012
2.2 DI-D 4WD 2268 CCM 140 HP 09/2010 - 11/2012
2.4 Flex 4WD 2360 CCM 170 HP 09/2007 - 11/2012
2.0 DI-D (CW8W) 1968 CCM 140 HP 02/2007 - 11/2012
2.4 4WD (CW5W) 2360 CCM 170 HP 09/2007 - 11/2012
2.2 DI-D 4WD 2179 CCM 156 HP 08/2007 - 11/2012
2.4 (CW5W) 2360 CCM 170 HP 11/2006 - 11/2012
OUTLANDER II Van (CW_W)
Description Cylinder Capacity Horse Power Year
Di-D 4WD (CW8W) 1968 CCM 140 HP 12/2006 - 06/2010
Di-D 4WD (CW1W) 2268 CCM 177 HP 09/2010 - 12/2012
PEUGEOT
4007 (VU_, VV_)
Description Cylinder Capacity Horse Power Year
2.2 HDi 2179 CCM 156 HP 02/2007 - 03/2013
2.4 16V 2360 CCM 170 HP 02/2007 - 03/2013
4008
Description Cylinder Capacity Horse Power Year
1.6 HDi AWC 1560 CCM 114 HP From 05/2012
1.8 HDi AWC 1798 CCM 150 HP From 05/2012
1.6 HDi 1560 CCM 114 HP From 05/2012
1.8 HDi 1798 CCM 150 HP From 05/2012
1.6 1590 CCM 117 HP From 05/2012

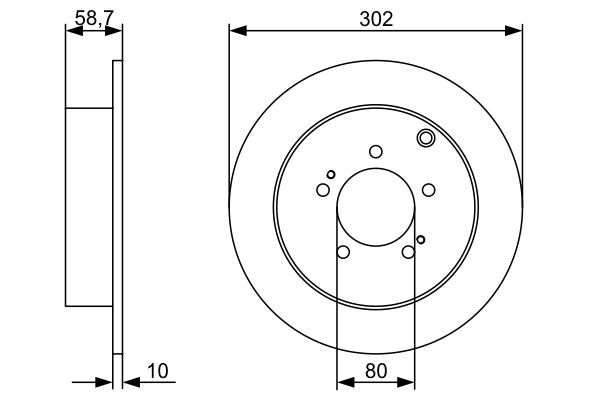

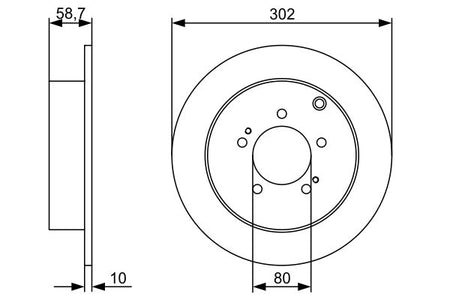

The Bosch 0986479318 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 302 mm outer diameter, 10 mm brake disc thickness, 8.4 mm minimum thickness, and solid disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Outer Diameter [mm] : 302
Brake Disc Thickness [mm] : 10
Minimum thickness [mm] : 8.4
Height [mm] : 58.6
Bolt Hole Circle Ø [mm] : 114.3
Brake Disc Type : solid
Centering Diameter [mm] : 80.02
Number of Holes : 5
Surface : Oiled
fulfils ECE standard : ECE-R90
Bore Diameter up to [mm] : 12.6
  • Vendor BOSCH
  • SKU 0986479318
  • Barcode 4047024309401
  • CITROËN : 16 062 920 80 16 115 004 80 16 116 678 80 4249 F4 4249 61 4249 62
  • MITSUBISHI : 4615A035 4615A192
  • PEUGEOT : 16 062 920 80 16 115 004 80 16 116 678 80 4249 F4 4249 61 4249 62
  • APEC : DSK2697
  • APEC : SDK6293
  • BLUE PRINT : ADC443109
  • BLUE PRINT : ADP154333
  • BORG & BECK : BBD4763
  • BORG & BECK : BBD4820
  • BORG & BECK : BBD5255
  • BREMBO : 08.A755.10
  • BREMBO : 08.A755.11
  • BREMBO : 08.A755.1X
  • DELPHI : BG4161C
  • Fahren : FBD6293
  • FEBI BILSTEIN : 29309
  • FEBI BILSTEIN : 44056
  • FTE : 9072315
  • FTE : 9082200
  • HELLA : 8DD 355 119-061
  • MEYLE : 32-15 523 0017
  • MEYLE : 32-15 523 0017/PD
  • MEYLE : 32-15 523 0020/PD
  • MINTEX : MDC2041
  • NAPA : NBD5428
  • SKF : VKBD 90373 S2
  • TEXTAR : 92167003
  • TRW : DF4963
  • TRW : DF6053
  • TRW : DF6177
  • VALEO : 197116
  • VALEO : 197594
  • VALEO : 672516
  • BOSCH : BD1222
  • BOSCH : E1 90 R - 02C0241/0211
