BOSCH

Bosch 0986479328 Brake Disc

SKU: 0986479328

Your selected vehicle

Only 2 left

Low inventory - Hurry! — Order by 17:00 for same-day dispatch

£63.32 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

CHEVROLET

EPICA (KL1_)

Description	Cylinder Capacity	Horse Power	Year
2.0	1998 CCM	133 HP	01/2005 - 12/2006
2.0	1998 CCM	128 HP	01/2005 - 12/2006

EVANDA

Description	Cylinder Capacity	Horse Power	Year
2.0	1998 CCM	131 HP	03/2005 - 12/2006

LACETTI (J200)

Description	Cylinder Capacity	Horse Power	Year
1.4 16V	1399 CCM	95 HP	03/2005 - 03/2013
1.6	1598 CCM	109 HP	From 03/2005
1.8	1796 CCM	122 HP	From 03/2005
1.8	1796 CCM	121 HP	08/2005 - 12/2011
2.0 D	1991 CCM	121 HP	From 01/2007

LACETTI Saloon (J200)

Description	Cylinder Capacity	Horse Power	Year
1.4	1399 CCM	94 HP	03/2005 - 03/2013
1.8	1799 CCM	122 HP	05/2003 - 08/2005

LACETTI Estate (J200)

Description	Cylinder Capacity	Horse Power	Year
1.6	1598 CCM	109 HP	From 03/2005
1.8	1796 CCM	122 HP	08/2005 - 03/2013
1.8	1796 CCM	121 HP	From 08/2005

NUBIRA Saloon

Description	Cylinder Capacity	Horse Power	Year
1.4	1399 CCM	95 HP	01/2006 - 12/2008
1.6	1598 CCM	109 HP	03/2005 - 12/2011
1.8	1796 CCM	122 HP	03/2005 - 12/2009
2.0 D	1991 CCM	121 HP	01/2005 - 12/2011

NUBIRA Estate

Description	Cylinder Capacity	Horse Power	Year
1.6	1598 CCM	109 HP	03/2005 - 12/2011
1.8	1796 CCM	122 HP	03/2005 - 12/2009
1.8	1796 CCM	121 HP	08/2005 - 12/2011
2.0 D	1991 CCM	121 HP	01/2007 - 12/2011

TACUMA MPV (U100)

Description	Cylinder Capacity	Horse Power	Year
1.6	1598 CCM	105 HP	From 03/2005
2.0	1998 CCM	121 HP	From 03/2005
1.6	1598 CCM	107 HP	From 08/2005
2.0	1998 CCM	122 HP	08/2005 - 09/2009

DAEWOO

EVANDA (KLAL)

Description	Cylinder Capacity	Horse Power	Year
2.0	1998 CCM	131 HP	From 08/2002

LACETTI Hatchback (KLAN)

Description	Cylinder Capacity	Horse Power	Year
1.4	1399 CCM	95 HP	From 02/2004
1.6	1598 CCM	109 HP	From 02/2004
1.8	1799 CCM	122 HP	From 02/2004
1.4	1399 CCM	94 HP	06/2002 - 12/2004

NUBIRA Saloon (J200)

Description	Cylinder Capacity	Horse Power	Year
1.6	1598 CCM	109 HP	From 07/2003
1.8	1799 CCM	122 HP	From 07/2003

NUBIRA Wagon (J200)

Description	Cylinder Capacity	Horse Power	Year
1.6	1598 CCM	109 HP	From 07/2003
1.8	1799 CCM	122 HP	From 07/2003

TACUMA (U100)

Description	Cylinder Capacity	Horse Power	Year
1.8	1761 CCM	101 HP	From 09/2000
2.0	1998 CCM	128 HP	From 09/2000
1.8	1761 CCM	98 HP	From 09/2000
1.6	1598 CCM	105 HP	From 09/2000
2.0	1998 CCM	121 HP	09/2001 - 12/2004
1.6	1598 CCM	106 HP	02/2002 - 12/2004

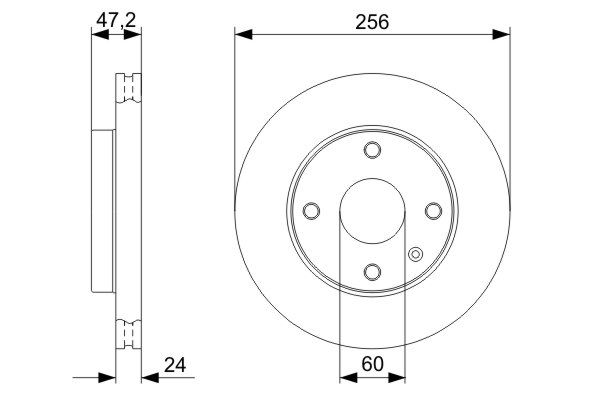

The Bosch 0986479328 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 256 mm outer diameter, 24 mm brake disc thickness, 22 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Outer Diameter [mm] : 256

Brake Disc Thickness [mm] : 24

Minimum thickness [mm] : 22

Height [mm] : 47.2

Bolt Hole Circle Ø [mm] : 114.3

Brake Disc Type : Vented

Centering Diameter [mm] : 60

Number of Holes : 4

Surface : Oiled

fulfils ECE standard : ECE-R90

Bore Diameter up to [mm] : 12.6

BLUE PRINT : ADG04346
BORG & BECK : BBD4435
BORG & BECK : BBD4511
BOSCH : 0 986 479 C01
BREMBO : 09.9483.10
BREMBO : 09.9483.11
BREMBO : 09.D745.10
DELPHI : BG4003
FTE : 9072135
HELLA : 8DD 355 111-351
HELLA : 8DD 355 111-361
MEYLE : 29-15 521 0005
MEYLE : 29-15 521 0007
MINTEX : MDC1483
MINTEX : MDC1990
National : NBD1110
SKF : VKBD 80898 V2
TEXTAR : 92133500
TEXTAR : 92133600
TEXTAR : 92133603
TRW : DF4812
TRW : DF7218
VALEO : 197366
