BOSCH

Bosch 0986479331 Brake Disc

SKU: 0986479331

Your selected vehicle

Only 4 left

Low inventory - Hurry! — Order by 17:00 for same-day dispatch

£103.54 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

MERCEDES-BENZ

C-CLASS (W204)

Description	Cylinder Capacity	Horse Power	Year
C 180 CDI (204.000)	2143 CCM	120 HP	04/2010 - 03/2014
C 200 CDI (204.001)	2143 CCM	136 HP	11/2009 - 03/2014
C 200 (204.048)	1796 CCM	186 HP	05/2011 - 01/2014
C 200 CDI (204.007, 204.006)	2148 CCM	136 HP	01/2007 - 12/2009
C 220 CDI (204.008)	2148 CCM	170 HP	01/2007 - 11/2008
C 180 Kompressor (204.046)	1796 CCM	156 HP	01/2007 - 01/2009
C 200 Kompressor (204.041)	1796 CCM	184 HP	01/2007 - 01/2014
C 230 (204.052)	2496 CCM	204 HP	01/2007 - 01/2014

C-CLASS T-Model (S204)

Description	Cylinder Capacity	Horse Power	Year
C 250 CGI (204.247)	1796 CCM	204 HP	07/2009 - 08/2014
C 200 CDI (204.201)	2143 CCM	136 HP	08/2010 - 08/2014
C 180 CGI (204.249)	1796 CCM	156 HP	11/2009 - 08/2014
C 180 CDI (204.200)	2143 CCM	120 HP	04/2010 - 08/2014
C 180 Kompressor (204.246)	1796 CCM	156 HP	08/2007 - 08/2014
C 200 Kompressor (204.241)	1796 CCM	184 HP	08/2007 - 08/2014
C 230 (204.252)	2496 CCM	204 HP	08/2007 - 08/2014
C 280 (204.254)	2996 CCM	231 HP	08/2007 - 08/2014
C 200 CDI (204.207)	2148 CCM	136 HP	08/2007 - 12/2009
C 220 CDI (204.208)	2148 CCM	170 HP	08/2007 - 11/2008

C-CLASS Coupe (C204)

Description	Cylinder Capacity	Horse Power	Year
C 220 CDI (204.302)	2143 CCM	170 HP	From 06/2011
C 250 CDI (204.303)	2143 CCM	204 HP	From 06/2011
C 180 (204.349)	1796 CCM	156 HP	From 06/2011
C 250 (204.347)	1796 CCM	204 HP	From 06/2011
C 200 CGI (204.348)	1796 CCM	184 HP	From 06/2011
C 180 (204.331)	1595 CCM	156 HP	From 01/2013
C 220 CDI (204.302)	2143 CCM	163 HP	From 06/2011

SLS AMG (C197)

Description	Cylinder Capacity	Horse Power	Year
6.2 (197.377)	6208 CCM	571 HP	From 03/2010
6.2 GT	6208 CCM	592 HP	From 06/2013
6.3 (197.377)	6208 CCM	571 HP	09/2010 - 12/2012

SLS AMG Roadster (R197)

Description	Cylinder Capacity	Horse Power	Year
6.2 (197.477)	6208 CCM	571 HP	From 06/2011
6.2 GT (197.478)	6208 CCM	592 HP	From 06/2013

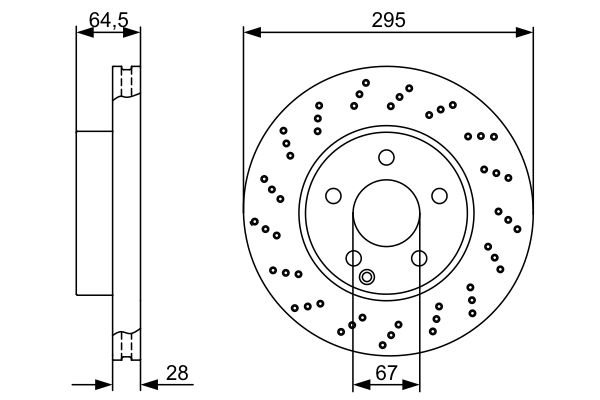

The Bosch 0986479331 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 295 mm outer diameter, 28 mm brake disc thickness, 26 mm minimum thickness, and perforated and Vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Outer Diameter [mm] : 295

Brake Disc Thickness [mm] : 28

Minimum thickness [mm] : 26

Height [mm] : 64.4

Bolt Hole Circle Ø [mm] : 112

Brake Disc Type : Perforated

Brake Disc Type : Vented

Centering Diameter [mm] : 67

Number of Holes : 5

Surface : Coated

Machining : High-carbon

fulfils ECE standard : ECE-R90

Bore Diameter up to [mm] : 15.3

APEC : DSK2808
APEC : SDK6649
BLUE PRINT : ADU174312
BORG & BECK : BBD4800
BREMBO : 09.A613.51
BREMBO : 09.A907.11
DELPHI : BG4142C
Fahren : FBD6649
FEBI BILSTEIN : 30552
FTE : 9082605
HELLA : 8DD 355 114-391
MEYLE : 083 521 2102/PD
MINTEX : MDC2214
NAPA : NBD5399
National : NBD1551
SKF : VKBD 80068 V1
TEXTAR : 92165003
TEXTAR : 92165005
TRW : DF4813S
VALEO : 197201
VALEO : 672761

Bosch 0986479331 Brake Disc
