BOSCH

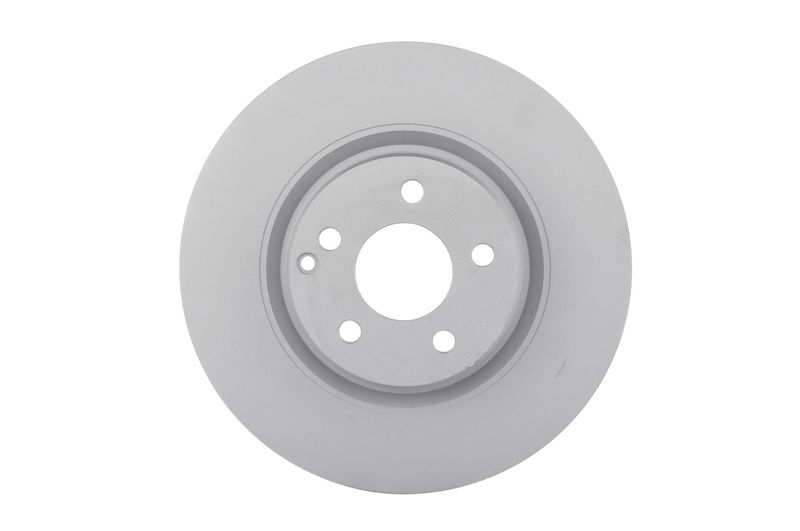

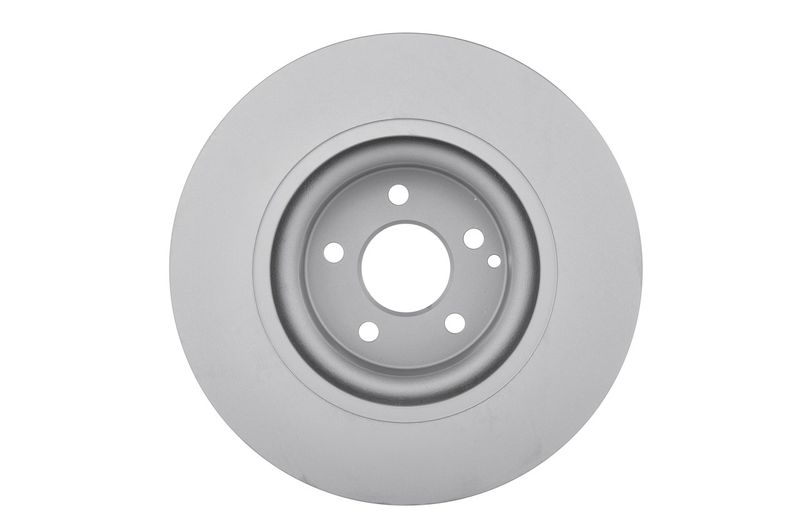

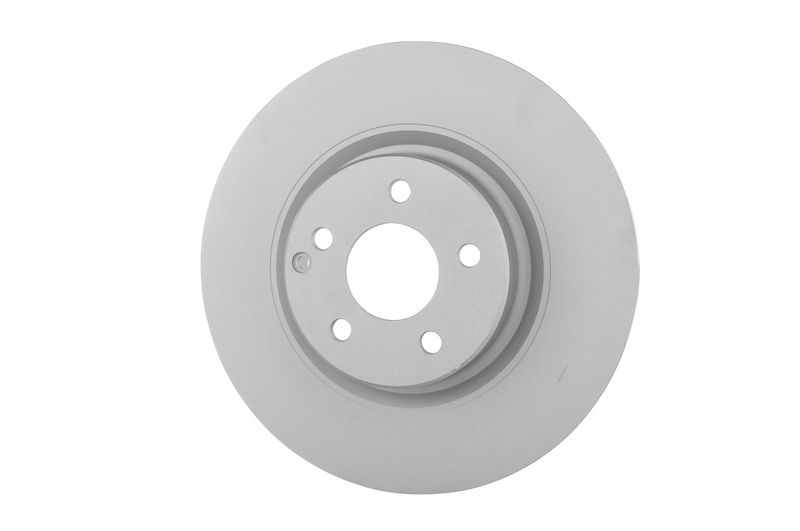

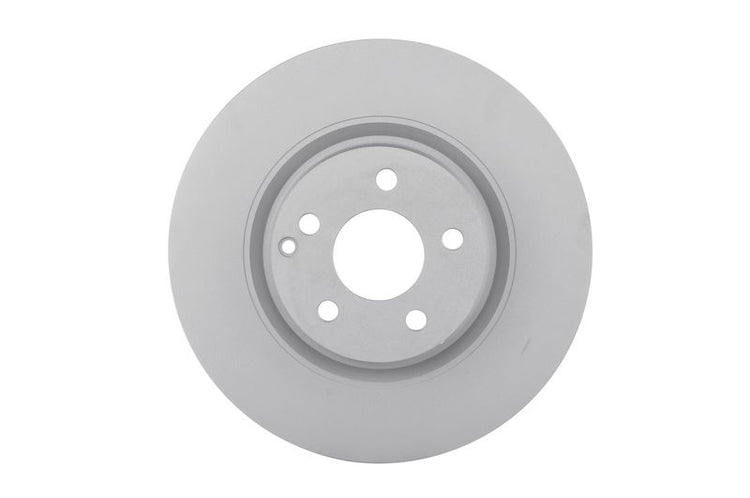

Bosch 0986479332 Brake Disc

SKU: 0986479332
Your selected vehicle
Only 3 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£55.86 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

MERCEDES-BENZ
CLS (C219)
Description Cylinder Capacity Horse Power Year
CLS 350 (219.356) 3498 CCM 272 HP 10/2004 - 12/2010
CLS 500 (219.375) 4966 CCM 306 HP 10/2004 - 12/2010
CLS 350 (219.357) 3498 CCM 292 HP 04/2006 - 12/2010
CLS 280 (219.354) 2996 CCM 231 HP 07/2008 - 12/2010
CLS 300 (219.354) 2996 CCM 231 HP 04/2009 - 12/2010
E-CLASS (W211)
Description Cylinder Capacity Horse Power Year
E 320 (211.065) 3199 CCM 224 HP 03/2002 - 12/2008
E 500 (211.070) 4966 CCM 306 HP 03/2002 - 12/2008
E 400 CDI (211.028) 3996 CCM 260 HP 02/2003 - 12/2008
E-CLASS T-Model (S211)
Description Cylinder Capacity Horse Power Year
E 500 T (211.270) 4966 CCM 306 HP 10/2003 - 07/2009
GLK-CLASS (X204)
Description Cylinder Capacity Horse Power Year
350 (204.956) 3498 CCM 272 HP 04/2009 - 06/2015
350 4-matic (204.988) 3498 CCM 306 HP 06/2008 - 06/2015
350 CDI 4-matic (204.992) 2987 CCM 231 HP 02/2010 - 06/2015
250 4-matic (204.937) 1991 CCM 211 HP 08/2013 - 06/2015
280 4-matic (204.981) 2996 CCM 231 HP 06/2008 - 06/2009
350 4-matic (204.987) 3498 CCM 272 HP 06/2008 - 04/2011
320 CDI 4-matic (204.983) 2987 CCM 224 HP 06/2008 - 06/2015
220 CDI (204.902) 2143 CCM 170 HP 12/2008 - 06/2015
220 CDI 4-matic (204.984, 204.997) 2143 CCM 170 HP 12/2008 - 06/2015
250 CDI 4-matic (204.982, 204.904) 2143 CCM 204 HP 09/2009 - 06/2015
300 4-matic (204.981) 2996 CCM 231 HP 07/2009 - 12/2015
350 CDI 4-matic (204.992) 2987 CCM 224 HP 07/2009 - 01/2010
200 CDI (204.901) 2143 CCM 143 HP 07/2010 - 06/2015
350 CDI 4-matic (204.993) 2987 CCM 265 HP 07/2012 - 06/2015

The Bosch 0986479332 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 330 mm outer diameter, 32 mm brake disc thickness, 29.4 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

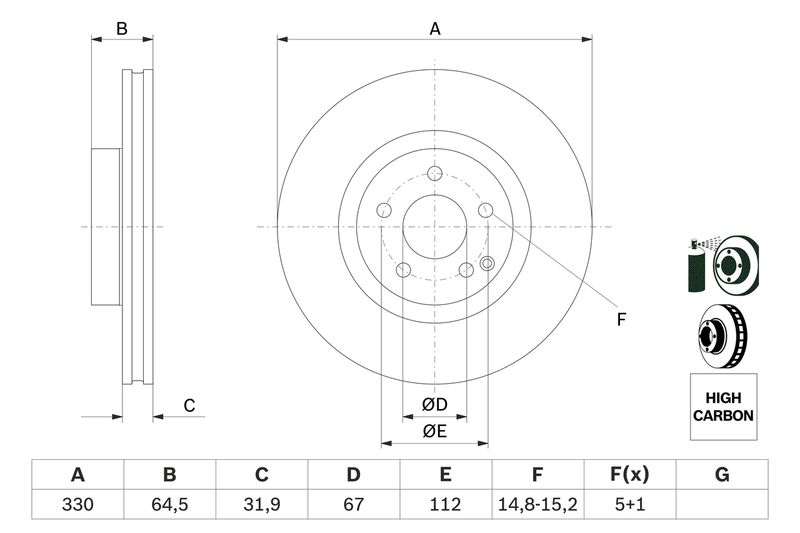

Function : Brake Disc
Outer Diameter [mm] : 330
Brake Disc Thickness [mm] : 32
Minimum thickness [mm] : 29.4
Height [mm] : 64.5
Bolt Hole Circle Ø [mm] : 112
Brake Disc Type : Vented
Centering Diameter [mm] : 67
Number of Holes : 5
Surface : Coated
Machining : High-carbon
fulfils ECE standard : ECE-R90
Bore Diameter up to [mm] : 15.3
  • Vendor BOSCH
  • SKU 0986479332
  • Barcode 4047024309579
  • MERCEDES-BENZ : A 204 421 00 00 A 204 421 29 12 A 211 421 10 12 A 211 421 13 12 A 211 421 14 12 204 421 00 00 204 421 29 12 211 421 10 12 211 421 13 12 211 421 14 12
  • APEC : DSK2417
  • BLUE PRINT : ADU174302
  • BORG & BECK : BBD5765S
  • BREMBO : 09.9825.20
  • BREMBO : 09.9825.21
  • DELPHI : BG3877
  • FEBI BILSTEIN : 43936
  • FTE : 9071038
  • FTE : 9081060
  • FTE : 9081061
  • HELLA : 8DD 355 109-431
  • HELLA : 8DD 355 127-921
  • MEYLE : 083 521 0004/PD
  • MINTEX : MDC1788
  • National : NBD1271
  • SKF : VKBD 80205 V1
  • TEXTAR : 92119905
  • TRW : DF4264
  • TRW : DF7351S
  • VALEO : 197767
  • VALEO : 673377
  • BOSCH : BD1228
