BOSCH

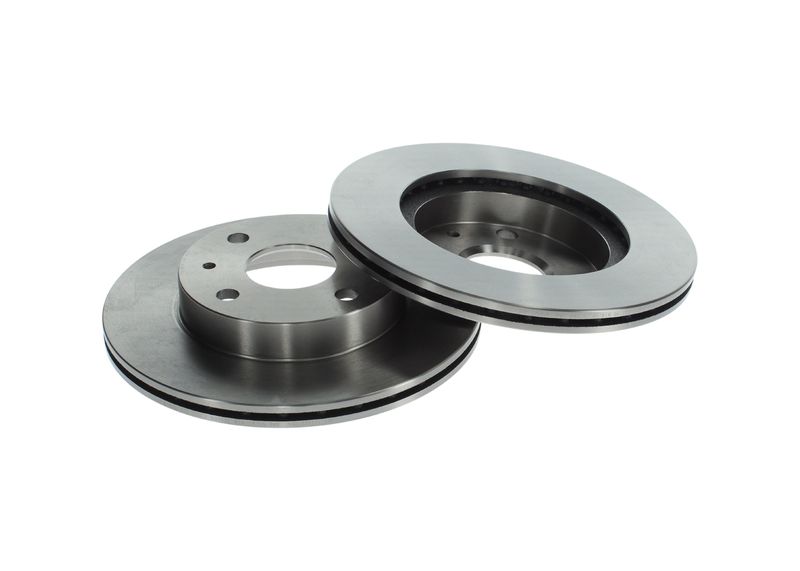

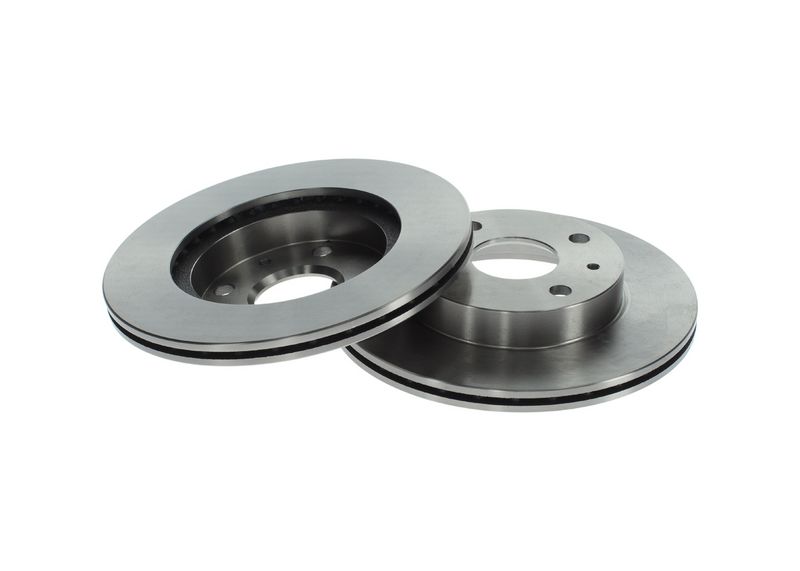

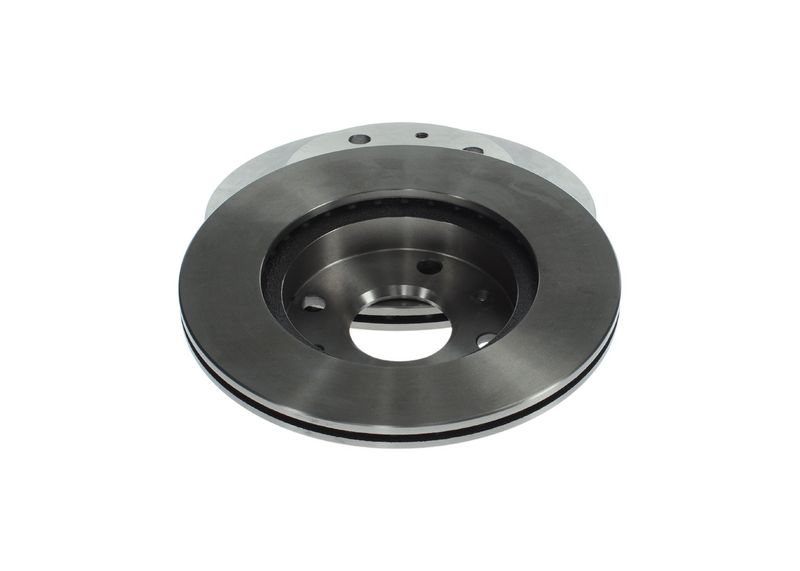

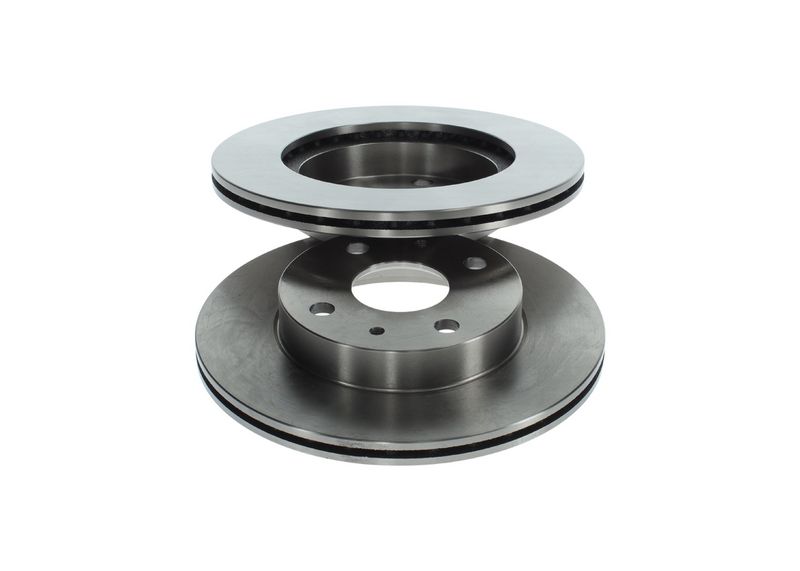

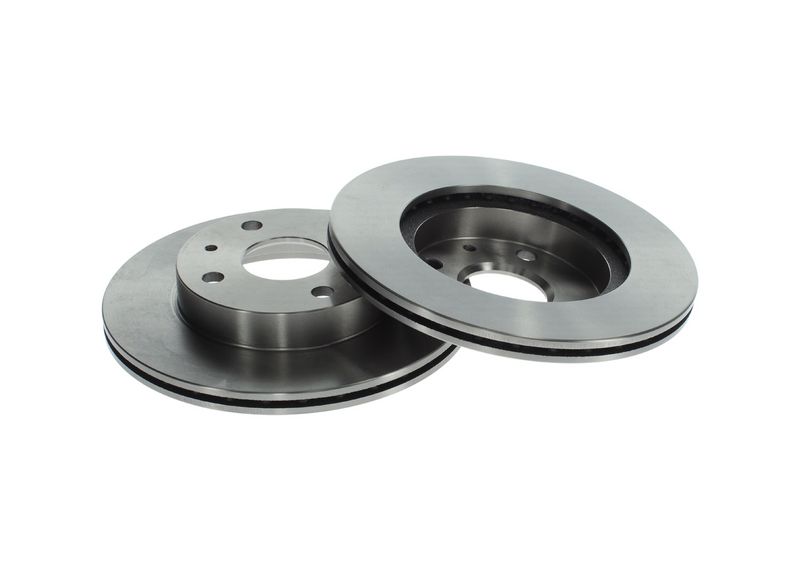

Bosch 0986479352 Brake Disc

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service

SKU: 0986479352

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Out of stock

Out of Stock

£39.00 inc. VAT

Pay in 3 interest-free payments with Klarna

Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

DAIHATSU

MOVE (L9_)

Description	Cylinder Capacity	Horse Power	Year
1.0 i	989 CCM	55 HP	10/1998 - 09/2002
1.0 i	989 CCM	54 HP	10/1998 - 12/2000

NAKED

Description	Cylinder Capacity	Horse Power	Year
0.7 Turbo All-wheel Drive (L750S)	659 CCM	64 HP	11/1999 - 02/2005

STORIA (M1)

Description	Cylinder Capacity	Horse Power	Year
1.0 i (M100)	989 CCM	56 HP	04/1998 - 09/2000
1.0 i 4WD (M110)	989 CCM	56 HP	04/1999 - 09/2000
1.3 Sport (M101)	1298 CCM	102 HP	08/2000 - 01/2005
1.3 Sport 4WD	1298 CCM	102 HP	08/2000 - 03/2005
1.0 i (M100)	989 CCM	58 HP	09/2000 - 01/2005
1.0 i 4WD (M110)	989 CCM	58 HP	09/2000 - 01/2005
1.0 (M100)	989 CCM	54 HP	04/1998 - 10/2000

YRV (M2)

Description	Cylinder Capacity	Horse Power	Year
1.3 (M201)	1298 CCM	87 HP	From 02/2001
1.3 4WD (M211)	1298 CCM	87 HP	From 02/2001
1.0 (M200)	989 CCM	58 HP	From 02/2001

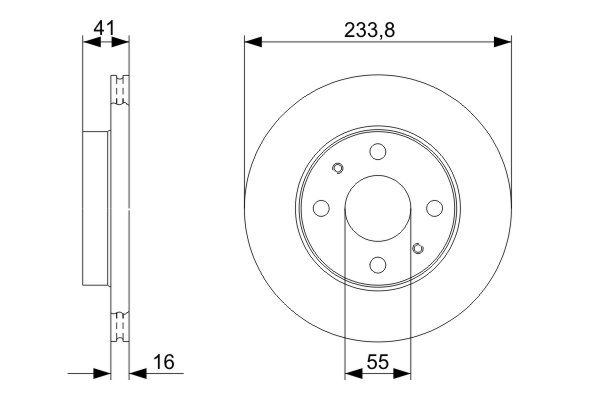

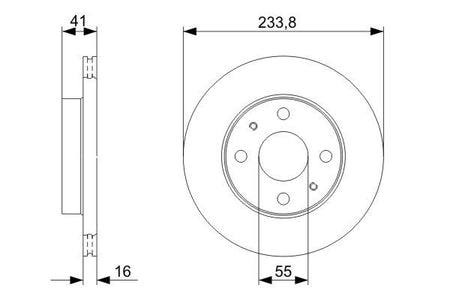

The Bosch 0986479352 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 234 mm outer diameter, 16.1 mm brake disc thickness, 15 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Outer Diameter [mm] : 234

Brake Disc Thickness [mm] : 16.1

Minimum thickness [mm] : 15

Height [mm] : 41.2

Bolt Hole Circle Ø [mm] : 100

Brake Disc Type : Vented

Centering Diameter [mm] : 55

Number of Holes : 4

Surface : Oiled

Supplementary Article/Supplementary Info 2 : without bolts/screws

Bore Diameter up to [mm] : 13.1
