BOSCH

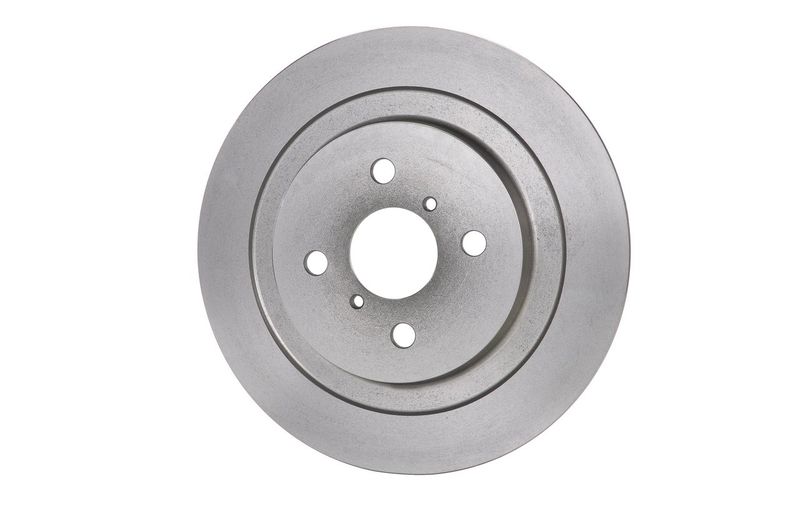

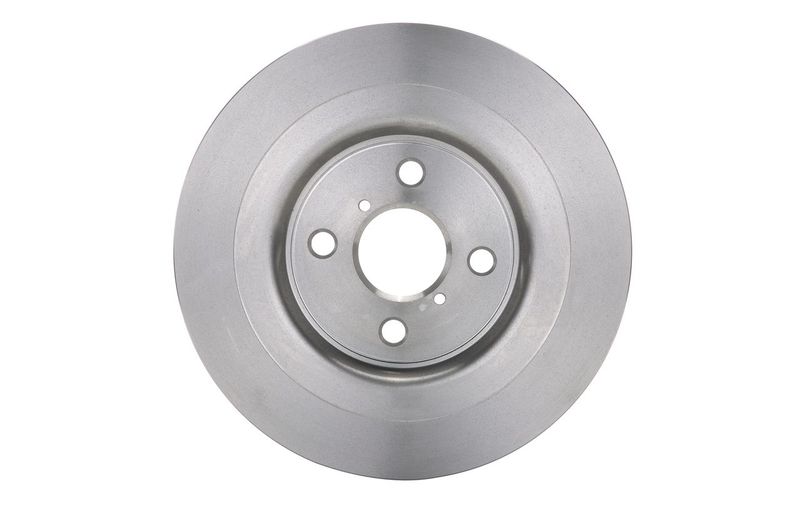

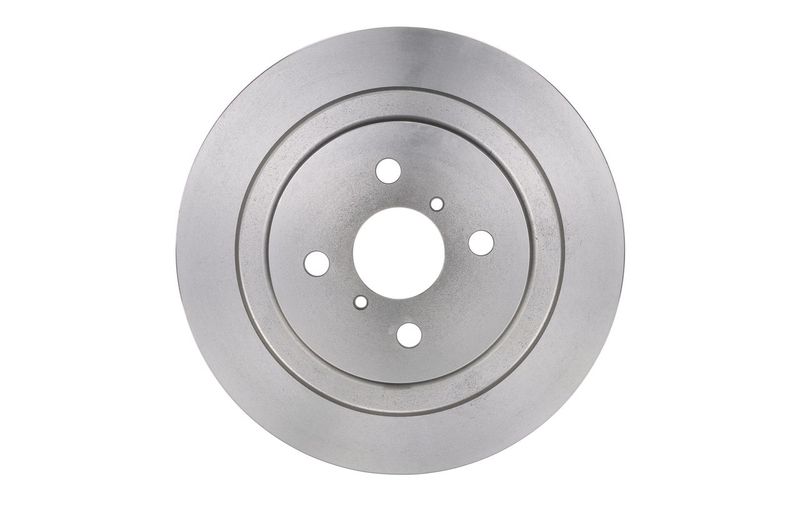

Bosch 0986479360 Brake Disc

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service

SKU: 0986479360

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Out of stock

Out of Stock

£51.54 inc. VAT

Pay in 3 interest-free payments with Klarna

Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

DAIHATSU

CHARADE VIII

Description	Cylinder Capacity	Horse Power	Year
1.33 16V	1329 CCM	99 HP	From 05/2011

TOYOTA

YARIS Hatchback Van (_P13_)

Description	Cylinder Capacity	Horse Power	Year
1.0 VVTi (KSP130)	998 CCM	69 HP	07/2014 - 06/2020
1.4 D4d (NLP130)	1364 CCM	90 HP	07/2014 - 05/2018
1.0 VVTi (KSP130)	998 CCM	72 HP	06/2018 - 06/2020
1.5 Hybrid (NHP130)	1497 CCM	101 HP	04/2015 - 06/2020

YARIS/VITZ (_P9_)

Description	Cylinder Capacity	Horse Power	Year
1.33 VVT-i (NSP90_, NSP90R)	1329 CCM	99 HP	07/2010 - 05/2011
1.0 VVT-i (KSP90_, KSP90R)	998 CCM	69 HP	08/2005 - 12/2011
1.4 D-4D (NLP90_, NLP90R)	1364 CCM	90 HP	08/2005 - 12/2012
1.3 VVT-i (SCP90_, SCP90R)	1298 CCM	87 HP	08/2005 - 11/2010
1.33 VVT-i (NSP90_, NSP90R)	1329 CCM	100 HP	11/2008 - 12/2011
1.0 VVT-i (KSP90)	998 CCM	71 HP	11/2005 - 11/2010

YARIS/VITZ (_P13_)

Description	Cylinder Capacity	Horse Power	Year
1.3 (NSP130_, NSP130)	1329 CCM	95 HP	12/2010 - 07/2014
1.0 (KSP130_, KSP130)	998 CCM	69 HP	12/2010 - 06/2020
1.4 D (NLP130_, NLP130)	1364 CCM	90 HP	09/2011 - 05/2018
1.3 (NSP130_, NSP130)	1329 CCM	99 HP	09/2011 - 03/2017
1.5 Hybrid (NHP130_, NHP130)	1497 CCM	101 HP	03/2012 - 06/2020
1.5 Hybrid (NHP130_)	1497 CCM	101 HP	04/2015 - 03/2017
1.5 (NSP131_)	1496 CCM	112 HP	03/2017 - 06/2020
1.8 GRMN (NSP131_)	1798 CCM	212 HP	09/2017 - 06/2020
1.0 (KSP130)	998 CCM	72 HP	06/2018 - 06/2020

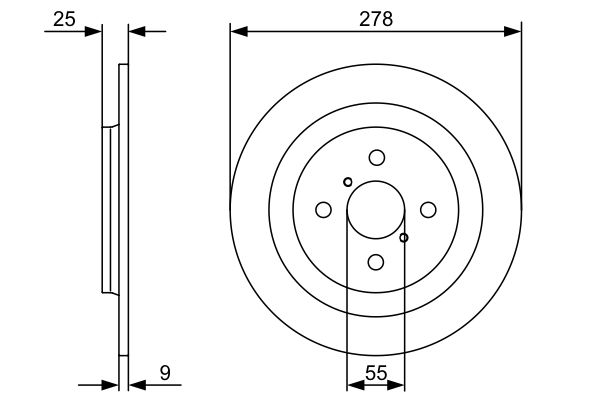

The Bosch 0986479360 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 278 mm outer diameter, 9 mm brake disc thickness, 7 mm minimum thickness, and solid disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Outer Diameter [mm] : 278

Brake Disc Thickness [mm] : 9

Minimum thickness [mm] : 7

Height [mm] : 25

Bolt Hole Circle Ø [mm] : 100

Brake Disc Type : solid

Centering Diameter [mm] : 55.05

Number of Holes : 4

Surface : Oiled

fulfils ECE standard : ECE-R90

Bore Diameter up to [mm] : 14.5
