BOSCH

Bosch 0986479363 Brake Disc

SKU: 0986479363
Your selected vehicle
Out of stock
Out of Stock
£81.63 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

DAIHATSU
CHARADE VIII
Description Cylinder Capacity Horse Power Year
1.33 16V 1329 CCM 99 HP From 05/2011
TOYOTA
YARIS / VIOS Saloon (_P9_)
Description Cylinder Capacity Horse Power Year
1.3 (NCP92_, NCP92R) 1299 CCM 86 HP 01/2006 - 04/2013
YARIS Hatchback Van (_P13_)
Description Cylinder Capacity Horse Power Year
1.0 VVTi (KSP130) 998 CCM 69 HP 07/2014 - 06/2020
1.4 D4d (NLP130) 1364 CCM 90 HP 07/2014 - 05/2018
1.0 VVTi (KSP130) 998 CCM 72 HP 06/2018 - 06/2020
YARIS/VITZ (_P9_)
Description Cylinder Capacity Horse Power Year
1.33 VVT-i (NSP90_, NSP90R) 1329 CCM 99 HP 07/2010 - 05/2011
1.0 VVT-i (KSP90_, KSP90R) 998 CCM 69 HP 08/2005 - 12/2011
1.4 D-4D (NLP90_, NLP90R) 1364 CCM 90 HP 08/2005 - 12/2012
1.3 VVT-i (SCP90_, SCP90R) 1298 CCM 87 HP 08/2005 - 11/2010
1.33 VVT-i (NSP90_, NSP90R) 1329 CCM 100 HP 11/2008 - 12/2011
1.0 VVT-i (KSP90) 998 CCM 71 HP 11/2005 - 11/2010
YARIS/VITZ (_P13_)
Description Cylinder Capacity Horse Power Year
1.3 (NSP130_, NSP130) 1329 CCM 95 HP 12/2010 - 07/2014
1.0 (KSP130_, KSP130) 998 CCM 69 HP 12/2010 - 06/2020
1.4 D (NLP130_, NLP130) 1364 CCM 90 HP 09/2011 - 05/2018
1.3 (NSP130_, NSP130) 1329 CCM 99 HP 09/2011 - 03/2017
1.5 (NSP131_) 1496 CCM 112 HP 03/2017 - 06/2020
1.0 (KSP130) 998 CCM 72 HP 06/2018 - 06/2020

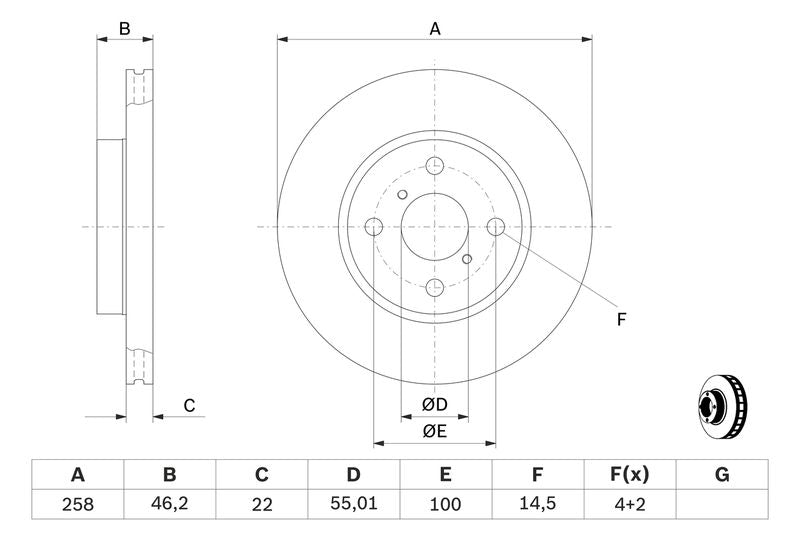

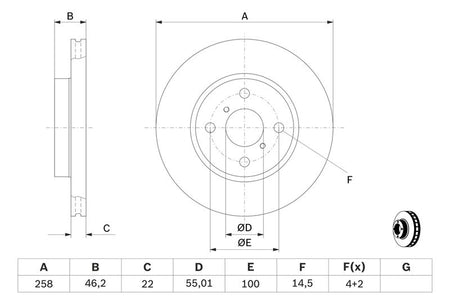

The Bosch 0986479363 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 258 mm outer diameter, 22 mm brake disc thickness, 20 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Outer Diameter [mm] : 258
Brake Disc Thickness [mm] : 22
Minimum thickness [mm] : 20
Height [mm] : 46.2
Bolt Hole Circle Ø [mm] : 100
Brake Disc Type : Vented
Centering Diameter [mm] : 55
Number of Holes : 4
Surface : Oiled
fulfils ECE standard : ECE-R90
Bore Diameter up to [mm] : 14.5
  • Vendor BOSCH
  • SKU 0986479363
  • Barcode 4047024309449
  • TOYOTA : 435120D060 435120D120 435120D260
  • LEXUS : 435120D260
  • APEC : DSK2516
  • APEC : SDK6274
  • BLUE PRINT : ADT343205
  • BORG & BECK : BBD4175
  • BORG & BECK : BBD4604
  • BOSCH : 0 986 479 C06
  • BREMBO : 09.A913.11
  • BREMBO : 09.A913.14
  • DELPHI : BG4116C
  • Fahren : FBD6274
  • FEBI BILSTEIN : 108380
  • FTE : 9072544
  • FTE : 9082029
  • HELLA : 8DD 355 108-881
  • HELLA : 8DD 355 114-311
  • MEYLE : 30-15 521 0060
  • MINTEX : MDC1832C
  • NAPA : NBD5302
  • National : NBD1452
  • SKF : VKBD 80080 V2
  • TEXTAR : 92164203
  • TRW : DF4842
  • VALEO : 197184
  • VALEO : 672606
  • VALEO : 672932
  • BOSCH : BD1240
  • BOSCH : E1 90 R - 02C0349/0084
