Bosch 0986479372 Brake Disc

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service
SKU: 0986479372

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Out of stock
Out of Stock
£84.28 inc. VAT
Pay in 3 interest-free payments with Klarna
Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

CITROËN
C-CROSSER (VU_, VV_)
Description Cylinder Capacity Horse Power Year
2.2 HDi 2179 CCM 156 HP 02/2007 - 12/2012
2.4 16V 2360 CCM 170 HP 08/2008 - 12/2012
C-CROSSER Van (VU_)
Description Cylinder Capacity Horse Power Year
2.2 HDi (VU4HNH) 2179 CCM 156 HP 06/2007 - 12/2012
C-CROSSER ENTERPRISE (VU_, VV_)
Description Cylinder Capacity Horse Power Year
2.4 16V 2360 CCM 170 HP From 01/2009
2.2 HDi 2179 CCM 156 HP From 01/2009
MITSUBISHI
GALANT / ASPIRE Mk VI (EA_)
Description Cylinder Capacity Horse Power Year
2.5 V6 24V (EC5A) 2498 CCM 280 HP 09/1996 - 10/2002
LANCER VIII (CY_A, CZ_A)
Description Cylinder Capacity Horse Power Year
EVO X (CZ4A) 1998 CCM 301 HP 06/2008 - 03/2015
2.0 i Ralliart 4WD (CY4A) 1998 CCM 241 HP From 10/2008
LANCER VIII Sportback (CX_A)
Description Cylinder Capacity Horse Power Year
2.0 Ralliart 4WD (CX4A) 1998 CCM 241 HP From 10/2008
OUTLANDER I (CU_W)
Description Cylinder Capacity Horse Power Year
2.0 4WD (CU2W) 1997 CCM 136 HP 05/2003 - 10/2006
2.4 4WD (CU5W) 2378 CCM 160 HP 11/2003 - 09/2007
2.4 4WD (CU5W) 2378 CCM 162 HP 05/2003 - 09/2007
2.0 (CU2W) 1997 CCM 136 HP 05/2003 - 10/2006
OUTLANDER II (CW_W)
Description Cylinder Capacity Horse Power Year
2.0 (CW4W) 1998 CCM 147 HP 11/2006 - 11/2012
2.2 DI-D 2268 CCM 177 HP 11/2006 - 11/2012
2.2 DI-D 4WD 2268 CCM 177 HP 11/2006 - 11/2012
2.2 DI-D 4WD 2268 CCM 140 HP 09/2010 - 11/2012
2.0 4WD 1998 CCM 147 HP 11/2006 - 11/2012
2.4 Flex 4WD 2360 CCM 170 HP 09/2007 - 11/2012
2.0 DI-D (CW8W) 1968 CCM 140 HP 02/2007 - 11/2012
2.4 4WD (CW5W) 2360 CCM 170 HP 09/2007 - 11/2012
2.2 DI-D 4WD 2179 CCM 156 HP 08/2007 - 11/2012
2.4 (CW5W) 2360 CCM 170 HP 11/2006 - 11/2012
OUTLANDER II Van (CW_W)
Description Cylinder Capacity Horse Power Year
Di-D 4WD (CW8W) 1968 CCM 140 HP 12/2006 - 06/2010
Di-D 4WD (CW1W) 2268 CCM 177 HP 09/2010 - 12/2012
OUTLANDER III (GG_W, GF_W, ZJ, ZL, ZK)
Description Cylinder Capacity Horse Power Year
2.0 (GF7W) 1998 CCM 150 HP 08/2012 - 12/2022
2.0 4WD (GF7W) 1998 CCM 150 HP 08/2012 - 12/2022
2.2 DI-D (GF6W) 2268 CCM 150 HP 08/2012 - 12/2022
2.2 DI-D 4WD (GF6W) 2268 CCM 150 HP 08/2012 - 12/2022
2.0 Hybrid 4WD (GG2W) 1998 CCM 200 HP 01/2014 - 12/2021
2.4 Hybrid 4WD (GG3W) 2360 CCM 208 HP 09/2018 - 12/2022
Plug-in Hybrid (GG2W) 1998 CCM 200 HP 09/2017 - 12/2021
2.4 Hybrid 4WD 2360 CCM 224 HP 09/2019 - 12/2022
OUTLANDER III Van (GF_W, GG_W)
Description Cylinder Capacity Horse Power Year
Di-D 4WD (GF6W) 2268 CCM 150 HP From 04/2013
Hybrid 4WD (GG3W) 2360 CCM 208 HP From 09/2018
PEUGEOT
4007 (VU_, VV_)
Description Cylinder Capacity Horse Power Year
2.2 HDi 2179 CCM 156 HP 02/2007 - 03/2013
2.4 16V 2360 CCM 170 HP 02/2007 - 03/2013

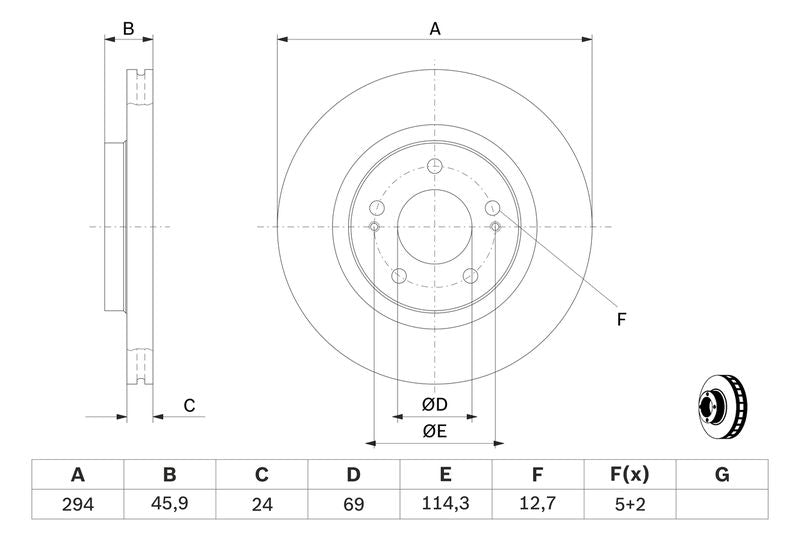

The Bosch 0986479372 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 294 mm outer diameter, 24 mm brake disc thickness, 22.4 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Outer Diameter [mm] : 294
Brake Disc Thickness [mm] : 24
Minimum thickness [mm] : 22.4
Height [mm] : 45.9
Bolt Hole Circle Ø [mm] : 114.3
Brake Disc Type : Vented
Centering Diameter [mm] : 69
Number of Holes : 5
Surface : Oiled
fulfils ECE standard : ECE-R90
Bore Diameter up to [mm] : 12.7
  • Vendor BOSCH
  • SKU 0986479372
  • Barcode 4047024293243
  • CITROËN : 16 063 757 80 16 114 298 80 4249 F3 4249 58 4249 59
  • MITSUBISHI : MR205215 4615A179
  • PEUGEOT : 16 063 757 80 16 114 298 80 4249 F3 4249 58 4249 59
  • APEC : DSK2297
  • APEC : SDK6130
  • BLUE PRINT : ADC44367
  • BLUE PRINT : ADC44392
  • BORG & BECK : BBD4481
  • BREMBO : 09.A738.11
  • BREMBO : 09.A738.14
  • BREMBO : 09.A738.1X
  • DELPHI : BG4038C
  • Fahren : FBD6130
  • FEBI BILSTEIN : 28440
  • FTE : 9072260
  • FTE : 9082195
  • HELLA : 8DD 355 111-571
  • MEYLE : 32-15 521 0025
  • MEYLE : 32-15 521 0025/PD
  • MINTEX : MDC1385
  • NAPA : NBD5294
  • National : NBD978
  • SKF : VKBD 80127 V2
  • TEXTAR : 92135203
  • TRW : DF6174
  • VALEO : 672931
  • BOSCH : BD1210
