Bosch 0986479378 Brake Disc

SKU: 0986479378
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£66.65 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

ALFA ROMEO
159 (939_)
Description Cylinder Capacity Horse Power Year
1.9 JTS (939AXA1B) 1859 CCM 160 HP 09/2005 - 11/2011
2.2 JTS (939AXB1B, 939AXB11) 2198 CCM 185 HP 09/2005 - 11/2011
1.9 JTDM 8V (939AXE1B) 1910 CCM 120 HP 09/2005 - 11/2011
1.9 JTDM 16V (939AXC1B, 939AXC12) 1910 CCM 150 HP 09/2005 - 11/2011
1.9 JTDM 16V (939AXF1B, 939AXC1B) 1910 CCM 136 HP 09/2005 - 11/2011
1.8 MPI (939AXL1A) 1796 CCM 140 HP 06/2005 - 11/2011
159 Sportwagon (939_)
Description Cylinder Capacity Horse Power Year
1.9 JTS (939BXA1B) 1859 CCM 160 HP 03/2006 - 11/2011
2.2 JTS (939BXB1B, 939BXB11) 2198 CCM 185 HP 03/2006 - 11/2011
1.9 JTDM 8V (939BXE1B) 1910 CCM 120 HP 03/2006 - 11/2011
1.9 JTDM 16V (939BXC1B, 939BXC12) 1910 CCM 150 HP 03/2006 - 11/2011
1.9 JTDM 16V (939BXC1B) 1910 CCM 136 HP 03/2006 - 11/2011
1.9 JTDM 8V (939AXH1B, 939BXH1B) 1910 CCM 115 HP 03/2006 - 11/2011
1.8 MPI (939BXL1A) 1796 CCM 140 HP 06/2005 - 11/2011
BRERA (939_)
Description Cylinder Capacity Horse Power Year
2.2 JTS (939.DXB11) 2198 CCM 185 HP 01/2006 - 05/2011
SPIDER (939_)
Description Cylinder Capacity Horse Power Year
2.2 JTS (939EXB1B, 939EXB11) 2198 CCM 185 HP 03/2006 - 03/2011

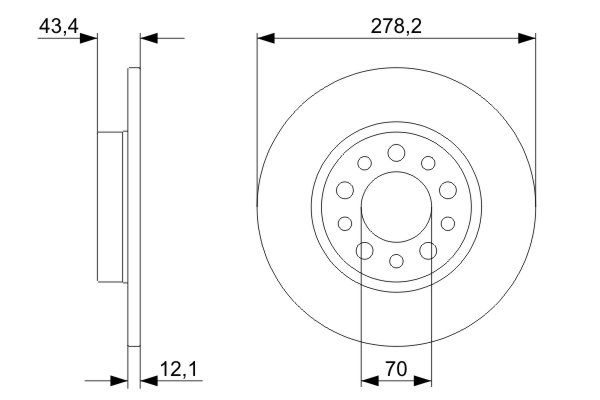

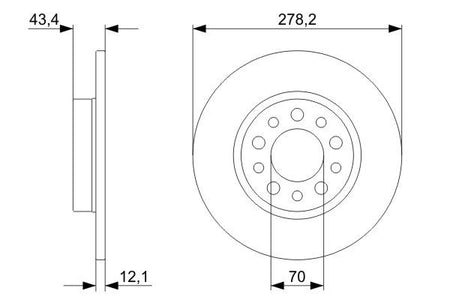

The Bosch 0986479378 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 278 mm outer diameter, 12 mm brake disc thickness, 10 mm minimum thickness, and solid disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Outer Diameter [mm] : 278
Brake Disc Thickness [mm] : 12
Minimum thickness [mm] : 10
Height [mm] : 43.2
Bolt Hole Circle Ø [mm] : 110
Brake Disc Type : solid
Centering Diameter [mm] : 70
Number of Holes : 5
Surface : Oiled
fulfils ECE standard : ECE-R90
Bore Diameter up to [mm] : 16.6
  • Vendor BOSCH
  • SKU 0986479378
  • Barcode 4047024293205
  • ALFA ROMEO : 46843610 51760273
  • FIAT : 46843610 51760273
  • BLUE PRINT : ADL144323
  • BORG & BECK : BBD4515
  • BREMBO : 08.9364.10
  • BREMBO : 08.9364.11
  • DELPHI : BG3994
  • FEBI BILSTEIN : 43880
  • FTE : 9072213
  • HELLA : 8DD 355 112-541
  • HELLA : 8DD 355 117-241
  • MEYLE : 15-15 523 0003/PD
  • MINTEX : MDC1741
  • SKF : VKBD 90505 S2
  • TEXTAR : 92145203
  • TRW : DF4477
  • BOSCH : BD1214
  • BOSCH : E1 90R-02C0355/0255
