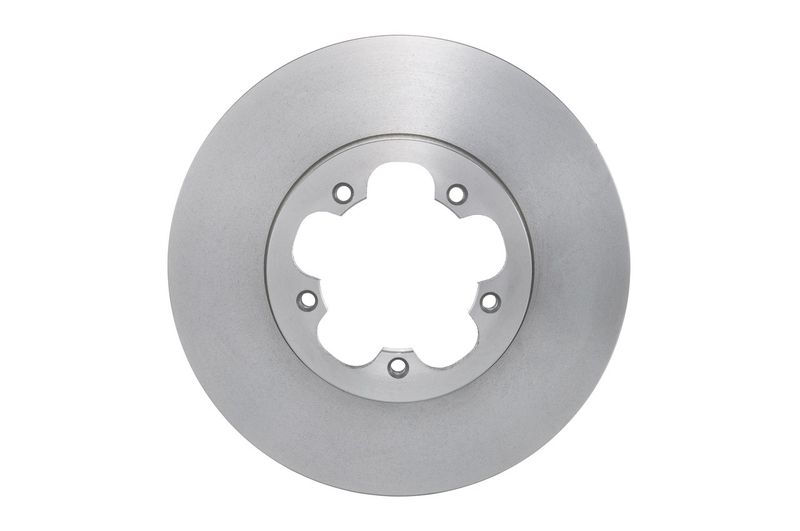

Bosch 0986479392 Brake Disc - 1
Bosch 0986479392 Brake Disc - 2

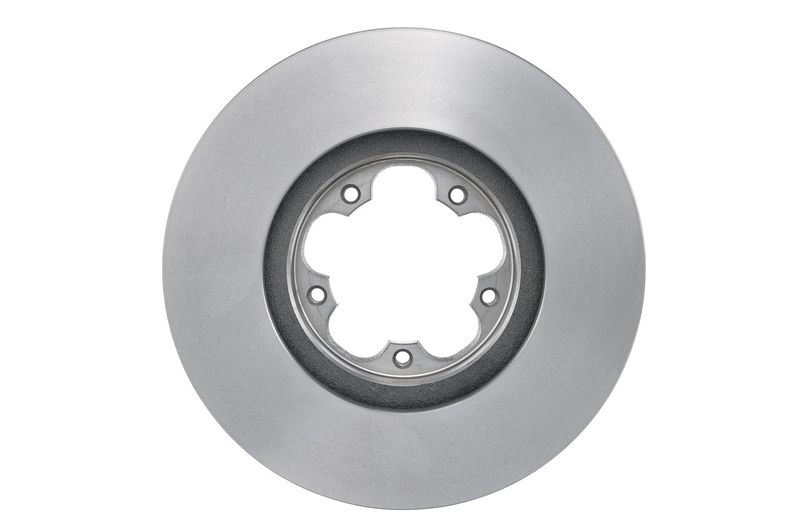

Bosch 0986479392 Brake Disc - 3
Bosch 0986479392 Brake Disc - 4

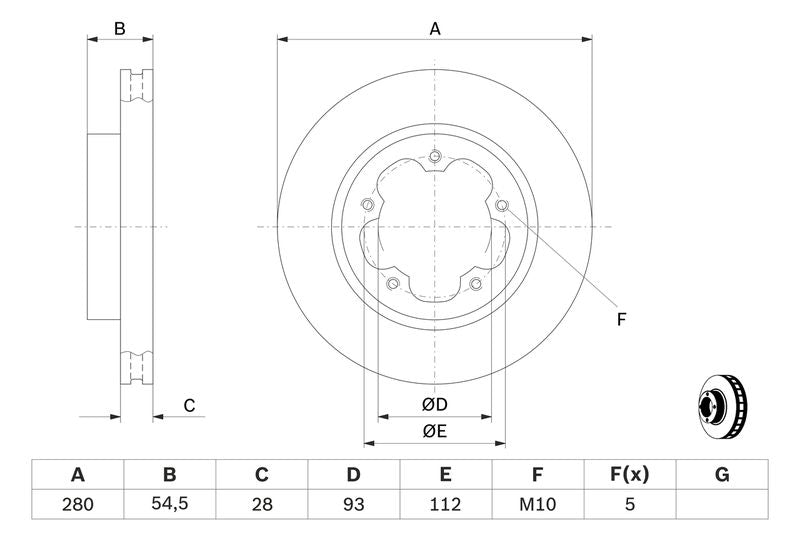

Bosch 0986479392 Brake Disc - 5

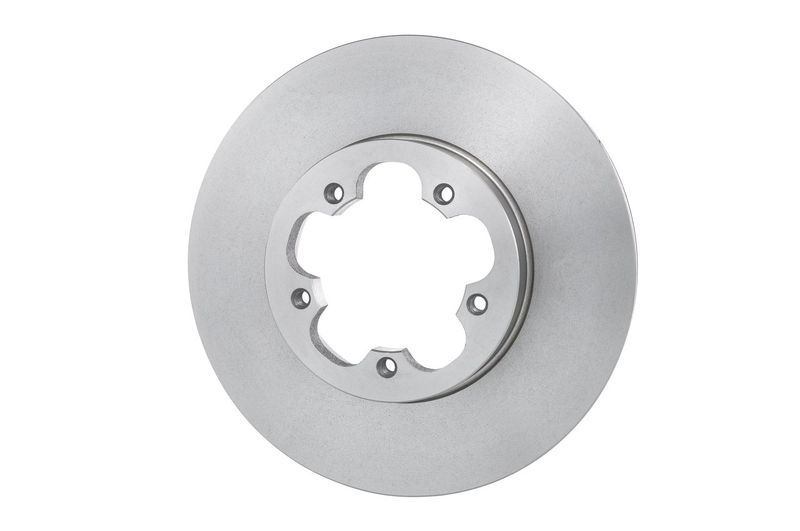

Bosch 0986479392 Brake Disc - 6
Bosch 0986479392 Brake Disc - 1
Bosch 0986479392 Brake Disc - 2
Bosch 0986479392 Brake Disc - 3
Bosch 0986479392 Brake Disc - 4
Bosch 0986479392 Brake Disc - 5
Bosch 0986479392 Brake Disc - 6
BOSCH

Bosch 0986479392 Brake Disc

SKU: 0986479392
Your selected vehicle
Out of stock
Out of Stock
£75.38 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

FORD
TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _)
Description Cylinder Capacity Horse Power Year
2.2 TDCi 2198 CCM 100 HP 10/2011 - 08/2014
2.2 TDCi 2198 CCM 125 HP 10/2011 - 08/2014
2.2 TDCi 2198 CCM 110 HP 04/2006 - 08/2014
2.2 TDCi 2198 CCM 85 HP 04/2006 - 08/2014
2.2 TDCi 2198 CCM 130 HP 04/2006 - 08/2014
TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _)
Description Cylinder Capacity Horse Power Year
2.2 TDCi 2198 CCM 100 HP 10/2011 - 08/2014
2.2 TDCi 2198 CCM 125 HP 10/2011 - 08/2014
2.2 TDCi 2198 CCM 85 HP 04/2006 - 08/2014
2.2 TDCi 2198 CCM 110 HP 04/2006 - 08/2014
2.2 TDCi 2198 CCM 130 HP 04/2006 - 08/2014
2.2 TDCi 2198 CCM 140 HP 10/2007 - 08/2014
2.2 TDCi 2198 CCM 115 HP 10/2008 - 08/2014
TRANSIT Van (FA_ _)
Description Cylinder Capacity Horse Power Year
2.2 TDCi 2198 CCM 100 HP 10/2011 - 08/2014
2.2 TDCi 2198 CCM 125 HP 10/2011 - 08/2014
2.2 TDCi 2198 CCM 110 HP 04/2006 - 08/2014
2.2 TDCi 2198 CCM 130 HP 04/2006 - 08/2014
2.2 TDCi 2198 CCM 85 HP 04/2006 - 08/2014
TRANSIT TOURNEO Bus
Description Cylinder Capacity Horse Power Year
2.2 TDCi 2198 CCM 110 HP 07/2006 - 08/2014
2.2 TDCi 2198 CCM 131 HP 07/2006 - 08/2014
2.2 TDCi 2198 CCM 140 HP 10/2007 - 08/2014
2.2 TDCi 2198 CCM 115 HP 10/2008 - 08/2014
2.2 2198 CCM 125 HP 10/2011 - 08/2014

The Bosch 0986479392 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 280 mm outer diameter, 28 mm brake disc thickness, 25 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Outer Diameter [mm] : 280
Brake Disc Thickness [mm] : 28
Minimum thickness [mm] : 25
Height [mm] : 54.4
Bolt Hole Circle Ø [mm] : 112
Brake Disc Type : Vented
Centering Diameter [mm] : 93
Number of Holes : 5
Surface : Oiled
fulfils ECE standard : ECE-R90
  • Vendor BOSCH
  • SKU 0986479392
  • Barcode 4047024393318
  • FORD : 1371394 1503290 1547061 2256311 6C111125BA 6C111125BB 6C111125B1B
  • APEC : DSK2425
  • APEC : SDK6080
  • BLUE PRINT : ADF124342
  • BORG & BECK : BBD4563
  • BOSCH : 0 986 479 C09
  • BREMBO : 09.A529.10
  • DELPHI : BG4007
  • Fahren : FBD6080
  • FEBI BILSTEIN : 28388
  • HELLA : 8DD 355 113-261
  • MEYLE : 715 521 7043
  • MEYLE : 783 521 7043/PD
  • MINTEX : MDC1759C
  • NAPA : NBD5432
  • National : NBD1388
  • SKF : VKBD 80066 V1
  • TEXTAR : 92151803
  • TRW : DF2389S
  • TRW : DF4820S
  • VALEO : 197249
  • VALEO : 672921
  • BOSCH : BD1251
