BOSCH

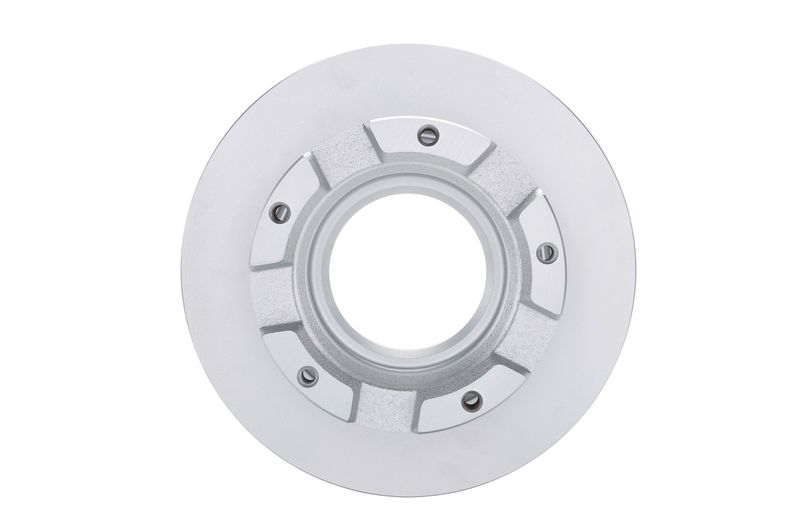

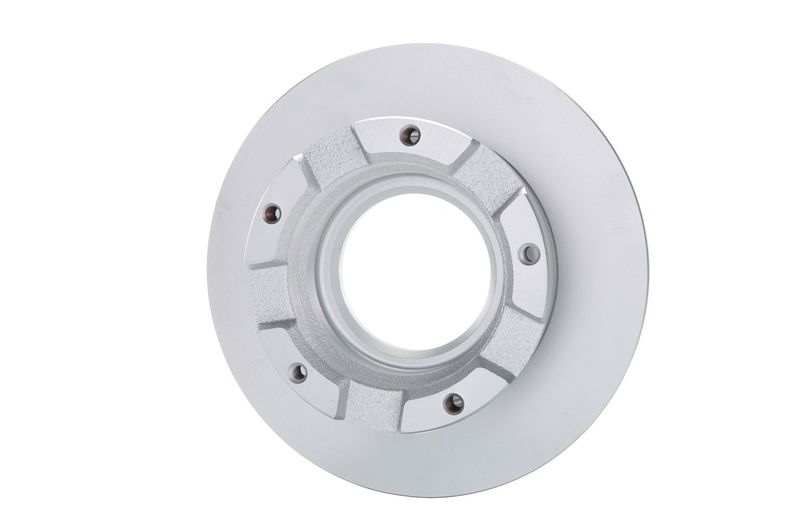

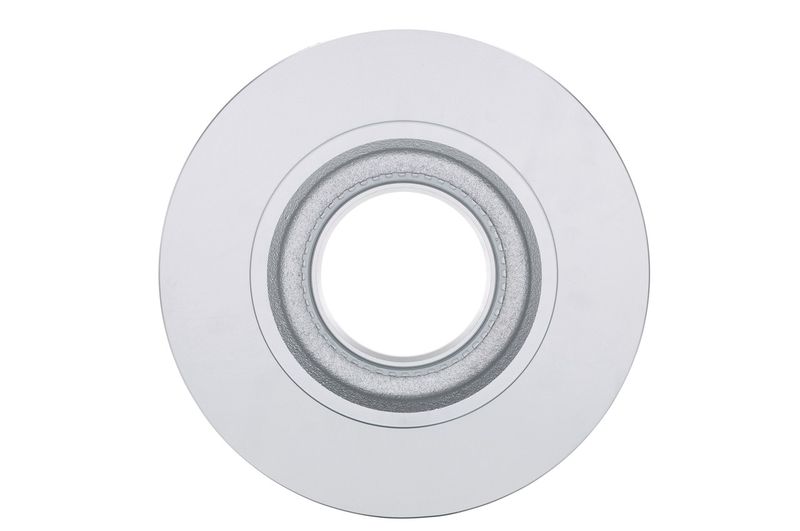

Bosch 0986479401 Brake Disc

SKU: 0986479401
Your selected vehicle
Only 4 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£46.83 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

FORD
TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _)
Description Cylinder Capacity Horse Power Year
2.2 TDCi 2198 CCM 100 HP 10/2011 - 08/2014
2.2 TDCi 2198 CCM 125 HP 10/2011 - 08/2014
2.2 TDCi 2198 CCM 110 HP 04/2006 - 08/2014
2.2 TDCi 2198 CCM 85 HP 04/2006 - 08/2014
2.2 TDCi 2198 CCM 130 HP 04/2006 - 08/2014
TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _)
Description Cylinder Capacity Horse Power Year
2.2 TDCi 2198 CCM 100 HP 10/2011 - 08/2014
2.2 TDCi 2198 CCM 125 HP 10/2011 - 08/2014
2.2 TDCi 2198 CCM 85 HP 04/2006 - 08/2014
2.2 TDCi 2198 CCM 110 HP 04/2006 - 08/2014
2.2 TDCi 2198 CCM 130 HP 04/2006 - 08/2014
2.2 TDCi 2198 CCM 140 HP 10/2007 - 08/2014
2.2 TDCi 2198 CCM 115 HP 10/2008 - 08/2014
TRANSIT Van (FA_ _)
Description Cylinder Capacity Horse Power Year
2.2 TDCi 2198 CCM 100 HP 10/2011 - 08/2014
2.2 TDCi 2198 CCM 125 HP 10/2011 - 08/2014
2.2 TDCi 2198 CCM 110 HP 04/2006 - 08/2014
2.2 TDCi 2198 CCM 130 HP 04/2006 - 08/2014
2.2 TDCi 2198 CCM 85 HP 04/2006 - 08/2014
TRANSIT TOURNEO Bus
Description Cylinder Capacity Horse Power Year
2.2 TDCi 2198 CCM 110 HP 07/2006 - 08/2014
2.2 TDCi 2198 CCM 131 HP 07/2006 - 08/2014
2.2 TDCi 2198 CCM 140 HP 10/2007 - 08/2014
2.2 TDCi 2198 CCM 115 HP 10/2008 - 08/2014
2.2 2198 CCM 125 HP 10/2011 - 08/2014

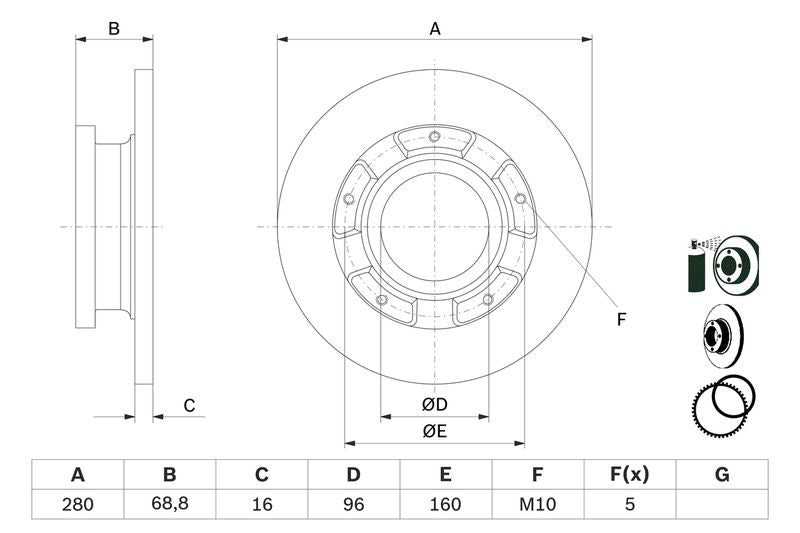

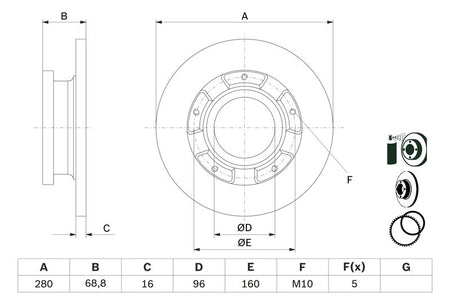

The Bosch 0986479401 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 280 mm outer diameter, 16 mm brake disc thickness, 13 mm minimum thickness, and solid disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Outer Diameter [mm] : 280
Brake Disc Thickness [mm] : 16
Minimum thickness [mm] : 13
Height [mm] : 68.8
Bolt Hole Circle Ø [mm] : 160
Brake Disc Type : solid
Centering Diameter [mm] : 96
Number of Holes : 5
Surface : Coated
Supplementary Article/Supplementary Info 2 : with ABS sensor ring
fulfils ECE standard : ECE-R90
  • Vendor BOSCH
  • SKU 0986479401
  • Barcode 4047024400054
  • FORD : 1371421 1387152 1451161 6C112A097AB 6C112A315BB
  • APEC : DSK2426
  • APEC : SDK6054
  • BLUE PRINT : ADF124318
  • BORG & BECK : BBD5932S
  • BREMBO : 08.A730.20
  • DELPHI : BG4008
  • Fahren : FBD6054
  • FEBI BILSTEIN : 40783
  • FTE : 9071221
  • FTE : 9081105
  • HELLA : 8DD 355 113-811
  • MEYLE : 715 523 0013
  • MEYLE : 715 523 0013/PD
  • MINTEX : MDC1808
  • MINTEX : MDC1808C
  • NAPA : NBD5007
  • National : NBD1419
  • SKF : VKBD 90045 S1
  • TEXTAR : 92159103
  • TRW : DF4821S
  • VALEO : 197765
  • VALEO : 672917
  • BOSCH : BD1293
