BOSCH

Bosch 0986479407 Brake Disc

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service
SKU: 0986479407

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 1 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£84.30 inc. VAT
Pay in 3 interest-free payments with Klarna
Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

MERCEDES-BENZ
C-CLASS (W204)
Description Cylinder Capacity Horse Power Year
C 250 CDI 4-matic (204.082) 2143 CCM 204 HP 01/2011 - 01/2014
C 200 (204.048) 1796 CCM 186 HP 05/2011 - 01/2014
C 220 CDI (204.008) 2148 CCM 170 HP 01/2007 - 11/2008
C 200 Kompressor (204.041) 1796 CCM 184 HP 01/2007 - 01/2014
C 230 (204.052) 2496 CCM 204 HP 01/2007 - 01/2014
C-CLASS T-Model (S204)
Description Cylinder Capacity Horse Power Year
C 250 CGI (204.247) 1796 CCM 204 HP 07/2009 - 08/2014
C 250 CDI 4-matic (204.282) 2143 CCM 204 HP 04/2010 - 08/2014
C 200 Kompressor (204.241) 1796 CCM 184 HP 08/2007 - 08/2014
C 230 (204.252) 2496 CCM 204 HP 08/2007 - 08/2014
C 280 (204.254) 2996 CCM 231 HP 08/2007 - 08/2014
C 220 CDI (204.208) 2148 CCM 170 HP 08/2007 - 11/2008
C-CLASS Coupe (C204)
Description Cylinder Capacity Horse Power Year
C 220 CDI (204.302) 2143 CCM 170 HP From 06/2011
C 250 CDI (204.303) 2143 CCM 204 HP From 06/2011
C 250 (204.347) 1796 CCM 204 HP From 06/2011
C 200 CGI (204.348) 1796 CCM 184 HP From 06/2011
C 220 CDI (204.302) 2143 CCM 163 HP From 06/2011
E-CLASS (W212)
Description Cylinder Capacity Horse Power Year
E 200 NGT (212.041) 1796 CCM 163 HP 03/2011 - 12/2015
E 200 (212.034) 1991 CCM 184 HP 01/2013 - 12/2016
E-CLASS Coupe (C207)
Description Cylinder Capacity Horse Power Year
E 250 CGI (207.347) 1796 CCM 204 HP 01/2009 - 12/2016
E 220 CDI / d (207.302, 207.301) 2143 CCM 170 HP 01/2010 - 12/2016
E 200 CGI (207.348) 1796 CCM 184 HP 01/2010 - 12/2016
E 200 (207.334) 1991 CCM 184 HP 06/2013 - 12/2016
E-CLASS T-Model (S212)
Description Cylinder Capacity Horse Power Year
E 200 CDI / BlueTEC (212.205, 212.206) 2143 CCM 136 HP 11/2009 - 12/2016
E 220 CDI / BlueTEC (212.202, 212.201) 2143 CCM 170 HP 11/2009 - 12/2016
E-CLASS Convertible (A207)
Description Cylinder Capacity Horse Power Year
E 220 CDI / BlueTEC / d (207.402, 207.401) 2143 CCM 170 HP 01/2010 - 12/2016
E 200 CGI (207.448) 1796 CCM 184 HP 01/2010 - 12/2016
E 250 CGI (207.447) 1796 CCM 204 HP 01/2010 - 12/2016
E 220 CDI (207.402) 2143 CCM 163 HP 02/2010 - 12/2016
E 200 (207.434) 1991 CCM 184 HP 03/2013 - 12/2016
SLC (R172)
Description Cylinder Capacity Horse Power Year
180 (172.431) 1595 CCM 156 HP From 01/2016
SLK (R172)
Description Cylinder Capacity Horse Power Year
200 (172.448) 1796 CCM 184 HP From 02/2011

The Bosch 0986479407 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 295 mm outer diameter, 28 mm brake disc thickness, 25.4 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

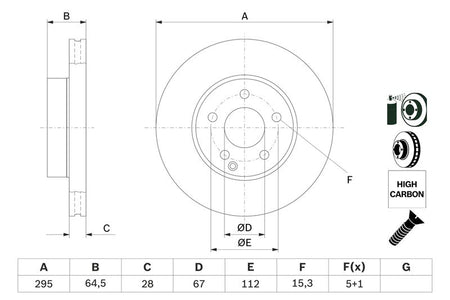

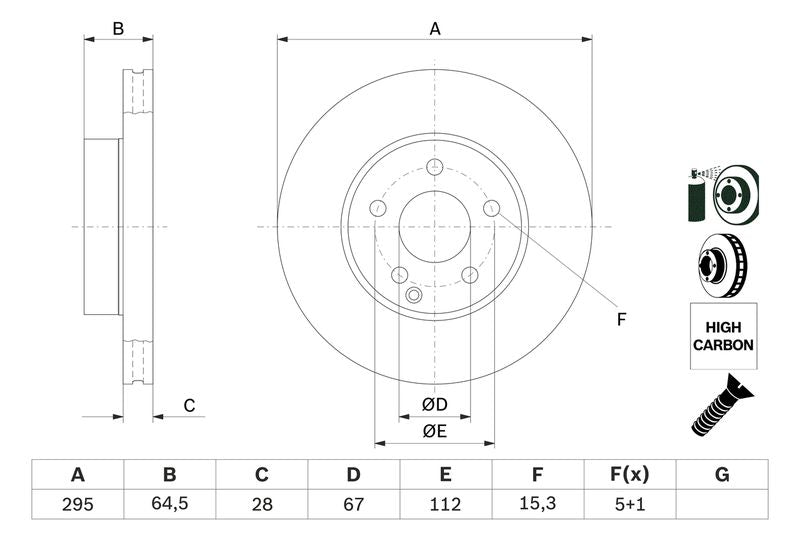

Function : Brake Disc
Outer Diameter [mm] : 295
Brake Disc Thickness [mm] : 28
Minimum thickness [mm] : 25.4
Height [mm] : 64.5
Bolt Hole Circle Ø [mm] : 112
Brake Disc Type : Vented
Centering Diameter [mm] : 67
Number of Holes : 5
Surface : Coated
Machining : High-carbon
Supplementary Article/Supplementary Info 2 : with bolts/screws
fulfils ECE standard : ECE-R90
Bore Diameter up to [mm] : 15.3
  • Vendor BOSCH
  • SKU 0986479407
  • Barcode 4047024400153
  • MERCEDES-BENZ : A 204 421 07 12 A 204 421 25 12 A 212 421 13 12 204 421 07 12 204 421 25 12 212 421 13 12
  • APEC : DSK2589
  • APEC : SDK6300
  • BLUE PRINT : ADU174306
  • BORG & BECK : BBD4629
  • BREMBO : 09.A613.40
  • BREMBO : 09.A613.41
  • BREMBO : 09.B280.41
  • BREMBO : 09.B280.4X
  • DELPHI : BG4142C
  • DELPHI : BG4945C
  • Fahren : FBD6300
  • FEBI BILSTEIN : 30550
  • FTE : 9071003
  • HELLA : 8DD 355 114-201
  • MEYLE : 015 521 2099
  • MEYLE : 083 521 2099/PD
  • MINTEX : MDC2014C
  • NAPA : NBD5539
  • National : NBD1552
  • SKF : VKBD 80181 V1
  • TEXTAR : 92163205
  • TRW : DF4863S
  • VALEO : 197202
  • VALEO : 672519
  • BOSCH : BD1301
  • BOSCH : E4-90R-02C-0786/3289
