BOSCH

Bosch 0986479416 Brake Disc

SKU: 0986479416

Your selected vehicle

Only 4 left

Low inventory - Hurry! — Order by 17:00 for same-day dispatch

£76.18 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

SSANGYONG

REXTON / REXTON II (GAB_)

Description	Cylinder Capacity	Horse Power	Year
2.9 TD	2874 CCM	120 HP	04/2002 - 08/2006
3.2 RX320 4x4	3199 CCM	220 HP	From 04/2002
2.7 Xdi	2696 CCM	163 HP	From 08/2004
2.3 RX230 4x4	2295 CCM	150 HP	05/2002 - 08/2006
2.7 Xdi 4x4	2696 CCM	165 HP	05/2004 - 05/2012

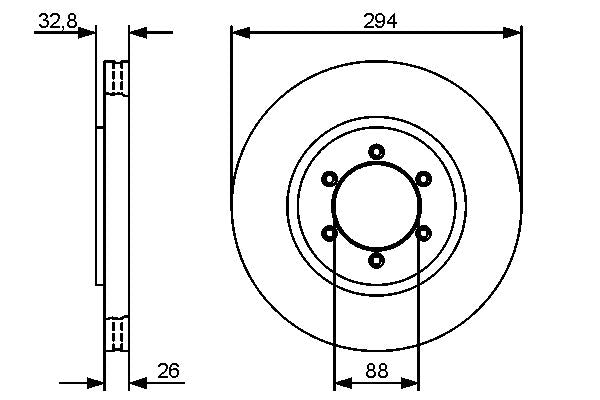

The Bosch 0986479416 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 294 mm outer diameter, 26 mm brake disc thickness, 24 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Outer Diameter [mm] : 294

Brake Disc Thickness [mm] : 26

Minimum thickness [mm] : 24

Height [mm] : 32.6

Bolt Hole Circle Ø [mm] : 109

Brake Disc Type : Vented

Centering Diameter [mm] : 88

Number of Holes : 6

Surface : Oiled

Machining : High-carbon

Bore Diameter up to [mm] : 12.5

BLUE PRINT : ADG043121
BORG & BECK : BBD4583
BREMBO : 09.A302.10
BREMBO : 09.A302.11
DELPHI : BG4112
FTE : 9071365
FTE : 9081296
MINTEX : MDC1899
National : NBD1460
TEXTAR : 92162600
TRW : DF4168
TRW : DF6881
