BOSCH

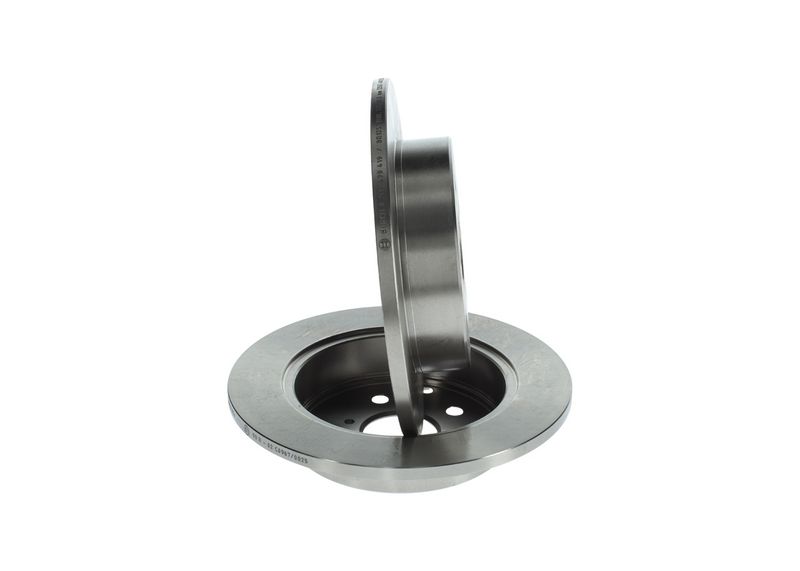

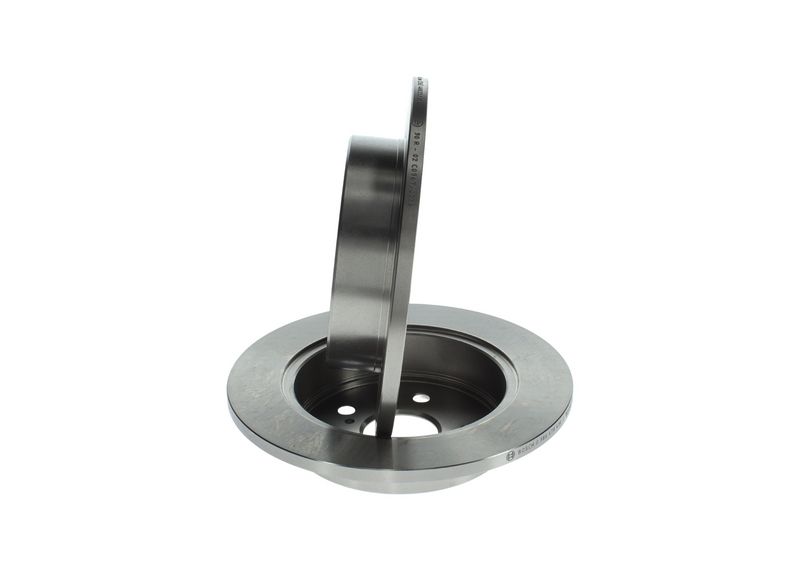

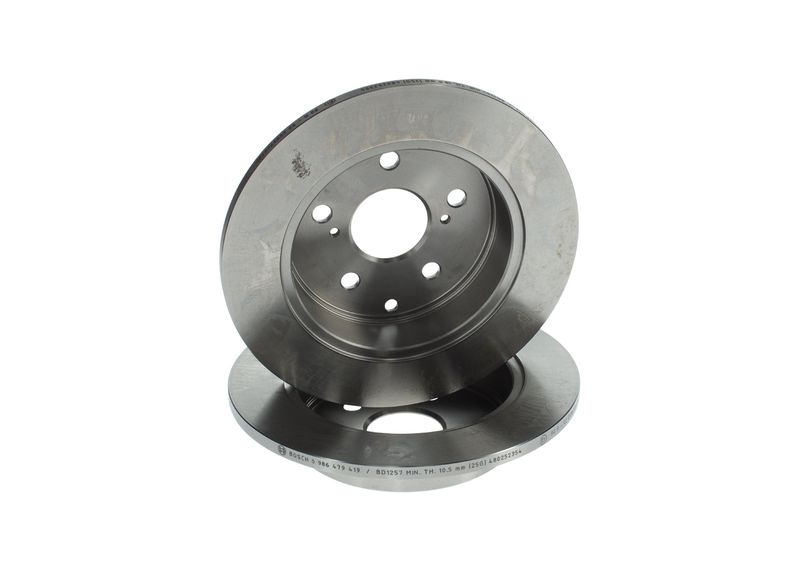

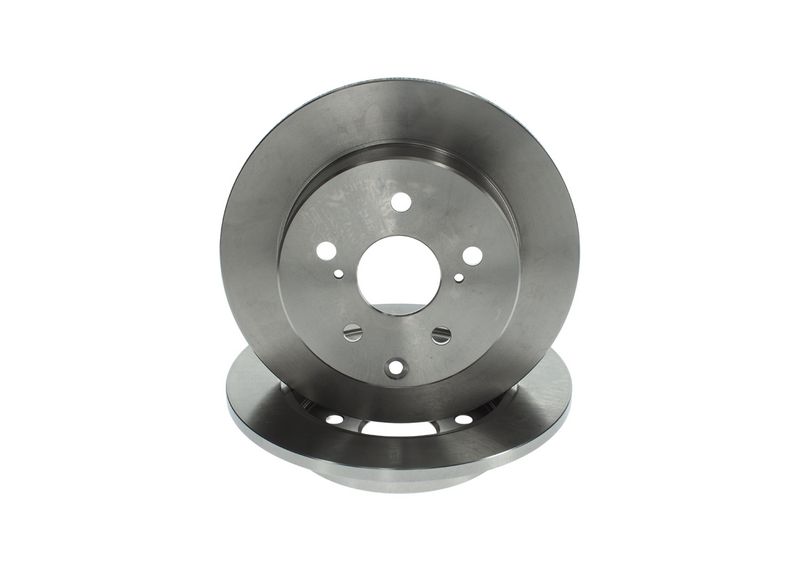

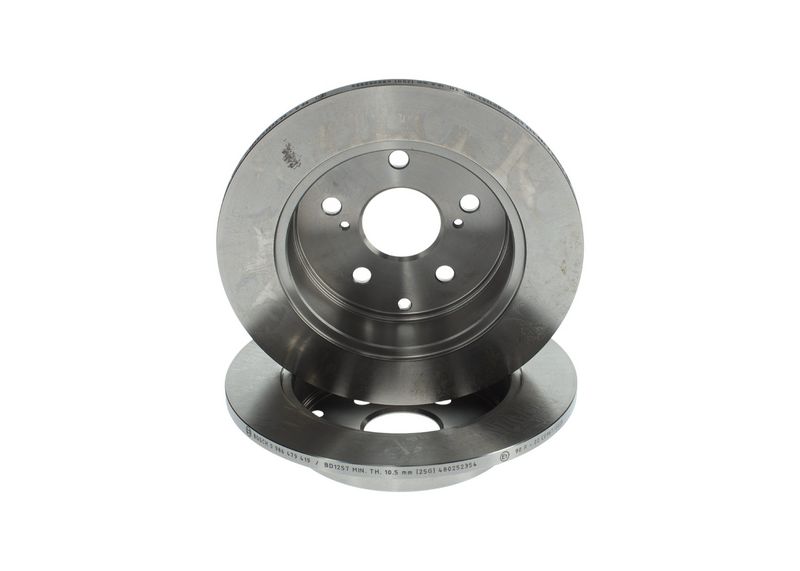

Bosch 0986479419 Brake Disc

SKU: 0986479419

Your selected vehicle

Only 5 left

Low inventory - Hurry! — Order by 17:00 for same-day dispatch

£69.57 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

TOYOTA

RAV 4 III (_A3_)

Description	Cylinder Capacity	Horse Power	Year
2.4 4WD (ACA31, ACA33)	2362 CCM	170 HP	11/2005 - 06/2013
2.0 4WD (ACA30_, ACA30R)	1998 CCM	152 HP	02/2006 - 06/2013
2.2 D 4WD (ALA30_, ALA30R)	2231 CCM	136 HP	02/2006 - 12/2012
2.2 D 4WD (ALA30_, ALA30R)	2231 CCM	177 HP	02/2006 - 06/2013
2.4 (ACA36, ACA38)	2362 CCM	170 HP	11/2005 - 12/2013
2.0 (ZSA35_, ZSA35R)	1987 CCM	158 HP	12/2008 - 06/2013
2.0 4WD (ZSA30_, ZSA30R)	1987 CCM	158 HP	12/2008 - 06/2013
2.2 D 4WD (ALA30_, ALA30R)	2231 CCM	150 HP	12/2008 - 06/2013
2.2 D (ALA35_)	2231 CCM	150 HP	12/2008 - 06/2013
2.2 D 4WD (ALA30)	2231 CCM	133 HP	11/2005 - 12/2010

RAV 4 IV (_A4_)

Description	Cylinder Capacity	Horse Power	Year
2.0 4WD (ZSA44)	1987 CCM	146 HP	12/2012 - 09/2019
2.0 D (ALA40_, ALA40R)	1998 CCM	124 HP	12/2012 - 11/2018
2.0 4WD (ZSA44_, ZSA44R)	1987 CCM	151 HP	12/2012 - 10/2018
2.2 D 4WD (ALA49)	2231 CCM	150 HP	12/2012 - 09/2019
2.0 (ZSA42)	1987 CCM	146 HP	12/2012 - 09/2019
2.5 4WD (ASA44)	2494 CCM	180 HP	12/2012 - 10/2018
2.0 D 4WD (ALA41_)	1998 CCM	124 HP	01/2013 - 11/2018
2.0 4WD (ZSA44_)	1987 CCM	151 HP	04/2015 - 10/2018
2.5 Hybrid 4WD (AVA44, AVA44_)	2494 CCM	197 HP	11/2015 - 11/2018
2.0 D (WWA42_)	1995 CCM	143 HP	10/2015 - 11/2018
2.5 (ASA42)	2494 CCM	180 HP	12/2012 - 11/2018
2.5 Hybrid (AVA42_)	2494 CCM	197 HP	11/2015 - 11/2018
2.0 (ZSA42)	1987 CCM	143 HP	12/2012 - 09/2019

RAV 4 IV VAN (_A4_)

Description	Cylinder Capacity	Horse Power	Year
2.0 VVTi 4WD (ZSA44)	1987 CCM	152 HP	12/2012 - 11/2018

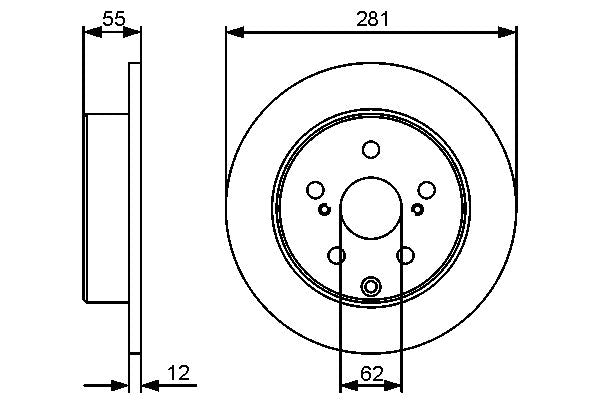

The Bosch 0986479419 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 281 mm outer diameter, 12 mm brake disc thickness, 10.5 mm minimum thickness, and solid disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Outer Diameter [mm] : 281

Brake Disc Thickness [mm] : 12

Minimum thickness [mm] : 10.5

Height [mm] : 55

Bolt Hole Circle Ø [mm] : 114.3

Brake Disc Type : solid

Centering Diameter [mm] : 62.01

Number of Holes : 5

Surface : Oiled

fulfils ECE standard : ECE-R90

Bore Diameter up to [mm] : 14.4

APEC : DSK2524
APEC : SDK6510
BLUE PRINT : ADT343207
BORG & BECK : BBD4603
BREMBO : 08.A429.10
BREMBO : 08.A429.11
BREMBO : 08.A429.1X
DELPHI : BG4115
Fahren : FBD6510
FEBI BILSTEIN : 29353
FTE : 9072288
FTE : 9082196
HELLA : 8DD 355 118-881
MEYLE : 30-15 523 0102/PD
MINTEX : MDC1826
NAPA : NBD5182
National : NBD1456
SKF : VKBD 90368 S2
TEXTAR : 92162103
TRW : DF4829
VALEO : 672727

Bosch 0986479419 Brake Disc
