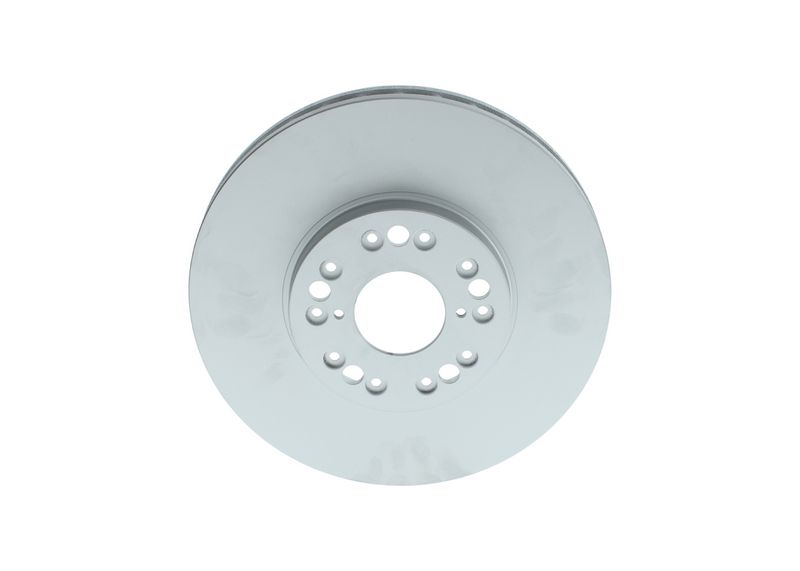

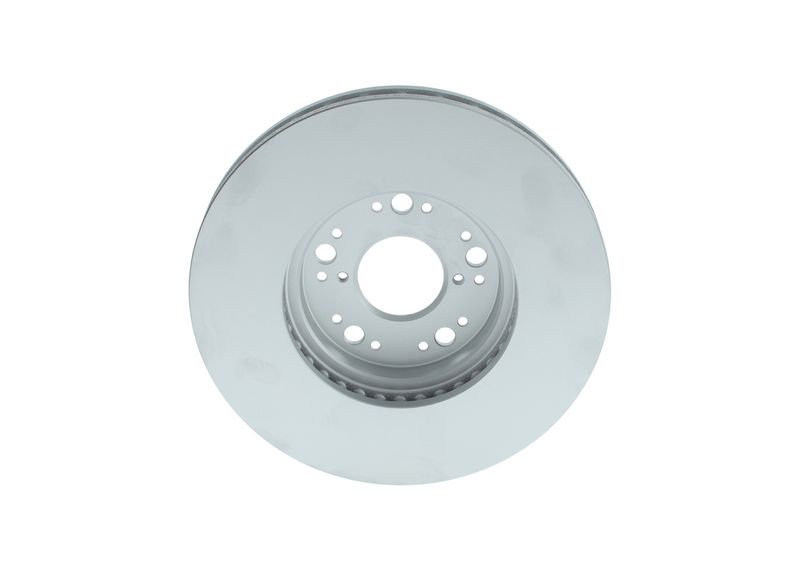

Bosch 0986479429 Brake Disc

5.0/5 78 reviews
SKU: 0986479429

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 4 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
Regular price £54.36 inc. VAT

Complete the job

Pay in 3 interest-free payments with Klarna

Available at checkout. Subject to eligibility.

Free standard delivery to UK mainland

Delivery estimate confirmed at checkout. Delivery details
Pay securely with
  • Visa
  • Mastercard
  • Apple Pay
  • PayPal
  • Klarna
  • Google Pay

Need help with fitment? 01472 869 066

Spend & Earn

Earn 2% store credit on eligible parts spend. Available 30 days after fulfilment. Sign in at checkout to use your balance.

Excludes VAT, delivery, discounts and amounts paid with store credit.

TOYOTA
ALTEZZA GITA Estate (_XE1_)
Description Cylinder Capacity Horse Power Year
2.0 (GXE10) 1988 CCM 155 HP 01/1999 - 06/2001
3.0 (JCE10) 2997 CCM 214 HP 07/2001 - 11/2005
2.0 4WD (GXE15) 1988 CCM 155 HP 01/2001 - 12/2005
2.0 (GXE10) 1988 CCM 160 HP 07/2001 - 07/2005
2.0 (GXE15) 1988 CCM 160 HP 07/2001 - 07/2005
ALTEZZA (_E1_)
Description Cylinder Capacity Horse Power Year
2.0 VVTi (SXE10) 1998 CCM 200 HP 10/1998 - 11/2005
2.0 VVTi (GXE10) 1988 CCM 160 HP 01/1999 - 05/2005
2.0 VVTi (SXE10) 1998 CCM 209 HP 02/1999 - 11/2005
ARISTO (_S14_)
Description Cylinder Capacity Horse Power Year
3.0 (JZS147) 2997 CCM 279 HP 10/1990 - 09/1996
4.0 4WD (UZS143) 3969 CCM 235 HP 10/1992 - 07/1997
ARISTO (_S16_)
Description Cylinder Capacity Horse Power Year
3.0 (JZS160) 2997 CCM 231 HP 08/1997 - 09/2004
3.0 (JZS161) 2997 CCM 280 HP 08/1997 - 09/2004
CELICA Coupe (_T23_)
Description Cylinder Capacity Horse Power Year
1.8 16V TS (ZZT231_, ZZT231R) 1796 CCM 192 HP 08/1999 - 09/2005
CELSIOR (UCF1_)
Description Cylinder Capacity Horse Power Year
4.0 (UCF10, UCF11) 3969 CCM 245 HP 12/1988 - 04/1993
MARK II VIII Saloon (_X10_)
Description Cylinder Capacity Horse Power Year
2.5 VVTi (JZX100) 2491 CCM 280 HP 10/1996 - 09/2001
MARK II IX Saloon (_X11_)
Description Cylinder Capacity Horse Power Year
2.5 (JZX110) 2491 CCM 280 HP 10/2000 - 11/2004
SOARER Coupe (_Z3_)
Description Cylinder Capacity Horse Power Year
3.0 (JZZ31) 2997 CCM 226 HP 09/1990 - 09/2000
4.0 (UZZ31, UZZ32, UZZ30) 3969 CCM 260 HP 05/1991 - 09/1997
VEROSSA (_X11_)
Description Cylinder Capacity Horse Power Year
2.5 VVTi (JZX110) 2491 CCM 280 HP 10/2000 - 11/2003

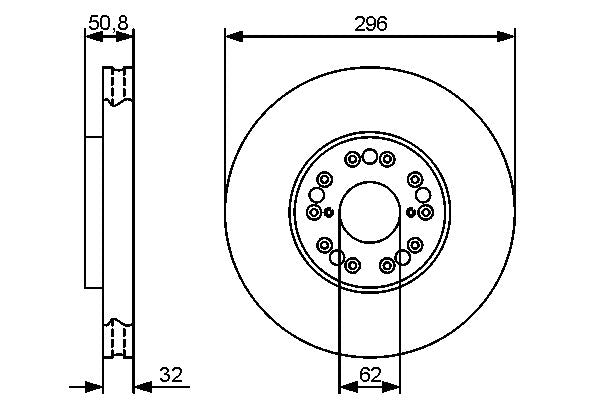

The Bosch 0986479429 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 296 mm outer diameter, 32 mm brake disc thickness, 30 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Outer Diameter [mm] : 296
Brake Disc Thickness [mm] : 32
Minimum thickness [mm] : 30
Height [mm] : 50.7
Bolt Hole Circle Ø [mm] : 114.3
Brake Disc Type : Vented
Centering Diameter [mm] : 62
Number of Holes : 5
Surface : Coated
fulfils ECE standard : ECE-R90
Bore Diameter up to [mm] : 14.6
  • Vendor BOSCH
  • SKU 0986479429
  • Barcode 4047024400160
  • TOYOTA : 43512 30180 43512 30181 43512 30241 43512 50100 43512 53010
  • LEXUS : 4351230180 4351230181 4351250100 4351253010
  • BLUE PRINT : ADT34387
  • BLUE PRINT : ADT34397
  • BREMBO : 09.8402.10
  • BREMBO : 09.8402.11
  • BREMBO : 09.8402.1X
  • DELPHI : BG2829
  • FEBI BILSTEIN : 108556
  • FTE : 9071209
  • MINTEX : MDC2517
  • MINTEX : MDC900
  • National : NBD563
  • SKF : VKBD 80278 V1
  • TEXTAR : 92237503
  • TRW : DF4182S
  • VALEO : 197194
  • BOSCH : BD1314
