BOSCH

Bosch 0986479431 Brake Disc

5.0/5 65 AutoMotoPart customer reviews Verified reviews across our products & service
SKU: 0986479431

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 2 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£106.00 inc. VAT
Pay in 3 interest-free payments with Klarna

Complete the job

APEC — Aerosol Brake cleaner 600ml
£6.92
Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

TOYOTA
COROLLA Saloon (_E15_)
Description Cylinder Capacity Horse Power Year
1.8 (ZRE142, ZRE152) 1798 CCM 136 HP 10/2006 - 07/2014
YARIS Hatchback Van (_P13_)
Description Cylinder Capacity Horse Power Year
1.3 VVTi (NSP130) 1329 CCM 99 HP 10/2012 - 03/2017
YARIS/VITZ (_P9_)
Description Cylinder Capacity Horse Power Year
1.0 VVT-i (KSP90_, KSP90R) 998 CCM 69 HP 08/2005 - 12/2011
1.8 VVTi (ZSP90_, ZSP90R) 1798 CCM 133 HP 01/2007 - 12/2011
1.5 (NCP91_, NCP91R) 1497 CCM 110 HP 01/2005 - 09/2008
1.0 VVT-i (KSP90) 998 CCM 71 HP 11/2005 - 11/2010
YARIS/VITZ (_P13_)
Description Cylinder Capacity Horse Power Year
1.3 (NSP130_, NSP130) 1329 CCM 95 HP 12/2010 - 07/2014
1.3 (NSP130_, NSP130) 1329 CCM 99 HP 09/2011 - 03/2017
1.5 Hybrid (NHP130_, NHP130) 1497 CCM 101 HP 03/2012 - 06/2020

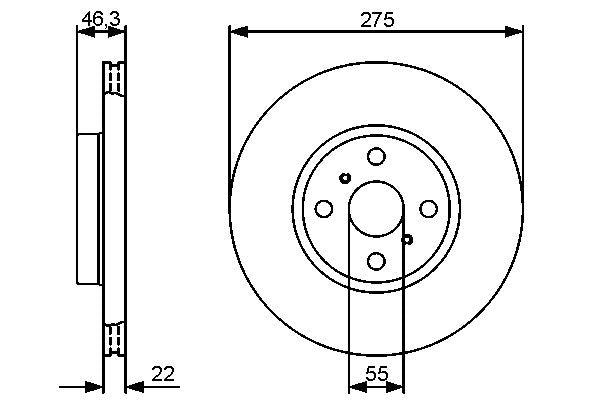

The Bosch 0986479431 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 275 mm outer diameter, 22 mm brake disc thickness, 19 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Outer Diameter [mm] : 275
Brake Disc Thickness [mm] : 22
Minimum thickness [mm] : 19
Height [mm] : 46.3
Bolt Hole Circle Ø [mm] : 100
Brake Disc Type : Vented
Centering Diameter [mm] : 55.05
Number of Holes : 4
Surface : Oiled
fulfils ECE standard : ECE-R90
Bore Diameter up to [mm] : 14.5
  • Vendor BOSCH
  • SKU 0986479431
  • Barcode 4047024393349
  • TOYOTA : 43512 52130 435120D080 435120D100 435120D190
  • LEXUS : 435120D100 435120D190
  • APEC : DSK2517
  • BLUE PRINT : ADT343217
  • BORG & BECK : BBD4559
  • BORG & BECK : BBD4560
  • BREMBO : 09.A535.10
  • BREMBO : 09.A535.11
  • BREMBO : 09.A535.1X
  • DELPHI : BG4054
  • FEBI BILSTEIN : 108645
  • FTE : 9072238
  • FTE : 9082167
  • HELLA : 8DD 355 113-591
  • MEYLE : 30-15 521 0059
  • MINTEX : MDC2061
  • National : NBD1610
  • SKF : VKBD 80495 V2
  • TEXTAR : 92156200
  • TRW : DF4804
  • VALEO : 197182
  • VALEO : 672750
  • BOSCH : BD1262
  • BOSCH : E1 90 R - 02 C0074/0821
