BOSCH

Bosch 0986479434 Brake Disc

SKU: 0986479434
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£76.46 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

HYUNDAI
SANTA FÉ I SUV Van (SM)
Description Cylinder Capacity Horse Power Year
CRDi 4x4 1991 CCM 125 HP 08/2003 - 03/2006
SANTA FÉ I (SM)
Description Cylinder Capacity Horse Power Year
2.7 4x4 2656 CCM 180 HP 11/2000 - 03/2006
2.4 16V 2351 CCM 136 HP 02/2001 - 03/2006
2.7 V6 4x4 2656 CCM 173 HP 02/2001 - 03/2006
2.0 CRDi 4x4 1991 CCM 113 HP 04/2001 - 03/2006
2.4 16V 4x4 2351 CCM 136 HP 02/2001 - 03/2006
2.4 16V 2351 CCM 146 HP 02/2001 - 03/2006
2.4 16V 4x4 2351 CCM 146 HP 02/2001 - 03/2006
2.0 CRDi 1991 CCM 113 HP 08/2001 - 03/2006
2.0 1997 CCM 135 HP 08/2001 - 03/2006
2.0 CRDi 4x4 1991 CCM 125 HP 08/2003 - 03/2006
2.0 CRDi All-wheel Drive 1991 CCM 145 HP 11/2003 - 02/2006
2.7 4x4 2656 CCM 175 HP 09/2002 - 12/2004

The Bosch 0986479434 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 294 mm outer diameter, 26 mm brake disc thickness, 24.4 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

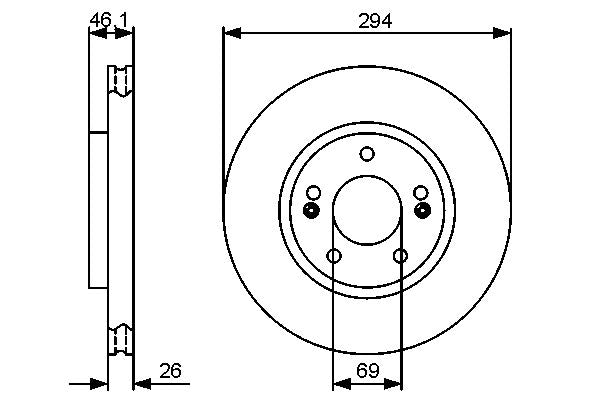

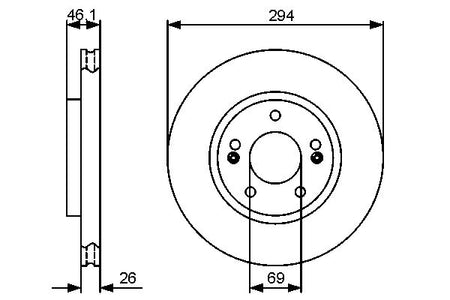

Function : Brake Disc
Outer Diameter [mm] : 294
Brake Disc Thickness [mm] : 26
Minimum thickness [mm] : 24.4
Height [mm] : 46.3
Bolt Hole Circle Ø [mm] : 114.3
Brake Disc Type : Vented
Centering Diameter [mm] : 69
Number of Holes : 5
Surface : Oiled
fulfils ECE standard : ECE-R90
Bore Diameter up to [mm] : 12.7
  • Vendor BOSCH
  • SKU 0986479434
  • Barcode 4047024400474
  • TOYOTA : 51712 26100
  • HYUNDAI : 51712 26100
  • BLUE PRINT : ADG04341
  • BORG & BECK : BBD4591
  • BREMBO : 09.9598.10
  • BREMBO : 09.9598.11
  • DELPHI : BG3860
  • FEBI BILSTEIN : 31474
  • FTE : 9072346
  • HELLA : 8DD 355 118-671
  • MEYLE : 37-15 521 0022
  • MINTEX : MDC1654
  • National : NBD1249
  • SKF : VKBD 80576 V2
  • TEXTAR : 92136403
  • TRW : DF4443
  • VALEO : 673643
  • BOSCH : BD1317
  • BOSCH : E1 90 R - 02C0074/0336
