BOSCH

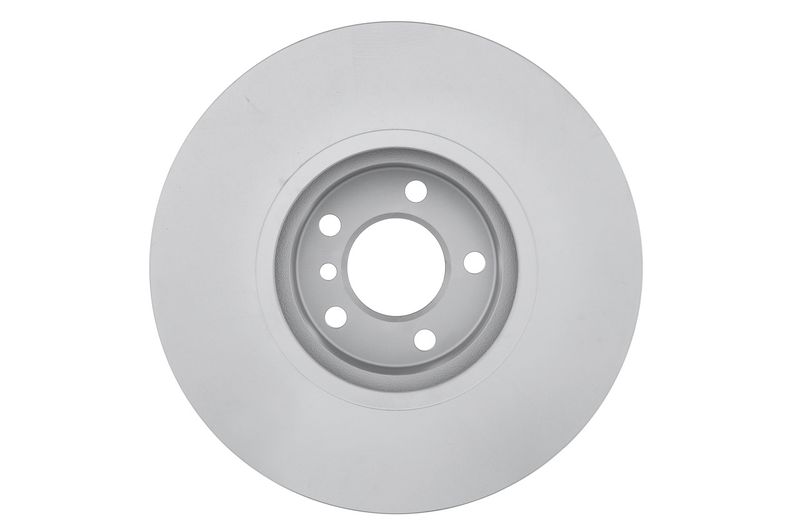

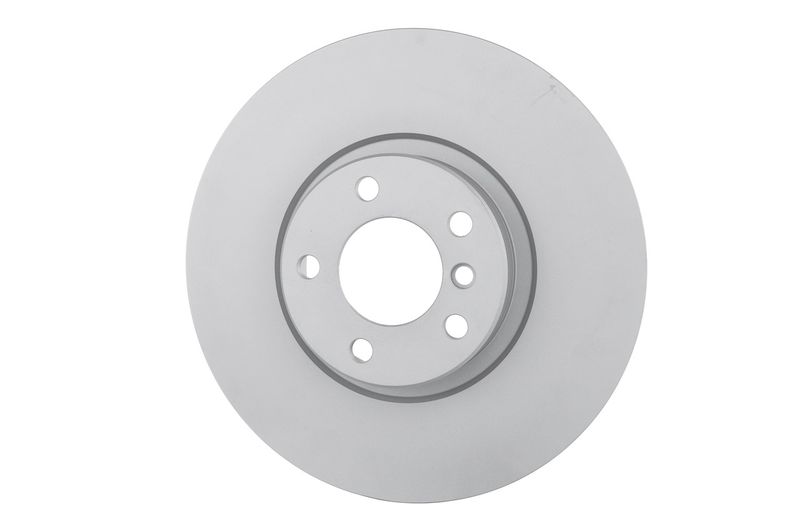

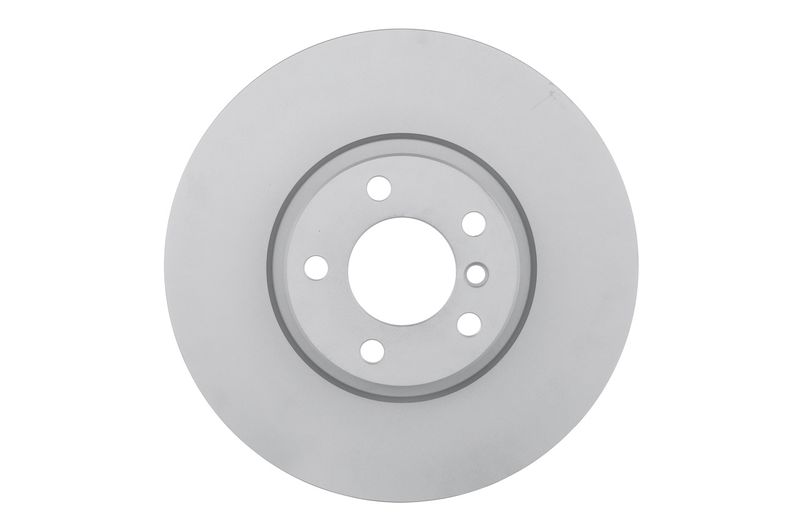

Bosch 0986479436 Brake Disc

SKU: 0986479436
Your selected vehicle
Only 3 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£90.13 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

BMW
X5 (E70)
Description Cylinder Capacity Horse Power Year
xDrive 40 d 2993 CCM 306 HP 09/2010 - 06/2013
xDrive 35 i 2979 CCM 306 HP 04/2010 - 07/2013
3.0 si 2996 CCM 272 HP 10/2006 - 09/2008
4.8 i xDrive 4799 CCM 355 HP 10/2006 - 09/2008
3.0 d 2993 CCM 235 HP 12/2006 - 09/2008
xDrive 30 i 2996 CCM 272 HP 10/2008 - 03/2010
xDrive 48 i 4799 CCM 355 HP 10/2008 - 03/2010
xDrive 30 d 2993 CCM 235 HP 10/2008 - 03/2010
xDrive 35 d 2993 CCM 286 HP 10/2008 - 07/2013
3.0 3.0d 2993 CCM 211 HP 02/2007 - 09/2008
xDrive 35 i 2979 CCM 320 HP 02/2012 - 06/2013
X5 (F15, F85)
Description Cylinder Capacity Horse Power Year
xDrive 30 d 2993 CCM 258 HP 08/2013 - 07/2018
xDrive 35 i 2979 CCM 306 HP 12/2013 - 07/2018
xDrive 40 d 2993 CCM 313 HP 12/2013 - 07/2018
xDrive 35 i 2979 CCM 326 HP 12/2013 - 07/2018
xDrive 30 d 2993 CCM 277 HP 08/2013 - 07/2018
xDrive 40e 1997 CCM 313 HP 08/2015 - 07/2018
xDrive 25 d 2993 CCM 218 HP 04/2014 - 07/2018
X6 (E71, E72)
Description Cylinder Capacity Horse Power Year
xDrive 40 d 2993 CCM 306 HP 07/2009 - 06/2014
xDrive 35 i 2979 CCM 306 HP 01/2008 - 07/2014
xDrive 30 d 2993 CCM 235 HP 04/2008 - 03/2010
xDrive 35 d 2993 CCM 286 HP 01/2008 - 03/2010
xDrive 35 i 2979 CCM 320 HP 08/2012 - 06/2014
X6 (F16, F86)
Description Cylinder Capacity Horse Power Year
xDrive 30 d 2993 CCM 258 HP 08/2014 - 07/2019
xDrive 30 d 2993 CCM 211 HP 08/2014 - 07/2019
xDrive 35 i 2979 CCM 306 HP 08/2014 - 07/2019
xDrive 40 d 2993 CCM 313 HP 12/2014 - 07/2019
xDrive 30 d 2993 CCM 277 HP 08/2014 - 07/2019
xDrive 35 i 2979 CCM 326 HP 08/2014 - 07/2019
xDrive 30 d 2993 CCM 249 HP 12/2014 - 07/2019

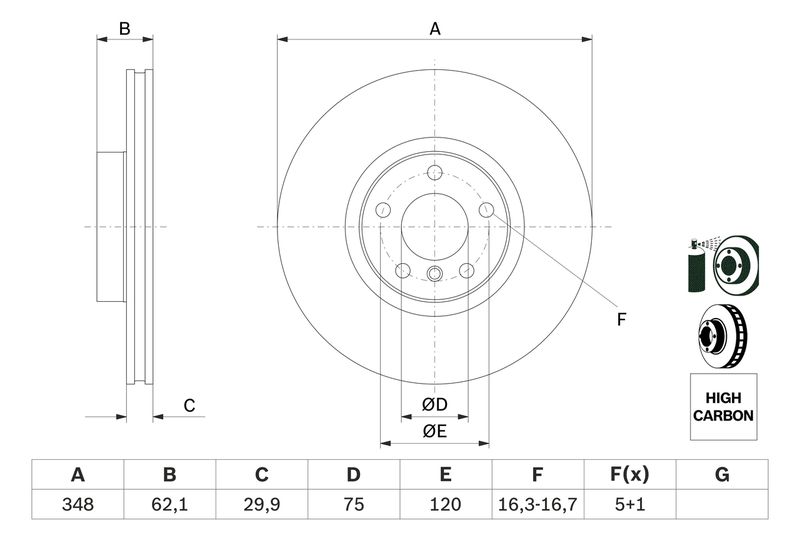

The Bosch 0986479436 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 347.8 mm outer diameter, 30 mm brake disc thickness, 28.4 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Outer Diameter [mm] : 347.8
Brake Disc Thickness [mm] : 30
Minimum thickness [mm] : 28.4
Height [mm] : 62.2
Bolt Hole Circle Ø [mm] : 120
Brake Disc Type : Vented
Centering Diameter [mm] : 75
Number of Holes : 5
Surface : Coated
Machining : High-carbon
fulfils ECE standard : ECE-R90
Bore Diameter up to [mm] : 16.8
  • Vendor BOSCH
  • SKU 0986479436
  • Barcode 4047024400320
  • BMW : 34 11 6 771 986 34 11 6 793 244 34 11 6 868 938 34 11 6 886 477
  • APEC : DSK2600
  • APEC : SDK6551
  • BLUE PRINT : ADB114302
  • BORG & BECK : BBD5823S
  • BREMBO : 09.9922.11
  • BREMBO : 09.9922.1X
  • DELPHI : BG9063C
  • Fahren : FBD6551
  • FEBI BILSTEIN : 32261
  • FTE : 9081327
  • HELLA : 8DD 355 117-741
  • HELLA : 8DD 355 129-301
  • MEYLE : 383 521 0005/PD
  • MINTEX : MDC2328
  • NAPA : NBD5135
  • National : NBD1525
  • SKF : VKBD 80199 V1
  • TEXTAR : 92160900
  • TEXTAR : 92160905
  • TRW : DF4853S
  • VALEO : 197178
  • VALEO : 673209
  • BOSCH : BD1318
  • BOSCH : E1 90 R -02C0348/0329
