BOSCH

Bosch 0986479442 Brake Disc

SKU: 0986479442

Your selected vehicle

Only 4 left

Low inventory - Hurry! — Order by 17:00 for same-day dispatch

£103.72 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

BMW

X5 (E70)

Description	Cylinder Capacity	Horse Power	Year
xDrive 30 d	2993 CCM	245 HP	04/2010 - 07/2013
xDrive 40 d	2993 CCM	306 HP	09/2010 - 06/2013
xDrive 35 i	2979 CCM	306 HP	04/2010 - 07/2013
3.0 si	2996 CCM	272 HP	10/2006 - 09/2008
3.0 d	2993 CCM	235 HP	12/2006 - 09/2008
xDrive 30 i	2996 CCM	272 HP	10/2008 - 03/2010
xDrive 30 d	2993 CCM	235 HP	10/2008 - 03/2010
xDrive 35 d	2993 CCM	286 HP	10/2008 - 07/2013
3.0 3.0d	2993 CCM	211 HP	02/2007 - 09/2008
xDrive 35 i	2979 CCM	320 HP	02/2012 - 06/2013

X5 (F15, F85)

Description	Cylinder Capacity	Horse Power	Year
xDrive 30 d	2993 CCM	258 HP	08/2013 - 07/2018
xDrive 35 i	2979 CCM	306 HP	12/2013 - 07/2018
sDrive 25 d	1995 CCM	218 HP	12/2013 - 07/2015
xDrive 25 d	1995 CCM	218 HP	12/2013 - 07/2015
xDrive 35 i	2979 CCM	326 HP	12/2013 - 07/2018
xDrive 30 d	2993 CCM	277 HP	08/2013 - 07/2018
sDrive 25 d	1995 CCM	231 HP	08/2015 - 07/2018
xDrive 25 d	1995 CCM	231 HP	08/2015 - 07/2018
xDrive 40e	1997 CCM	313 HP	08/2015 - 07/2018
xDrive 25 d	2993 CCM	218 HP	04/2014 - 07/2018

X6 (E71, E72)

Description	Cylinder Capacity	Horse Power	Year
xDrive 30 d	2993 CCM	245 HP	04/2010 - 07/2014
xDrive 40 d	2993 CCM	306 HP	07/2009 - 06/2014
xDrive 30 d	2993 CCM	211 HP	04/2010 - 07/2014
xDrive 35 i	2979 CCM	306 HP	01/2008 - 07/2014
xDrive 30 d	2993 CCM	235 HP	04/2008 - 03/2010
xDrive 35 d	2993 CCM	286 HP	01/2008 - 03/2010
xDrive 35 i	2979 CCM	320 HP	08/2012 - 06/2014

X6 (F16, F86)

Description	Cylinder Capacity	Horse Power	Year
xDrive 30 d	2993 CCM	258 HP	08/2014 - 07/2019
xDrive 30 d	2993 CCM	211 HP	08/2014 - 07/2019
xDrive 35 i	2979 CCM	306 HP	08/2014 - 07/2019
xDrive 30 d	2993 CCM	277 HP	08/2014 - 07/2019
xDrive 35 i	2979 CCM	326 HP	08/2014 - 07/2019
xDrive 30 d	2993 CCM	249 HP	12/2014 - 07/2019

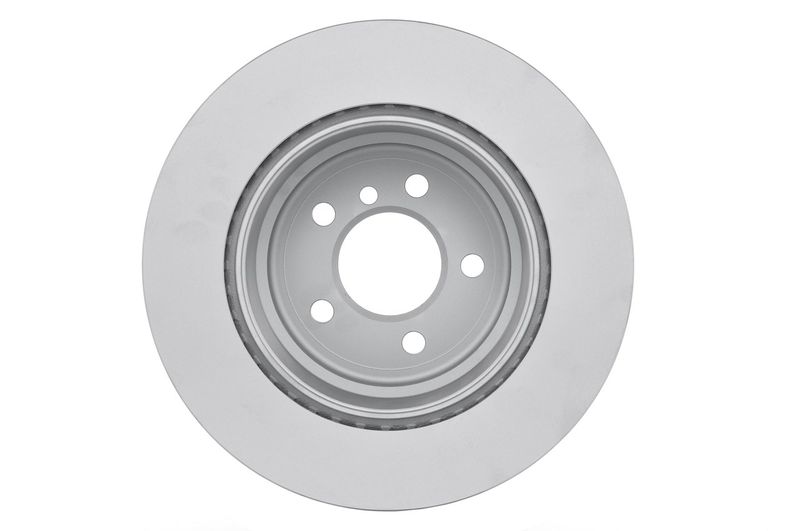

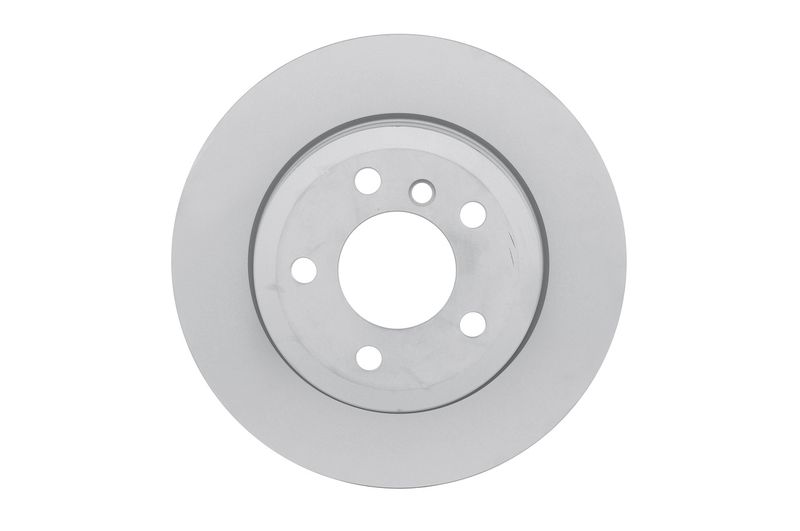

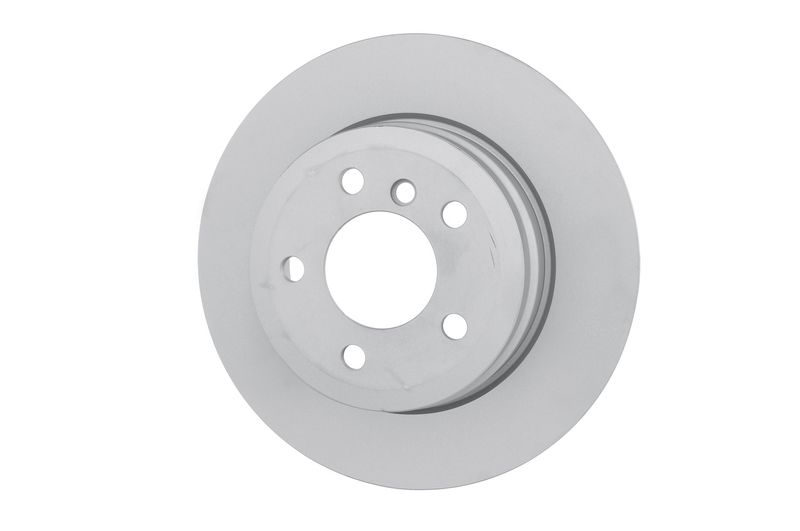

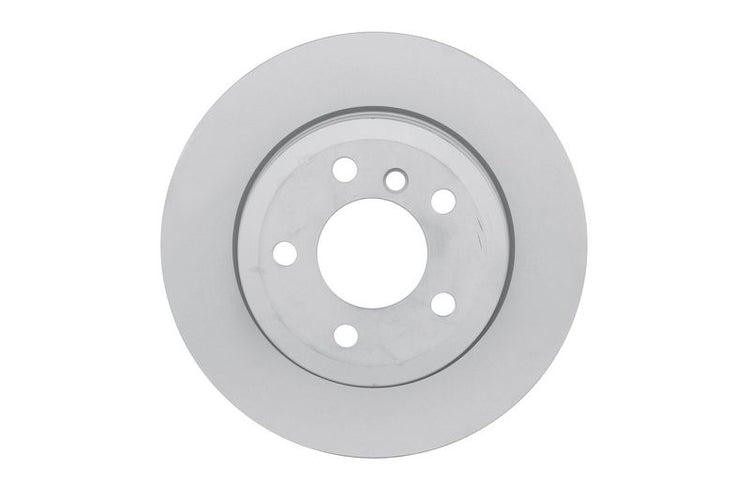

The Bosch 0986479442 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 320 mm outer diameter, 20 mm brake disc thickness, 18.4 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

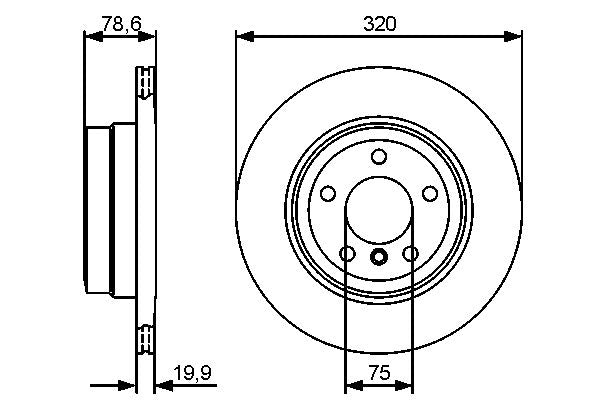

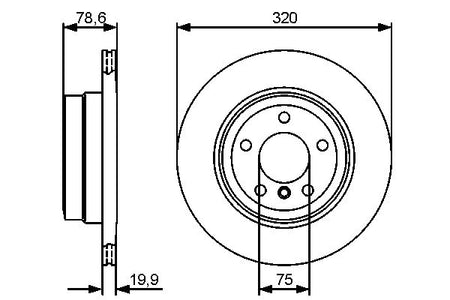

Outer Diameter [mm] : 320

Brake Disc Thickness [mm] : 20

Minimum thickness [mm] : 18.4

Height [mm] : 78.8

Bolt Hole Circle Ø [mm] : 120

Brake Disc Type : Vented

Centering Diameter [mm] : 75

Number of Holes : 5

Surface : Coated

Machining : High-carbon

fulfils ECE standard : ECE-R90

Bore Diameter up to [mm] : 16.6

APEC : DSK2601
APEC : SDK6552
BLUE PRINT : ADB114304
BORG & BECK : BBD4726
BREMBO : 09.9925.11
BREMBO : 09.9925.1S
BREMBO : 09.9925.1X
DELPHI : BG4168
Fahren : FBD6552
FEBI BILSTEIN : 36386
FTE : 9071043
FTE : 9081029
FTE : 9082603
HELLA : 8DD 355 114-001
HELLA : 8DD 355 128-761
MEYLE : 315 523 0024/PD
MINTEX : MDC2186
NAPA : NBD5335
National : NBD1527
SKF : VKBD 90442 V1
TEXTAR : 92161103
TRW : DF4854S
VALEO : 197179
VALEO : 672507

Bosch 0986479442 Brake Disc
