BOSCH

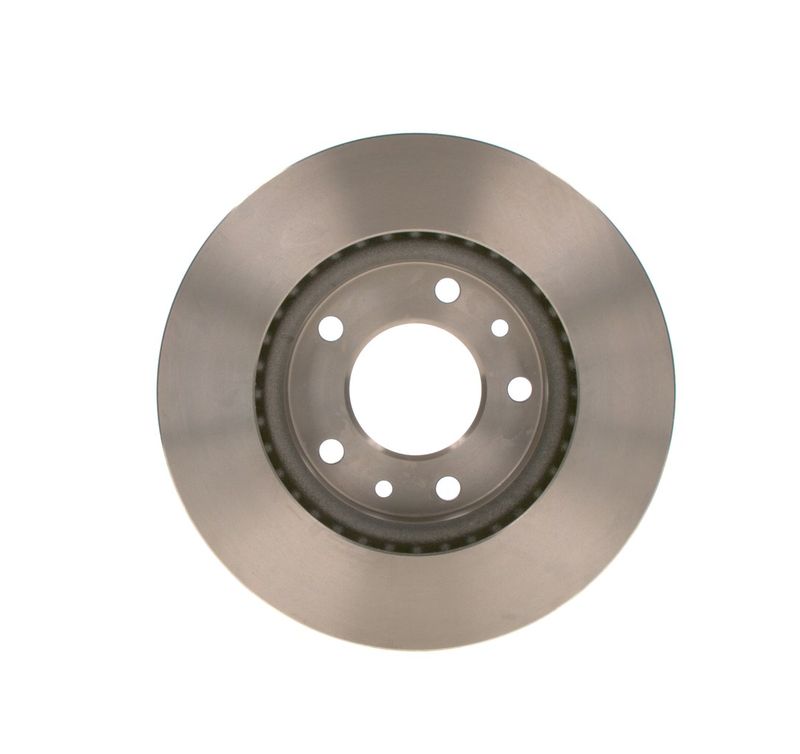

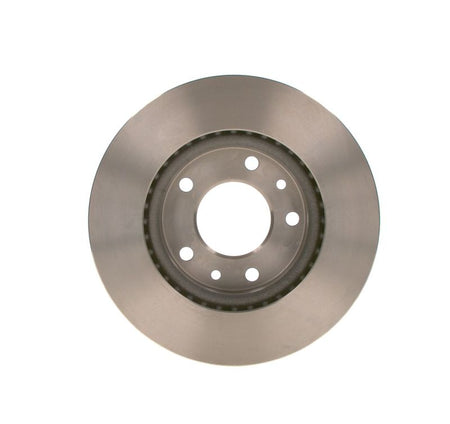

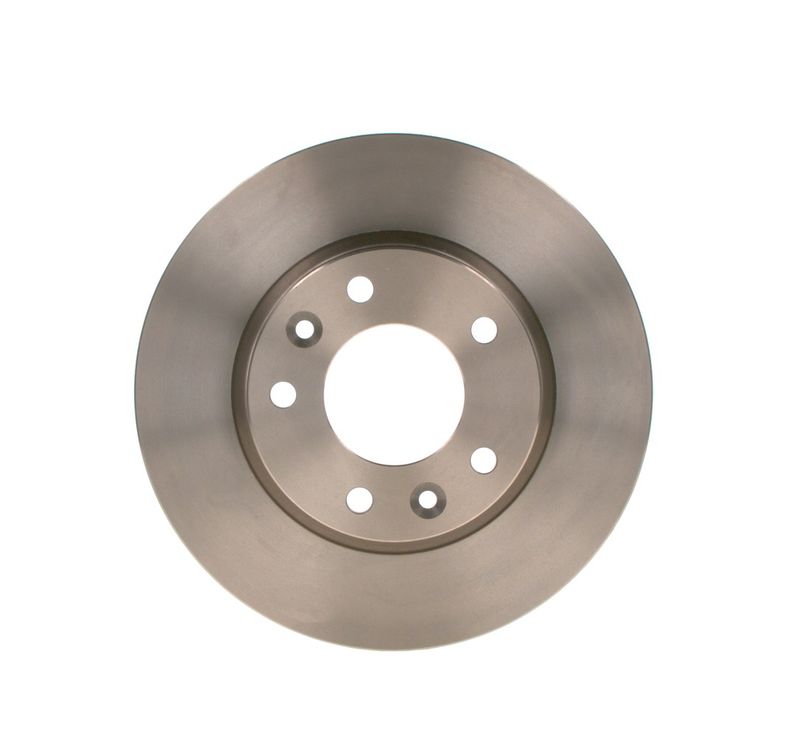

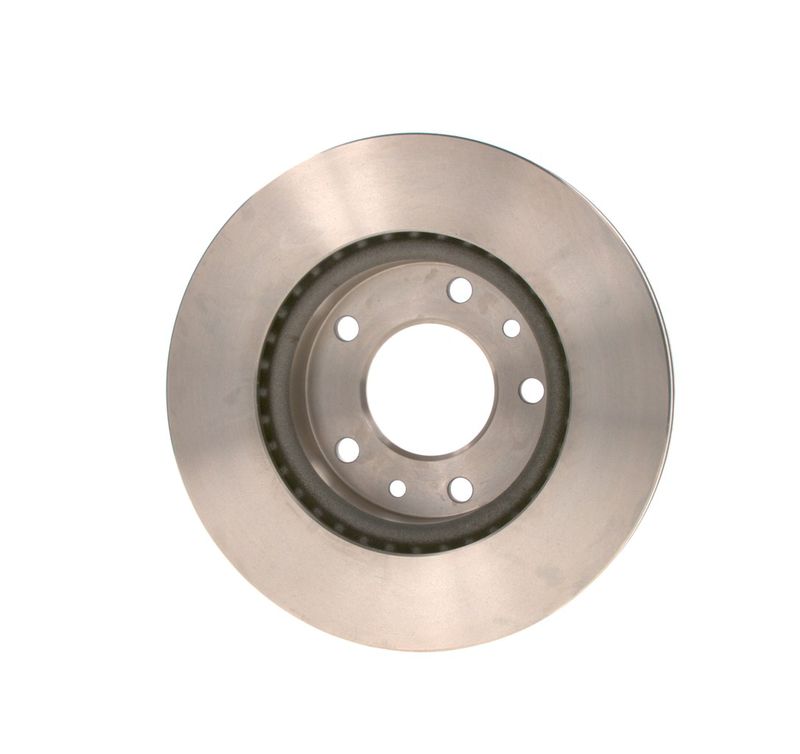

Bosch 0986479444 Brake Disc

SKU: 0986479444

Your selected vehicle

Only 2 left

Low inventory - Hurry! — Order by 17:00 for same-day dispatch

£79.11 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

KIA

SEDONA I (UP, FL)

Description	Cylinder Capacity	Horse Power	Year
2.5 V6	2497 CCM	165 HP	08/1999 - 10/2001
2.9 TDi	2902 CCM	126 HP	08/1999 - 10/2001

SEDONA Mk II (GQ)

Description	Cylinder Capacity	Horse Power	Year
2.5 V6	2497 CCM	150 HP	10/2001 - 06/2006
2.9 CRDi	2902 CCM	144 HP	10/2001 - 06/2006
2.9 TDi	2902 CCM	126 HP	08/1999 - 09/2007

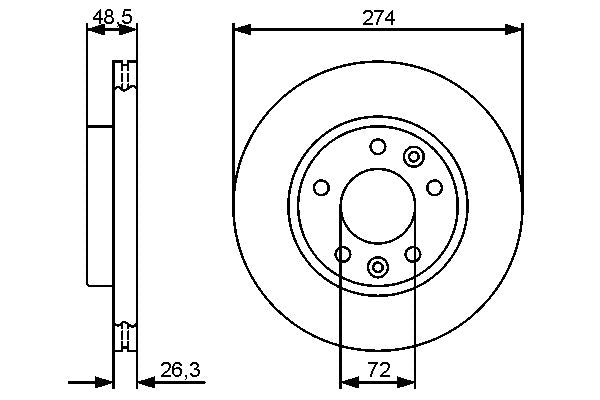

The Bosch 0986479444 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 274 mm outer diameter, 26.3 mm brake disc thickness, 24 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Outer Diameter [mm] : 274

Brake Disc Thickness [mm] : 26.3

Minimum thickness [mm] : 24

Height [mm] : 48.6

Bolt Hole Circle Ø [mm] : 114.3

Brake Disc Type : Vented

Centering Diameter [mm] : 72

Number of Holes : 5

Surface : Oiled

fulfils ECE standard : ECE-R90

Bore Diameter up to [mm] : 13.1

Bosch 0986479444 Brake Disc
