BOSCH

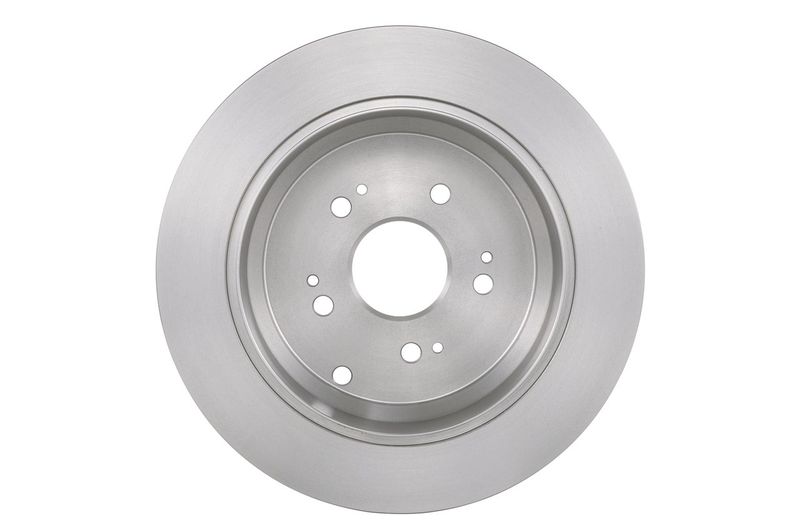

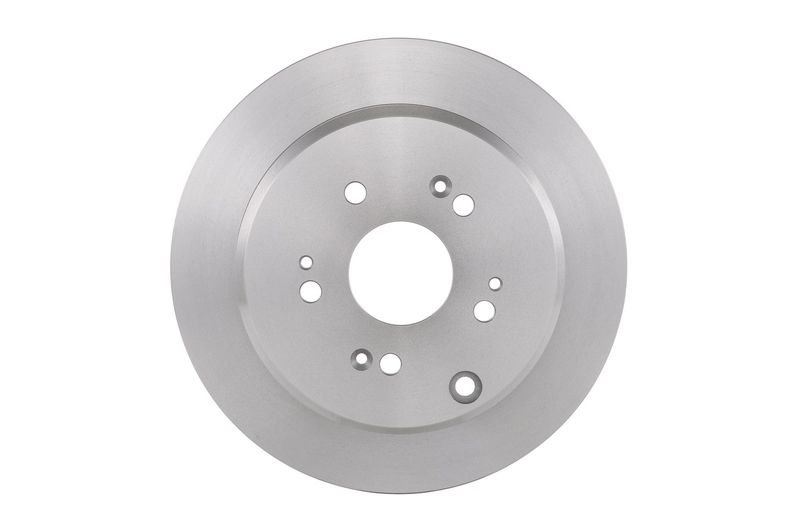

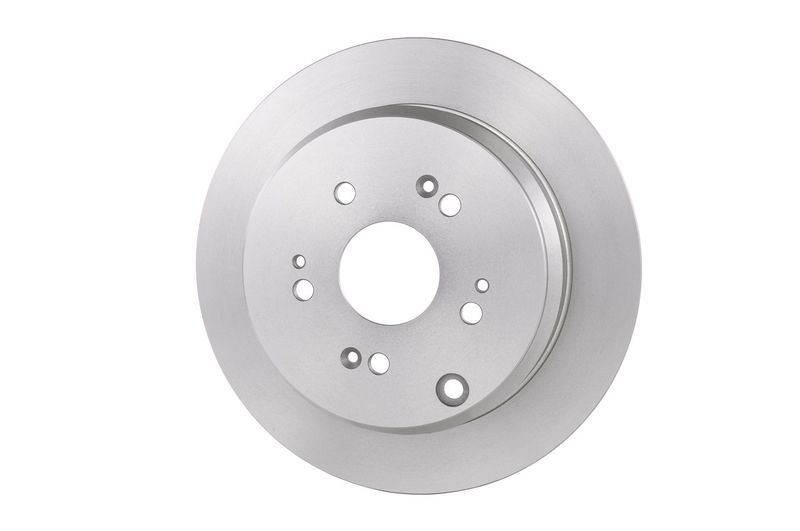

Bosch 0986479449 Brake Disc

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service

SKU: 0986479449

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 5 left

Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day

£67.71 inc. VAT

Pay in 3 interest-free payments with Klarna

Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

HONDA

CR-V Mk II (RD_)

Description	Cylinder Capacity	Horse Power	Year
2.0 (RD5)	1998 CCM	150 HP	09/2001 - 03/2007
2.2 CTDi (RD9)	2204 CCM	140 HP	02/2005 - 09/2006

CR-V III (RE_)

Description	Cylinder Capacity	Horse Power	Year
2.4 4WD (RE4)	2354 CCM	168 HP	09/2006 - 06/2012
2.0 i-VTEC 4WD (RE5, RE2)	1997 CCM	150 HP	10/2006 - 06/2012
2.4 i-VTEC 4WD (RE4)	2354 CCM	160 HP	10/2006 - 10/2012
2.4 i-Vtec 4WD (RE4)	2354 CCM	170 HP	04/2007 - 12/2012
2.0 i-VTEC (RE5, RE1)	1997 CCM	150 HP	01/2007 - 06/2012

CR-V IV (RM_)

Description	Cylinder Capacity	Horse Power	Year
2.0 (RM1)	1997 CCM	150 HP	01/2012 - 12/2018
2.4 AWD (RM4)	2354 CCM	190 HP	01/2012 - 12/2014
2.0 iVtec (RE5, RM1)	1997 CCM	155 HP	10/2012 - 12/2018

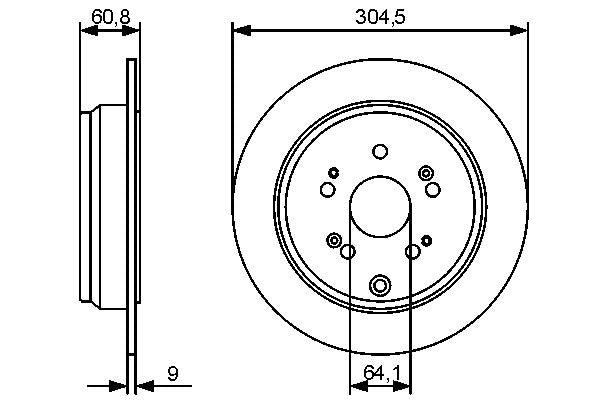

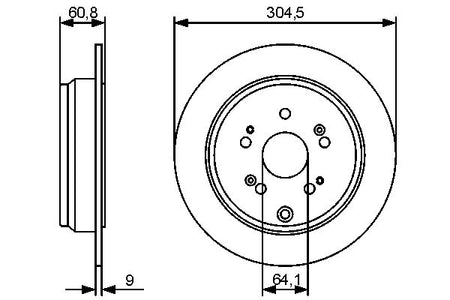

The Bosch 0986479449 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 304.5 mm outer diameter, 9 mm brake disc thickness, 7.5 mm minimum thickness, and solid disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Outer Diameter [mm] : 304.5

Brake Disc Thickness [mm] : 9

Minimum thickness [mm] : 7.5

Height [mm] : 60.7

Bolt Hole Circle Ø [mm] : 114.3

Brake Disc Type : solid

Centering Diameter [mm] : 64.15

Number of Holes : 5

Surface : Oiled

fulfils ECE standard : ECE-R90

Bore Diameter up to [mm] : 12.7
