BOSCH

Bosch 0986479456 Brake Disc

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service

SKU: 0986479456

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

In stock

Orders placed by 17:00 are usually dispatched the same working day

£113.95 inc. VAT

Pay in 3 interest-free payments with Klarna

Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

HONDA

CR-V III (RE_)

Description	Cylinder Capacity	Horse Power	Year
2.4 i-VTEC 4WD (RE7)	2354 CCM	166 HP	09/2009 - 12/2012
2.4 4WD (RE4)	2354 CCM	168 HP	09/2006 - 06/2012
2.0 i-VTEC 4WD (RE5, RE2)	1997 CCM	150 HP	10/2006 - 06/2012
2.2 i-CTDi 4WD (RE6)	2204 CCM	140 HP	01/2007 - 02/2010
2.4 (RE3)	2354 CCM	170 HP	04/2007 - 12/2012
2.4 i-VTEC 4WD (RE4)	2354 CCM	160 HP	10/2006 - 10/2012
2.2 i-DTEC 4WD (RE6)	2199 CCM	150 HP	01/2007 - 06/2012
2.4 i-Vtec 4WD (RE4)	2354 CCM	170 HP	04/2007 - 12/2012

CR-V IV (RM_)

Description	Cylinder Capacity	Horse Power	Year
2.0 (RM1)	1997 CCM	150 HP	01/2012 - 12/2018
2.4 AWD (RM4)	2354 CCM	190 HP	01/2012 - 12/2014
1.6 i-DTEC (RE6)	1597 CCM	120 HP	10/2013 - 08/2018
2.0 iVtec (RE5, RM1)	1997 CCM	155 HP	10/2012 - 12/2018
2.0 AWD (RE5, RM2)	1997 CCM	155 HP	10/2012 - 12/2018

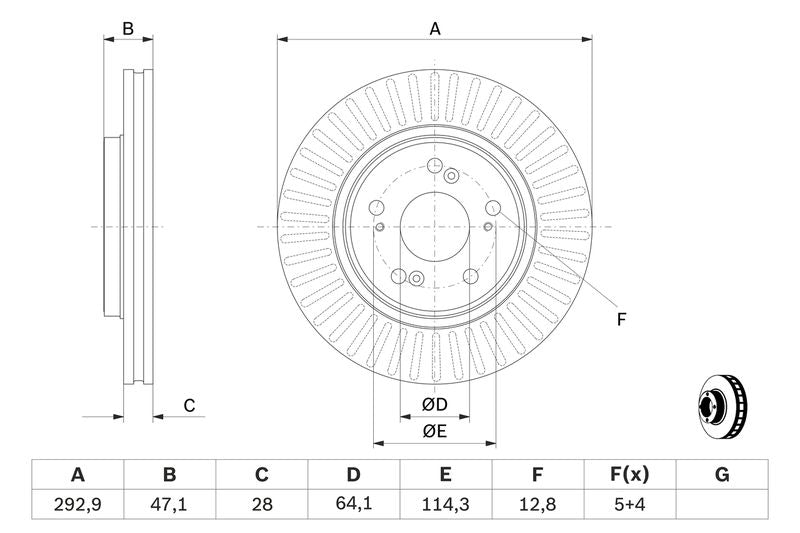

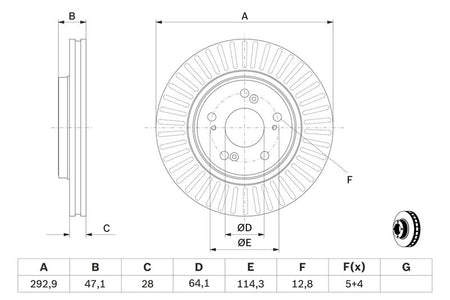

The Bosch 0986479456 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 293 mm outer diameter, 28 mm brake disc thickness, 26 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Outer Diameter [mm] : 293

Brake Disc Thickness [mm] : 28

Minimum thickness [mm] : 26

Height [mm] : 47.1

Bolt Hole Circle Ø [mm] : 114.3

Brake Disc Type : Vented

Centering Diameter [mm] : 64.1

Number of Holes : 5

Surface : Oiled

fulfils ECE standard : ECE-R90

Bore Diameter up to [mm] : 12.8
