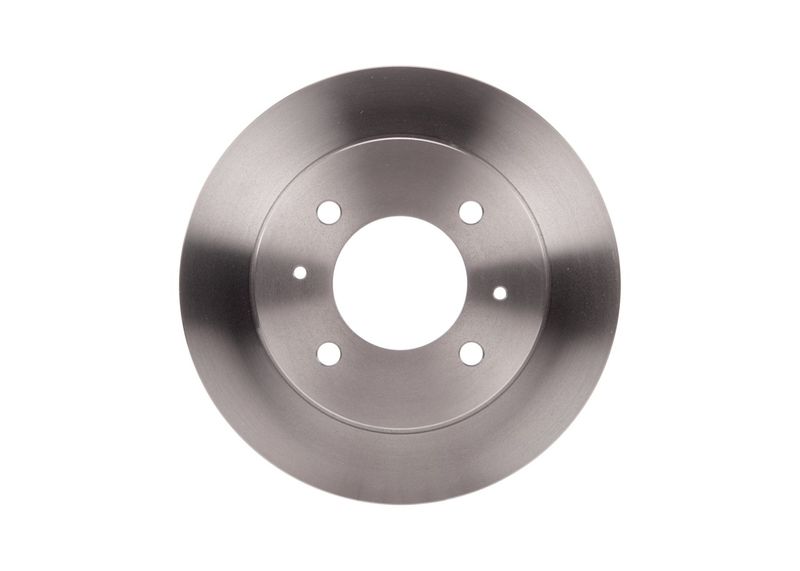

Bosch 0986479484 Brake Disc - 1
Bosch 0986479484 Brake Disc - 2

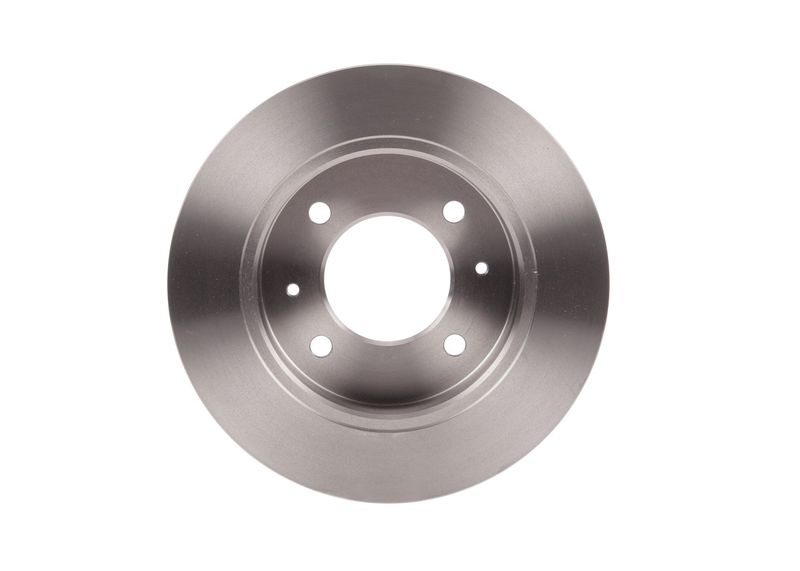

Bosch 0986479484 Brake Disc - 3
Bosch 0986479484 Brake Disc - 4

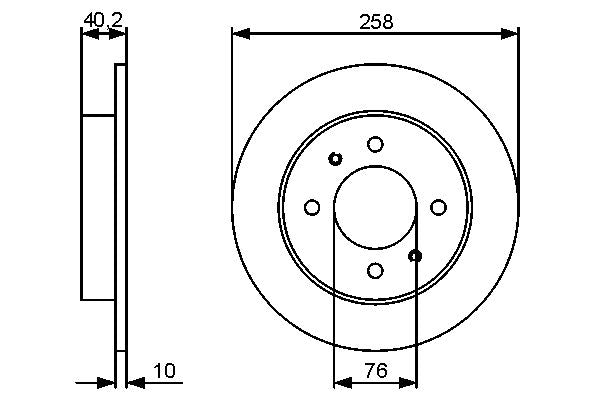

Bosch 0986479484 Brake Disc - 5

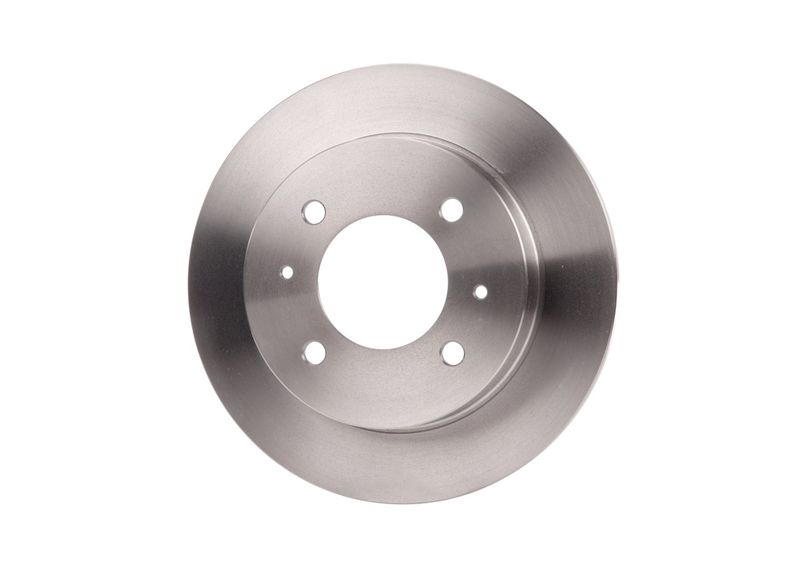

Bosch 0986479484 Brake Disc - 6
Bosch 0986479484 Brake Disc - 1
Bosch 0986479484 Brake Disc - 2
Bosch 0986479484 Brake Disc - 3
Bosch 0986479484 Brake Disc - 4
Bosch 0986479484 Brake Disc - 5
Bosch 0986479484 Brake Disc - 6
BOSCH

Bosch 0986479484 Brake Disc

SKU: 0986479484
Your selected vehicle
Only 5 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£32.40 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

HYUNDAI
COUPE I (RD)
Description Cylinder Capacity Horse Power Year
2.0 16V 1975 CCM 139 HP 08/1996 - 04/2002
1.6 16V 1599 CCM 116 HP 03/1998 - 04/2002
1.6 i 16V 1599 CCM 114 HP 12/1996 - 04/2002
2.0 16V 1975 CCM 135 HP 03/2001 - 04/2002
2.0 1975 CCM 137 HP 08/1999 - 01/2002
ELANTRA III (XD)
Description Cylinder Capacity Horse Power Year
1.6 1599 CCM 107 HP 06/2000 - 07/2006
2.0 1975 CCM 141 HP 06/2000 - 07/2006
1.8 1795 CCM 132 HP 06/2000 - 07/2006
2.0 1975 CCM 139 HP 06/2000 - 07/2006
2.0 CRDi 1991 CCM 113 HP 04/2001 - 07/2006
2.0 1975 CCM 143 HP 10/2003 - 07/2006
1.6 1599 CCM 105 HP 01/2001 - 08/2004
LANTRA   (J-1)
Description Cylinder Capacity Horse Power Year
1.5 i.e. 1468 CCM 86 HP 10/1990 - 11/1995
LANTRA Mk II (J-2)
Description Cylinder Capacity Horse Power Year
1.6 i 1599 CCM 90 HP 11/1995 - 09/2000
1.6 16V 1599 CCM 114 HP 11/1995 - 09/2000
1.8 16V 1795 CCM 128 HP 11/1995 - 09/2000
2.0 16V 1975 CCM 139 HP 08/1996 - 09/2000
1.5 12V 1495 CCM 88 HP 12/1996 - 09/2000
1.9 D 1905 CCM 68 HP 03/1998 - 09/2000
1.6 16V 1599 CCM 118 HP 06/1995 - 09/2000
LANTRA Mk II Estate (J-2)
Description Cylinder Capacity Horse Power Year
1.6 i 1599 CCM 90 HP 02/1996 - 10/2000
1.6 16V 1599 CCM 114 HP 02/1996 - 10/2000
1.8 16V 1795 CCM 128 HP 02/1996 - 10/2000
1.5 12V 1495 CCM 88 HP 04/1997 - 10/2000
2.0 16V 1975 CCM 139 HP 11/1995 - 10/2000
1.9 D 1905 CCM 68 HP 03/1998 - 10/2000
1.6 16V 1599 CCM 118 HP 06/1998 - 05/2000
LANTRA III Saloon (XD)
Description Cylinder Capacity Horse Power Year
1.6 1599 CCM 107 HP 06/2000 - 07/2006
2.0 1975 CCM 141 HP 06/2000 - 07/2006
1.8 1795 CCM 132 HP 06/2000 - 07/2006
2.0 1975 CCM 139 HP 06/2000 - 07/2006
2.0 CRDi 1991 CCM 113 HP 04/2001 - 07/2006
2.0 1975 CCM 143 HP 10/2003 - 07/2006
1.6 1599 CCM 105 HP 01/2001 - 08/2004
1.6 1599 CCM 90 HP 06/2000 - 07/2006

The Bosch 0986479484 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 257.9 mm outer diameter, 10 mm brake disc thickness, 8 mm minimum thickness, and solid disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Outer Diameter [mm] : 257.9
Brake Disc Thickness [mm] : 10
Minimum thickness [mm] : 8
Height [mm] : 40.3
Bolt Hole Circle Ø [mm] : 114.3
Brake Disc Type : solid
Centering Diameter [mm] : 76
Number of Holes : 4
Surface : Oiled
fulfils ECE standard : ECE-R90
Bore Diameter up to [mm] : 12.7
  • Vendor BOSCH
  • SKU 0986479484
  • Barcode 4047024429161
  • HYUNDAI : 58411 28300 58411 29300 58411 29310 58411 29360
  • APEC : DSK2761
  • BLUE PRINT : ADG04314
  • BORG & BECK : BBD4188
  • BORG & BECK : BBD4268
  • BREMBO : 08.9081.10
  • BREMBO : 08.9081.75
  • DELPHI : BG3070
  • FTE : 9072312
  • FTE : 9082721
  • HELLA : 8DD 355 118-111
  • MEYLE : 37-15 523 0001
  • MINTEX : MDC1366
  • National : NBD949
  • SKF : VKBD 90859 S2
  • TEXTAR : 92117103
  • TRW : DF4122
  • VALEO : 197120
  • VALEO : 673444
  • BOSCH : BD1342
