BOSCH

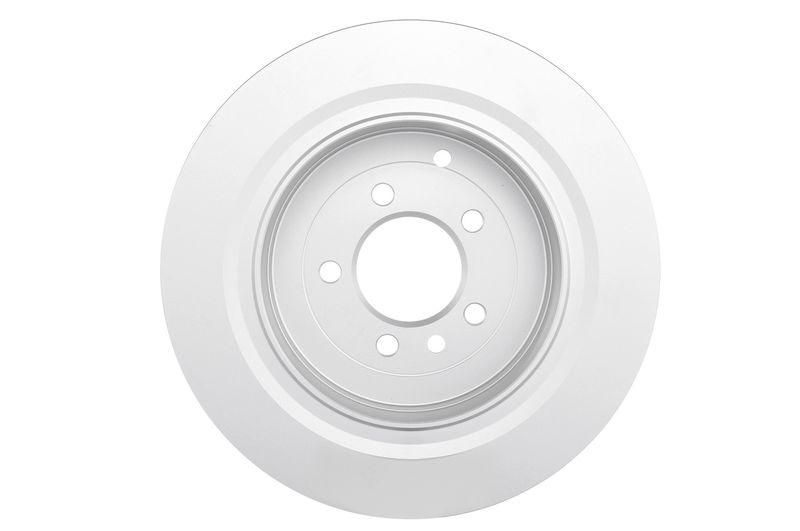

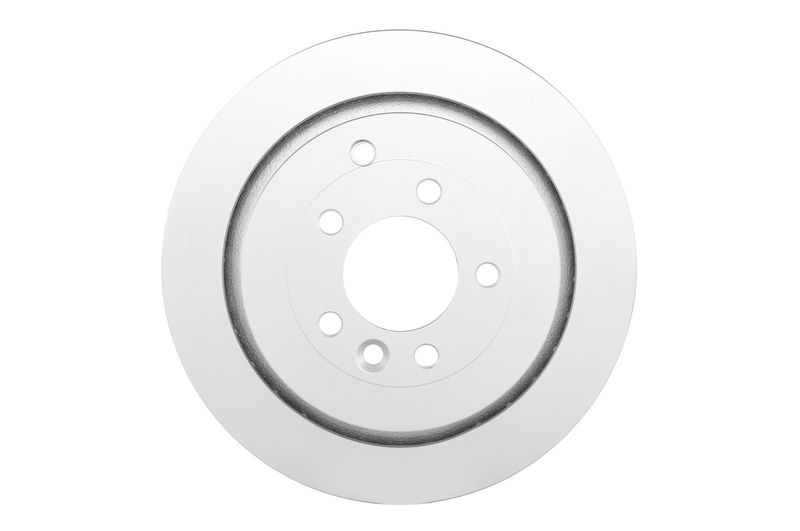

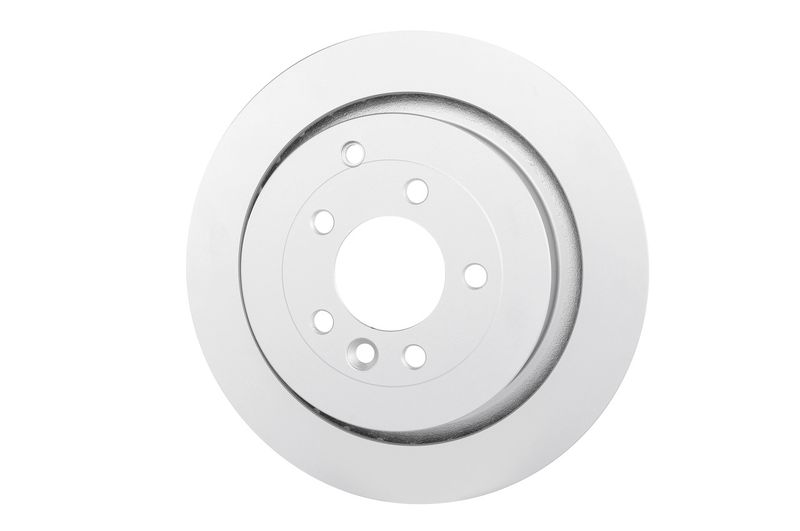

Bosch 0986479492 Brake Disc

SKU: 0986479492
Your selected vehicle
In stock
Order by 17:00 for same-day dispatch
£51.58 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

LAND ROVER
DISCOVERY III (L319)
Description Cylinder Capacity Horse Power Year
4.4 4x4 4394 CCM 299 HP 07/2004 - 09/2009
DISCOVERY IV (L319)
Description Cylinder Capacity Horse Power Year
3.0 TD 4x4 2993 CCM 211 HP 05/2010 - 12/2018
5.0 V8 4x4 4999 CCM 375 HP 09/2009 - 12/2018
3.0 4x4 2995 CCM 340 HP 08/2013 - 12/2018
3.0 SDV6 4x4 2993 CCM 256 HP 11/2009 - 12/2018
3.0 TD 4x4 2993 CCM 272 HP 09/2009 - 12/2018
3.0 TD 4x4 2993 CCM 245 HP 09/2009 - 12/2018
3.0 TD 4x4 2993 CCM 249 HP 07/2012 - 12/2018
DISCOVERY IV VAN (L319)
Description Cylinder Capacity Horse Power Year
3.0 TD 4x4 2993 CCM 211 HP 01/2011 - 12/2017
3.0 TD 4x4 2993 CCM 245 HP 01/2011 - 12/2017
3.0 TD 4x4 2993 CCM 256 HP 01/2011 - 12/2017
RANGE ROVER SPORT I (L320)
Description Cylinder Capacity Horse Power Year
3.0 D 4x4 2993 CCM 211 HP 05/2010 - 03/2013
5.0 4x4 4999 CCM 375 HP 07/2009 - 03/2013
3.0 D 4x4 2993 CCM 256 HP 06/2011 - 03/2013
4.2 4x4 4197 CCM 390 HP 02/2005 - 03/2013
4.4 4x4 4394 CCM 299 HP 02/2005 - 03/2013
3.6 D 4x4 3628 CCM 272 HP 04/2006 - 03/2013
3.0 D 4x4 2993 CCM 245 HP 09/2009 - 03/2013
3.0 D 4x4 2993 CCM 249 HP 08/2012 - 03/2013
4.2 4x4 4196 CCM 405 HP 09/2005 - 02/2010
4.2 4x4 4197 CCM 396 HP 01/2006 - 02/2010

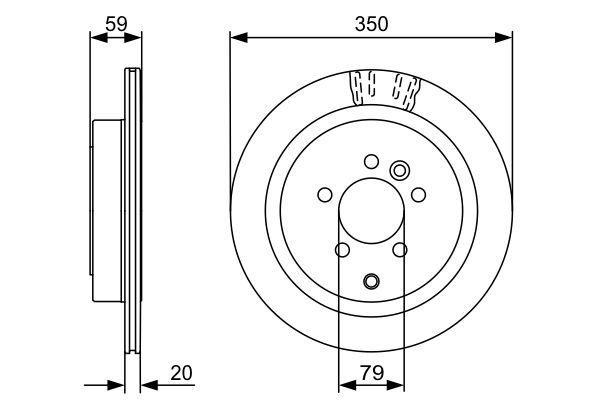

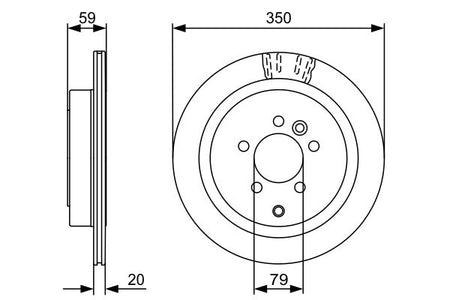

The Bosch 0986479492 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 350 mm outer diameter, 20 mm brake disc thickness, 17 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Outer Diameter [mm] : 350
Brake Disc Thickness [mm] : 20
Minimum thickness [mm] : 17
Height [mm] : 59.4
Bolt Hole Circle Ø [mm] : 120
Brake Disc Type : Vented
Centering Diameter [mm] : 79
Number of Holes : 5
Surface : Coated
fulfils ECE standard : ECE-R90
Bore Diameter up to [mm] : 15
  • Vendor BOSCH
  • SKU 0986479492
  • Barcode 4047024429239
  • ROVER : SDB 0006 44 SDB 0006 45 SDB 0006 46
  • LAND ROVER : SDB000642 SDB000643 SDB000644 SDB000645 SDB000646 SDB500160
  • APEC : DSK2374
  • APEC : SDK6270
  • BLUE PRINT : ADJ134306
  • BORG & BECK : BBD4533
  • BREMBO : 09.8876.30
  • BREMBO : 09.8876.31
  • BREMBO : 09.8876.3S
  • DELPHI : BG3925C
  • Fahren : FBD6270
  • FEBI BILSTEIN : 43845
  • HELLA : 8DD 355 118-781
  • MEYLE : 53-15 523 0016/PD
  • MEYLE : 53-83 523 0002/PD
  • MINTEX : MDC1715C
  • NAPA : NBD5009
  • National : NBD1318
  • SKF : VKBD 90233 V1
  • TEXTAR : 92147703
  • TRW : DF4342S
  • VALEO : 673347
  • BOSCH : BD1350
  • BOSCH : E1 90R-02C0506/1759
